Engine coolant · · · b) When the engine coolant temperature is 140℉ (60℃) or higher and lower than 158 ℉ (70℃)
Engine coolant flows into the sub heat exchanger ( ⑤ ) and heats refrigerant to increase
heating efficiency in heating operation. In low-temperature cooling, engine coolant enhanc-
es evaporation efficiency.

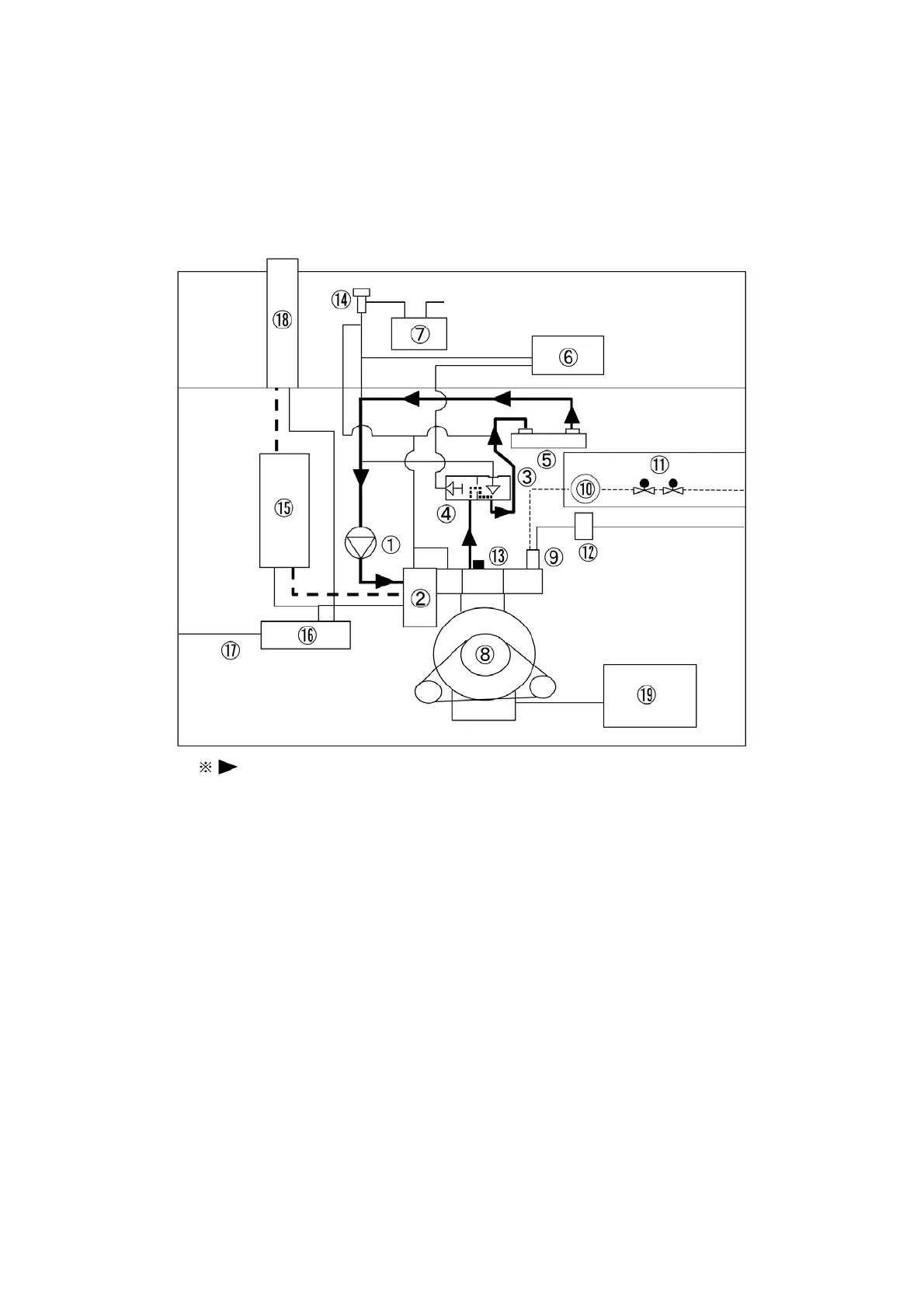

① : Engine coolant pump ⑧ : Engine ⑮ : Exhaust muffler
② : Exhaust air heat exchanger ⑨ : Gas mixer ⑯ : Exhaust water drain filter
③ : Thermostat (140 ℉ (60 ℃ ) ⑩ : Gas regulator ⑰ : Exhaust water drain hose
④ : Thermostat (158 ℉ (70 ℃ ) ⑪ : Electromagnetic gas valve ⑱ : Exhaust water drain trapper
⑤ : Sub heat exchanger ⑫ : Air filter ⑲ : Sub oil reservoir
⑥ : Radiator ⑬ : Engine coolant temperature sensor
⑦ : Engine coolant reserve tank ⑭ : Radiator cap
shows the coolant flow direction
