PERIODIC INSPECTION
2. Unscrew 6 nuts to remove the cap.
3. Remove the air filter element.
4. Clean the dust inside the cap and the case.
5. Set the new air filter element so the deeper side is
placed in the case.
6. Mount the cap so a pipe hole comes slighly to the
front, then tighten the cap with 6 nuts.
7. Attach the air intake hose, and fix the hose with a
clamp.
NOTE) Be sure to check if the clamp is attached
securely.

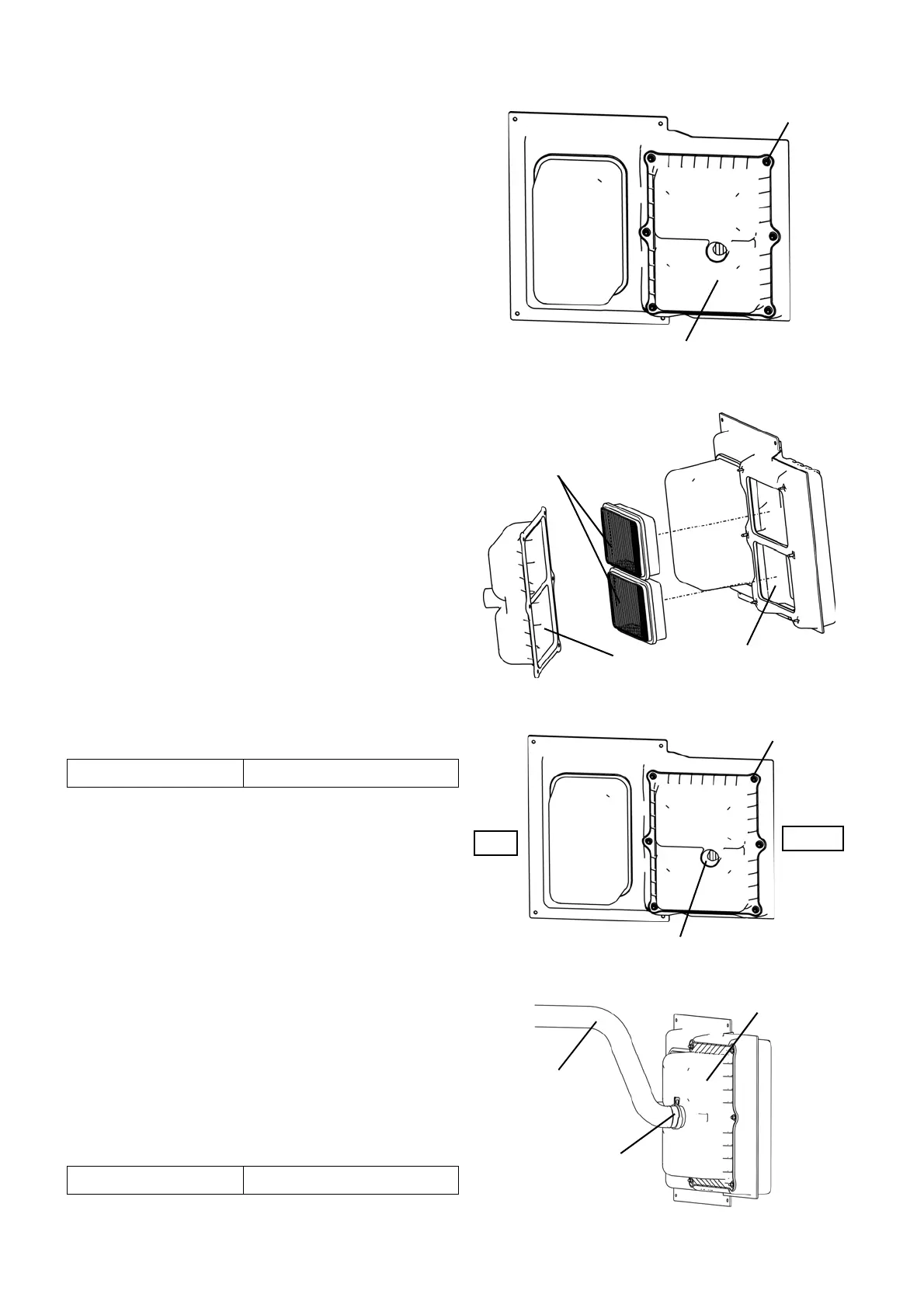

Cap
Nuts (6 pieces)
Cap
Case
Aair filter elements
Pipe hole
Nuts (6 pieces)
FRONT
REAR
Tightening torque 3.7 ± 1.1 lb·ft (5 ± 1.5 N·m)
Clamp
Air filter
Air intake hose
Replacement interval Every 3 years (10,000 hours)
