Akai MPC Touch User Manual

141
The upper half of the screen shows the waveform. The lower half shows the editing controls.

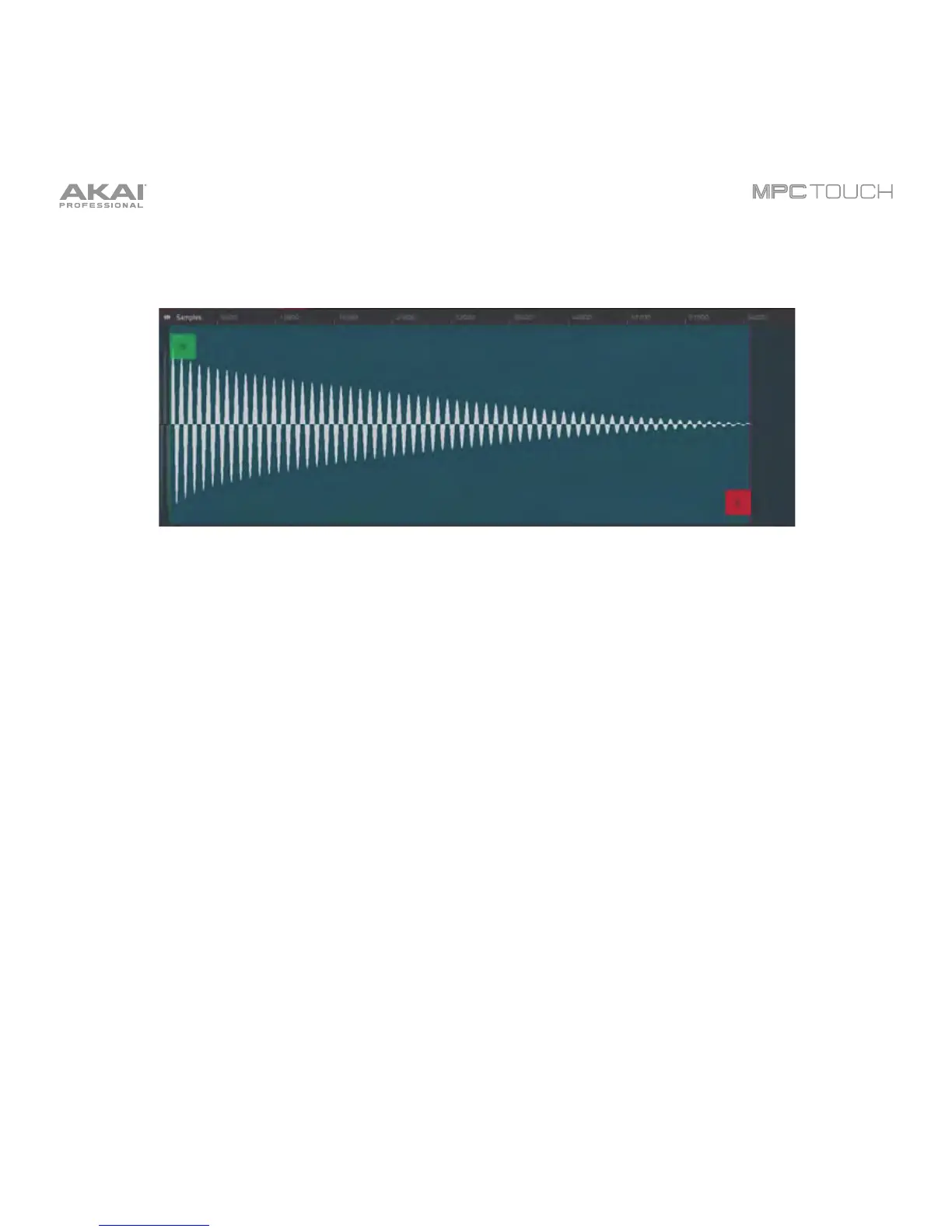

A sample waveform with a single start point and end point.
The waveform display shows the “active” section of the sample waveform. Swipe left or right on the
waveform to move through it.
Above the waveform is the timeline, shown in Samples, Time (in seconds and milliseconds), or Beats.
You can select the measurement units you want to show in the Settings.
To zoom in or out, do any of the following:
• When the magnifying-glass icon (in the upper-right corner) is selected, spread or pinch your fingers
(respectively) on the waveform.
• Tap the Zoom + or Zoom – buttons (respectively) at the bottom edge of the touchscreen.
• Turn the bottom-most Q-Link Knob in the fourth bank.
To scroll through the waveform, do either of the following:
• When the magnifying-glass icon (in the upper-right corner) is selected, swipe the waveform left or right.
• Turn the third Q-Link Knob in the fourth bank.

Akai MPC Touch Specifications

General

Display type	LED
Built-in display	Yes
Product color	Black
USB direct playback	-
Built-in optical drive	No
Audio (L/R) in	2
Minimum RAM	4 GB
Minimum processor	Dual Core
Minimum processor speed	2.5 GHz
Minimum storage drive space	2048 MB
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8
