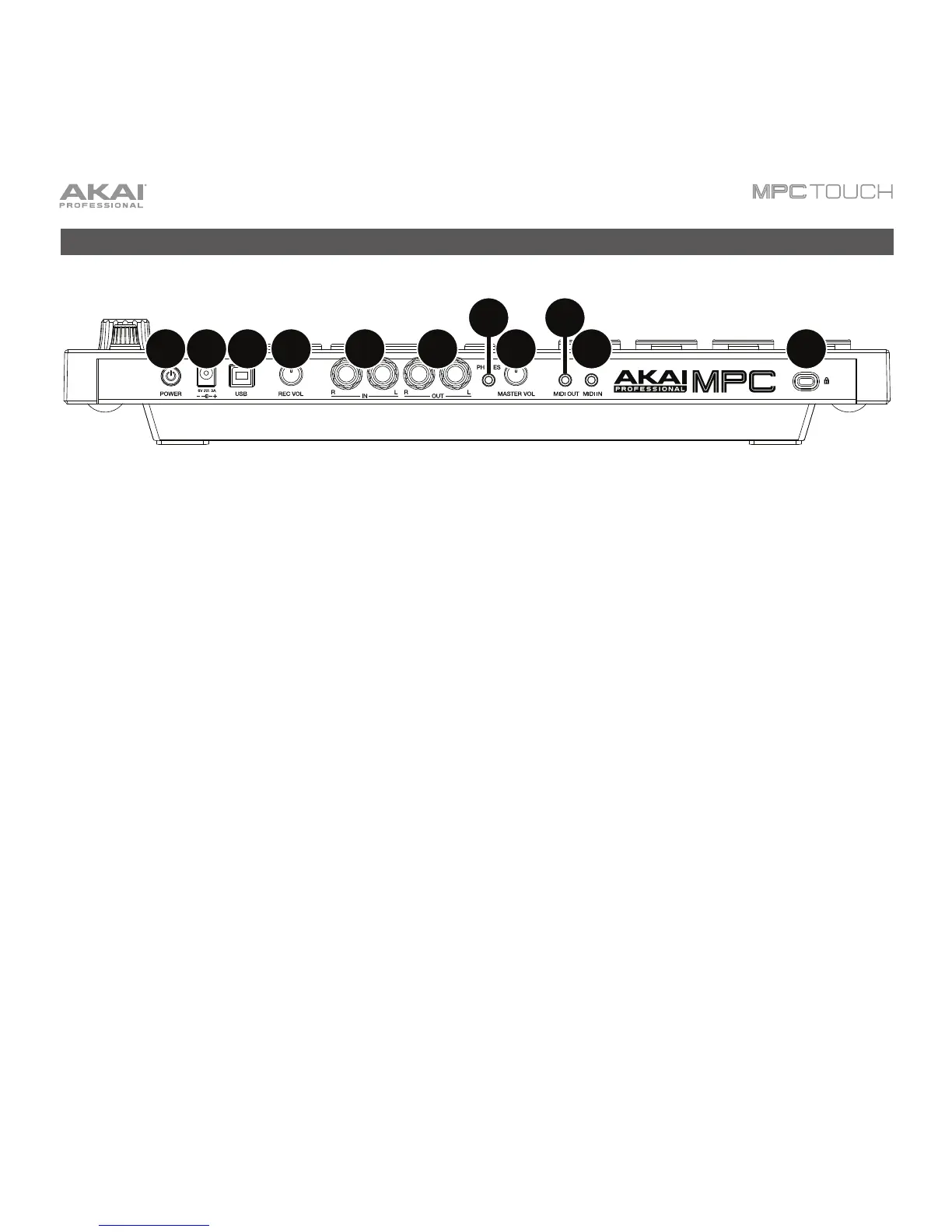

Rear Panel
1
2
34 56
7
89
10 11
1. Power Input: Use the included power adapter to connect MPC Touch to a power outlet.
Alternatively, you can power MPC Touch via the USB port only, but the display will be disabled.
2. Power Switch: Turns MPC Touch’s power on/off.
3. USB Port: Use the included USB cable to connect this high-retention-force USB port to an available
USB port on your computer. This connection allows MPC Touch to send/receive MIDI and audio
data to/from the MPC software.
You can power MPC Touch via the USB port only, but the display will be disabled.
4. Rec Vol: Turn this knob to adjust the volume of the inputs.
5. Master Vol: Turn this knob to adjust the volume of the outputs and phones output.
6. Inputs: Use standard 1/4” (6.35 mm) TRS cables to connect these inputs to an audio source (mixer,
synthesizer, drum machine, etc.). In the software, you can select whether you want to record either
channel or both channels in stereo or in mono.
7. Outputs: Use standard 1/4” (6.35 mm) TRS cables to connect these outputs to your monitors, mixer,
etc.). In the software, you can select whether you want to record either channel or both channels in
stereo or in mono.
8. Phones: Connect standard 1/8” (3.5 mm) stereo headphones to this output.

Akai MPC Touch Specifications

General

Display type	LED
Built-in display	Yes
Product color	Black
USB direct playback	-
Built-in optical drive	No
Audio (L/R) in	2
Minimum RAM	4 GB
Minimum processor	Dual Core
Minimum processor speed	2.5 GHz
Minimum storage drive space	2048 MB
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8
