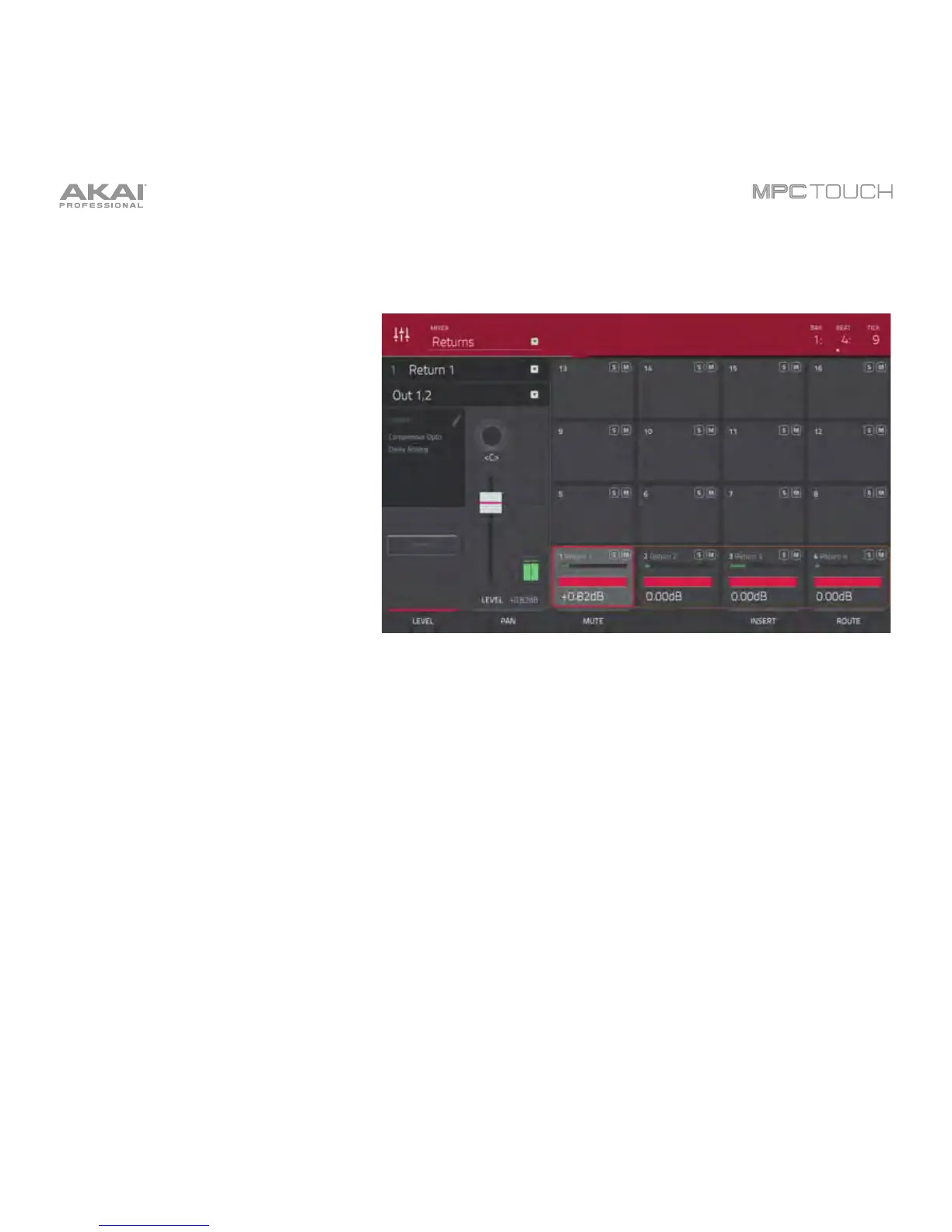

Return Mixer
Pads and programs can each be sent
to up to 4 send channels. Their audio
signals will be routed to the send
channels at their designated send
levels. After being processed by the
effect(s) on those channels, their
signals are then sent back based on
their return settings (levels, panning,
etc.). This view displays the 4 return
channels. The return mixer shows
levels, panning, mute states, insert
effects, and routing for all used tracks.
To view a specific setting on all
returns, tap the Level, Pan, Mute,
Insert, or Route button on the bottom
edge of the touchscreen. You can tap
the Insert button multiple times to
cycle through the four available slots.
When a return is selected, you can view and adjust all of its settings in the left side of the touchscreen
rather than using the tab buttons at the bottom edge.
When viewing the return channel strip:
• The first field shows the current return number, which you can change.
• The second field shows where the return is routed, which you can change.
• The Inserts field shows any enabled or disabled effects for that return. Tap the pencil icon to open
a window where you can change and enable or disable the effects.
• To mute the return, tap Mute.
• To change the panning or level of the program, adjust the pan knob or Level slider.

Akai MPC Touch Specifications

General

Display type	LED
Built-in display	Yes
Product color	Black
USB direct playback	-
Built-in optical drive	No
Audio (L/R) in	2
Minimum RAM	4 GB
Minimum processor	Dual Core
Minimum processor speed	2.5 GHz
Minimum storage drive space	2048 MB
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8
