Publication 1394-5.0 — May 2000

Troubleshooting 9-29

3. Place the axis module on its side so you can locate the fan

housing.

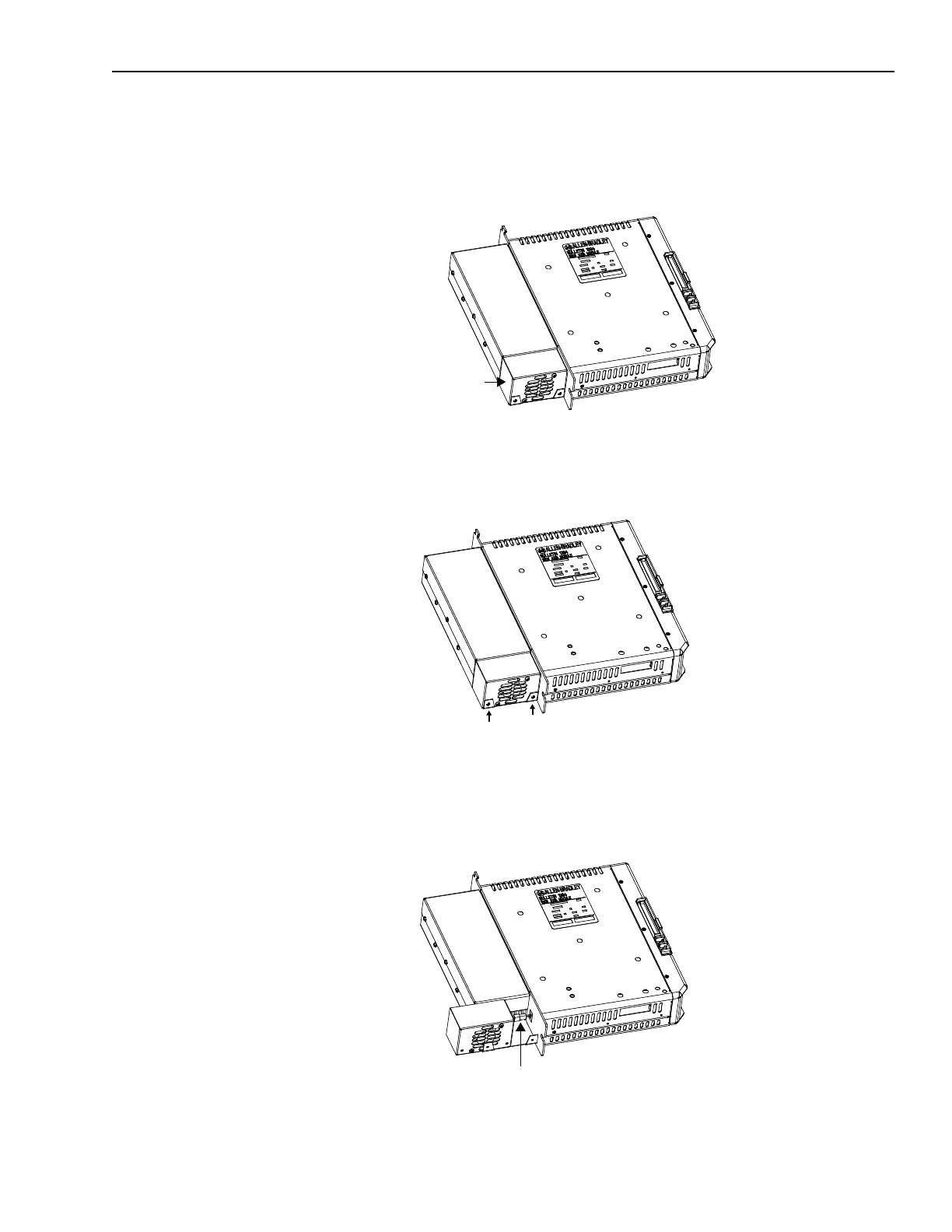

Figure 9.10

Fan Housing on Axis Module

4. Remove the screws that hold the fan housing to the axis module.

Figure 9.11

Fan Housing Screws

5. Gently slide the fan housing out a short distance until you see the

fan plug.

Figure 9.12

Fan Plug

Fan Housing

Screw

Fan Plug
