Publication 1394-5.0 — May 2000
Overview 1-9

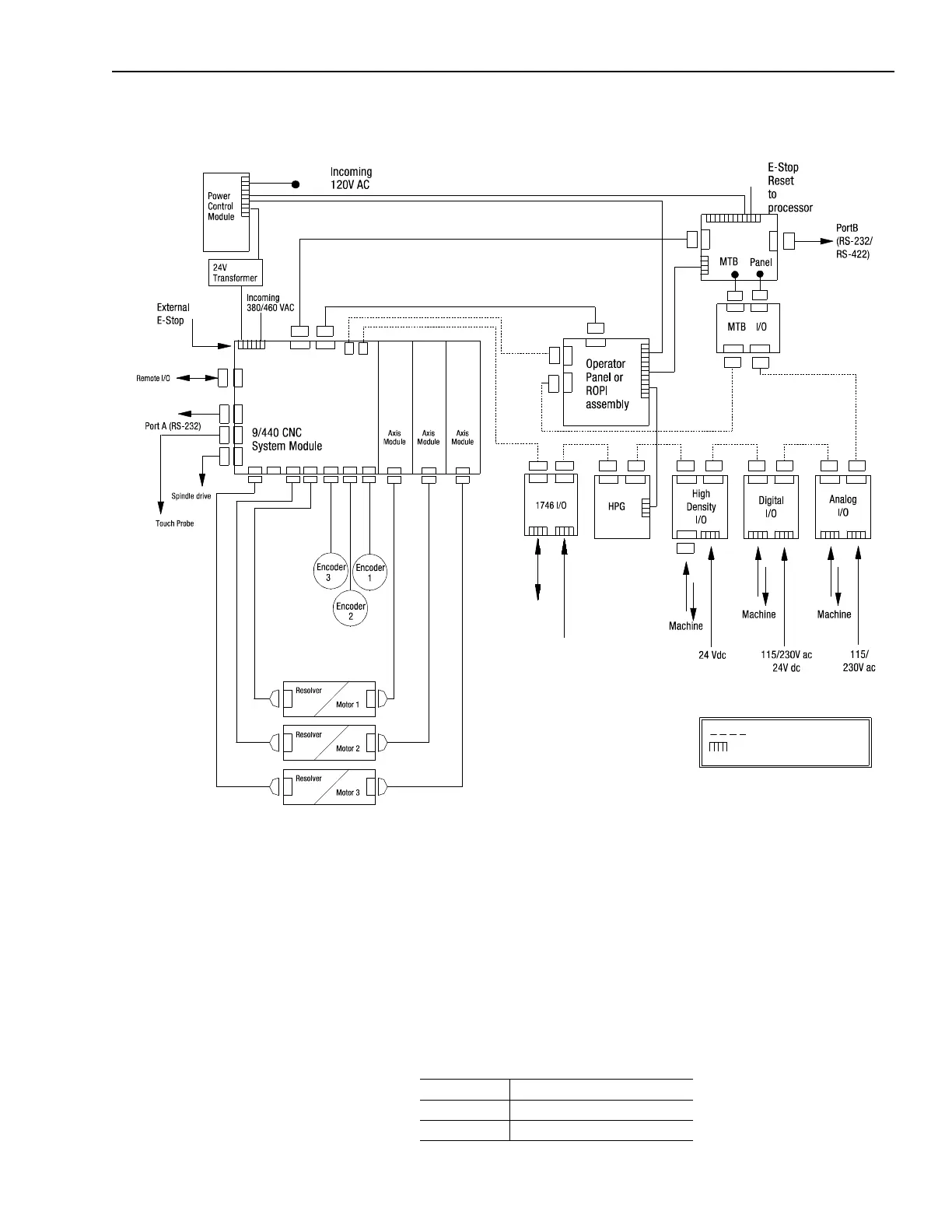

Figure 1.6
9/440 System
What is a 1394 System?
The 1394 system consists of the following components (catalog number
appears in parenthesis):
• One System Module (1394x-SJTxx-x)
• One to four Axis Modules (1394x-AMxx-xx)
• One to four servo motors (1326Ax-Bxxxx)
• One to four power and feedback cables
Also available are the DC Link Module (1394-DCLM) and Drive
Interface Module (1394-DIM).
Terminal type connection
Optical signal cable
The: Is used:
1394-DCLM In addition to the axis module(s)
1394-DIM In place of an axis module.
