Installing Your 1394 (applies to all systems) 2-13
Shunt Module Mounted Outside the Cabinet

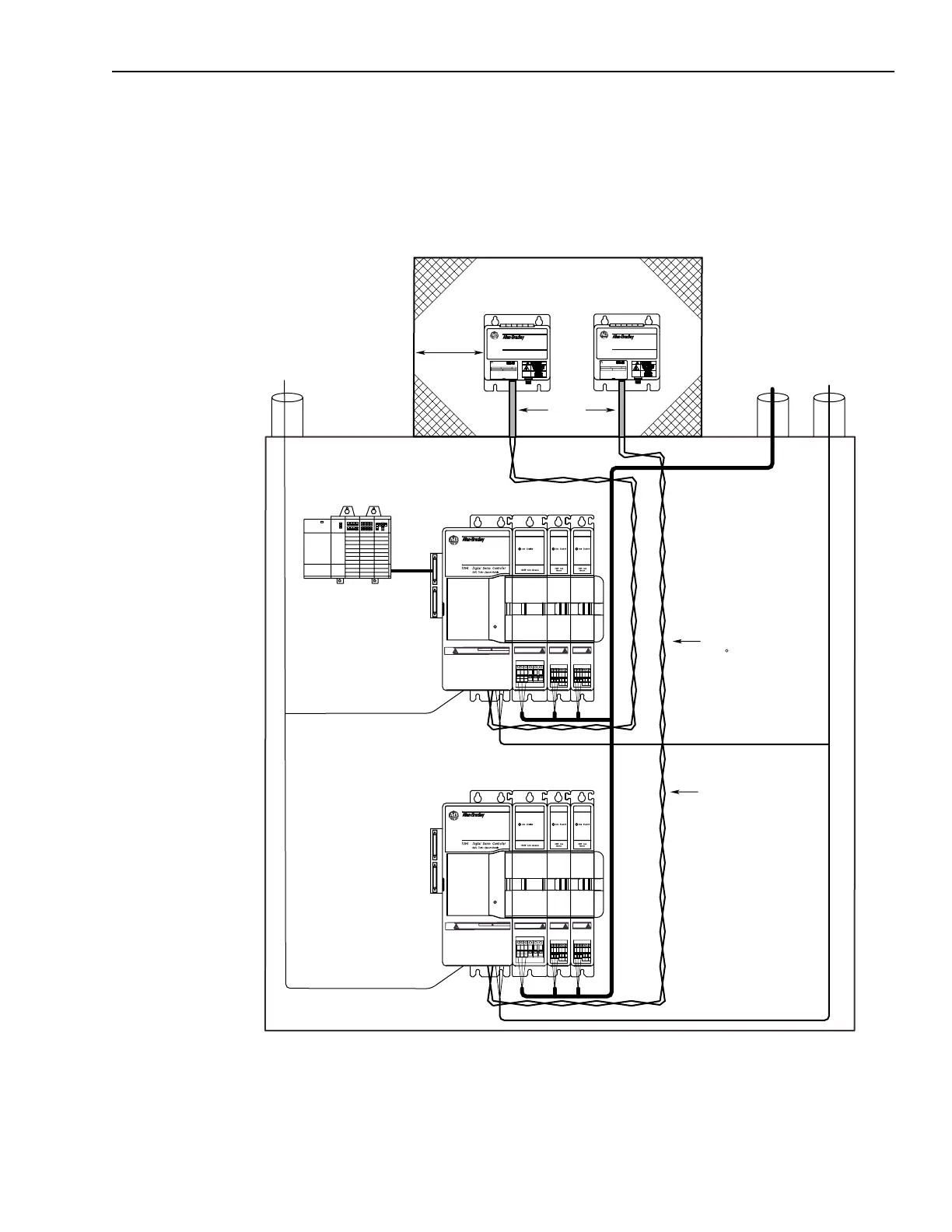

The illustration below details the proper position and cable routes for
mounting the shunt module outside the cabinet.
Figure 2.13
Shunt Module Mounted Outside of the Cabinet
Status
Status
Low voltage
Communications
Control I/O wiring
Motor feedback cables
360/480V
AC power
Always separate all low voltage signal
wiring from high voltage power wiring to
reduce affects of EMI and RFI.
Motor power
cables
Customer-supplied
metal enclosure (optional)
Metal
conduit
155 mm (6.1 in.) of
clearance on all sides
of the shunt module
minimum
Twisted conductors
(2 twists per foot) min. or
a shielded twisted pair
1394 Digital Servo Controller
300W Shunt Module
BULLETIN 1394 300W SHUNT MODULE
ALLEN-BRADLEY
FOR USE WITH 1394-SJT22-X SYSTEM MODULE
CAT. PART SER.
INPUT DC INPUT AC
FOR FUSE REPLACEMENT USE:
BUSSMAN CAT. NO.
R
1394 Digital Servo Controller
300W Shunt Module
BULLETIN 1394 300W SHUNT MODULE
ALLEN-BRADLEY
FOR USE WITH 1394-SJT22-X SYSTEM MODULE
CAT. PART SER.
INPUT DC INPUT AC
FOR FUSE REPLACEMENT USE:
BUSSMAN CAT. NO.
R
8 AWG (8.4 mm
2
),
105 C, 600V wire
Max. Length 3.05 m
(10 ft) for each wire
Shielding is recommended
for reducing the effects
of EMI and RFI.
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
