A-24 Specifications

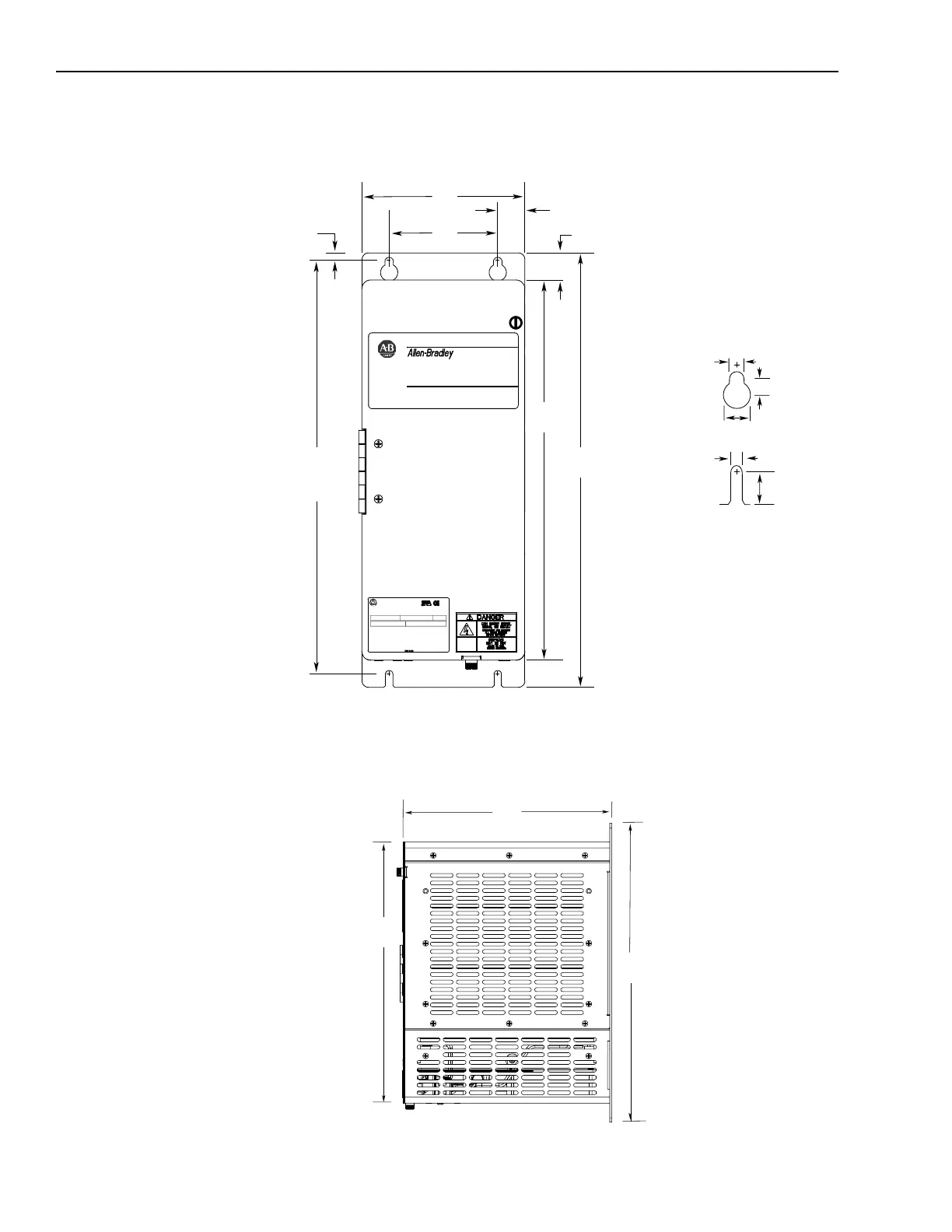

Figure A.15
1394-SR-36A and -36AF Front View Dimensions
Figure A.16
1394-SR-36A and -36AF Side View Dimensions
400
(15.75)
385.0
(15.16)
(fastener location)
350
(13.78)
8
(0.32)
150
(5.91)
100
(3.94)
25
(0.98)
24.8
(0.98)
All Slots Accept M6 or 1/4-20 Mtg. Screws
Depth = 280 (11.02)
Mounting Hole Detail
Dimensions are in millimeters and (inches)
8.0 (0.31)
10.1 (0.40)
15.9 (0.63)
12.0 (0.47)
Dimension shown is for mounting hardware
location and does not reflect the location of
the lower slot radius.
BULLETIN 1394 3600W SHUNT MODULE
ALLEN-BRADLEY
FOR USE WITH 1394-SJT22-X SYSTEM MODULE
CAT. PART SER.
INPUT DC INPUT AC
FOR FUSE REPLACEMENT USE:
BUSSMAN CAT. NO.
R
1394 Digital Servo Controller
3600W Shunt Module
1
1
400
(15.75)
350
(13.78)
280
(11.01)
Dimensions are in millimeters and (inches)
