4-18 Wiring 1394 GMC and GMC Turbo Systems

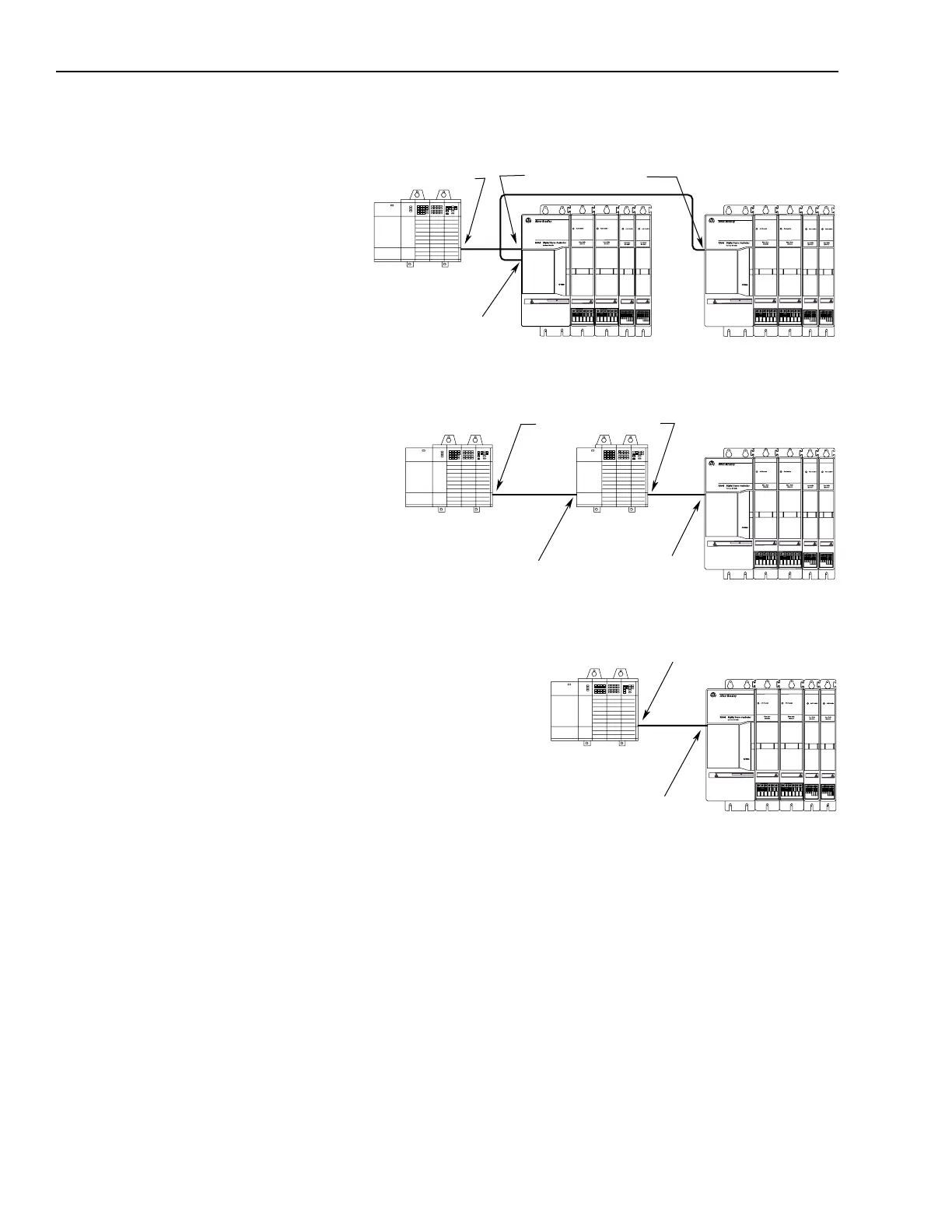

Figure 4.17
Configurations for Connecting a GMC Turbo to an SLC
1
Use cable 1746-C7 or 1746-C9 to connect the 1394x-SJTxx-T to the SLC.
Important: The figure above shows connection information only
and does not imply a specific mounting configuration.
SLC right side connector
SLC right side connectors
SLC right side connector
1394 SLC IN connector
1394 SLC IN connector
1394 SLC IN connectors
1394 SLC OUT connector
SLC left side connector
1746 Rack with
SLC 5/03, 5/04, or 5/05
1746 Rack with
SLC 5/03, 5/04, or 5/05
1746 Rack with
SLC 5/03, 5/04, or 5/05
1746 Rack
1394 GMC Turbo System
1
1
1
1
1
1394 GMC Turbo System
1394 GMC Turbo System
1394 GMC Turbo System
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
