Allen-Bradley 160-DN2 User Manual

Publication 0160-5.18 - June 2003
6-24 Using 160-DN2 with DeviceNet Scanner
Using Explicit Messaging
(Continued)

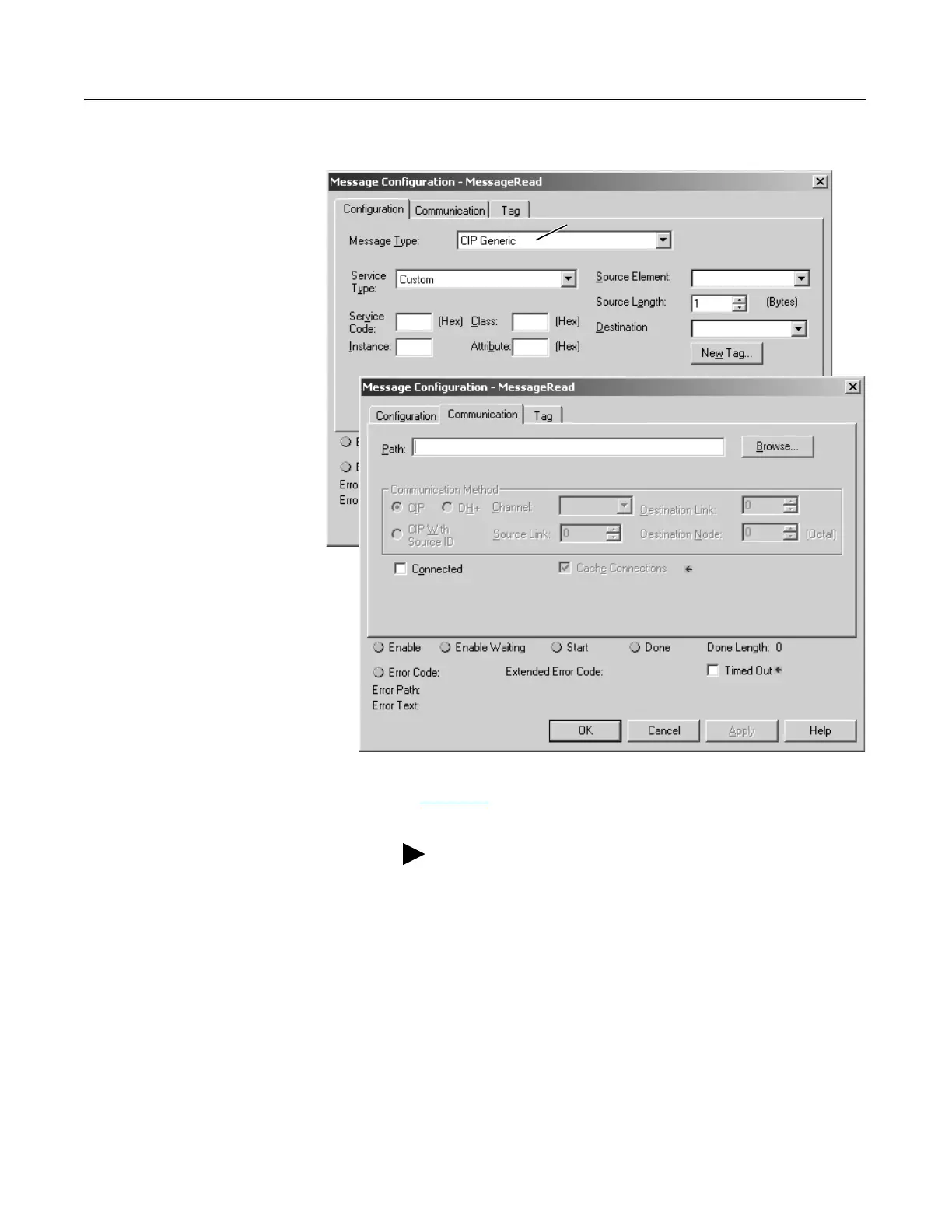

Figure 6.17
ControlLogix Message Format in RSLogix 5000
See Page 6-25 for a description of the data required for each box (1 – 7).
➊
➋
➌
➍
➎
➐
➑
➏
➒
➓
TIP: To display the Message Configuration dialog box in
RSLogix 5000, add a message instruction, create a tag for the
message (properties: base tag, MESSAGE data type,
controller scope), and click the blue box inside the message.
