– Disable — Rate Limit is disabled.
• Ingress Rate Limit — Indicates the traffic limit for the port.
• Egress Shaping Rates — Configure the traffic shaping type. The possible field values are:
– Committed Information Rate (CIR) — Defines CIR as the queue shaping type. The possible value range
is 4096 -1,000,000,000 bits per second.
– Committed Burst Size (CBS) — Defines CBS as the queue shaping type. The possible value range is
4096-16,000,000 bytes.
– None — Indicates that a queue shaping type is not defined. This is default value.
2. Select the port/unit or trunk.
3. Select the interfaces to configure.
4. Click Modify. The Bandwidth Configuration Page opens:

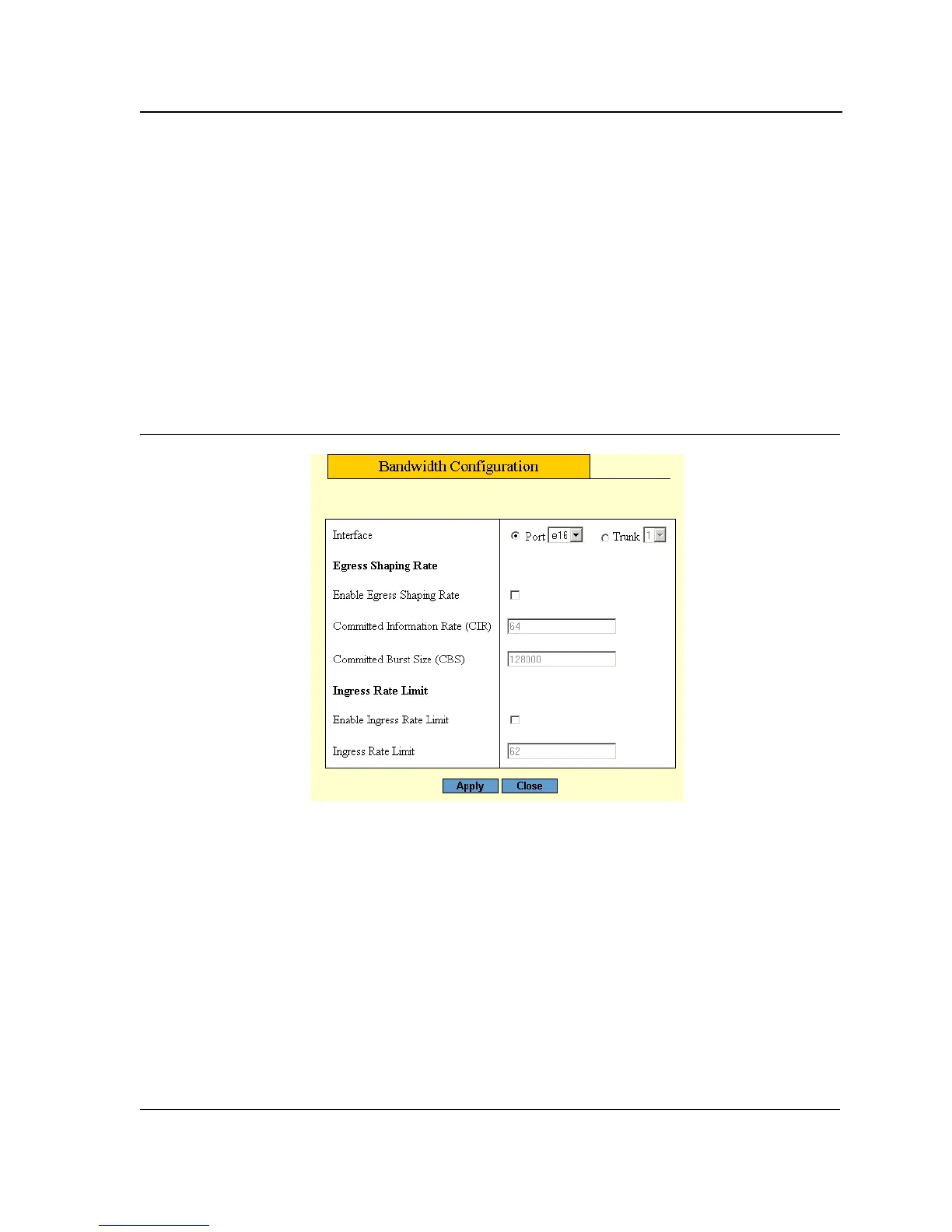

Figure 90: Bandwidth Configuration Page
5. Define the Interface, Committed Information Rate, Egress Shaping Rate on Selected Port, Committed Burst
Size, Ingress Rate Limit Status, and Ingress Rate Limit fields.
6. Click Apply. The bandwidth information is saved and the device is updated.
