Configuring Classic Spanning Tree
This section contains the following topics:
• Defining STP Properties
• Defining STP Interfaces
Defining STP Properties
The Spanning Tree Page contains parameters for enabling and configuring STP on the device.
To enable STP on the device:
1. Click Layer 2 > Spanning Tree (STP). The Spanning Tree Page opens:

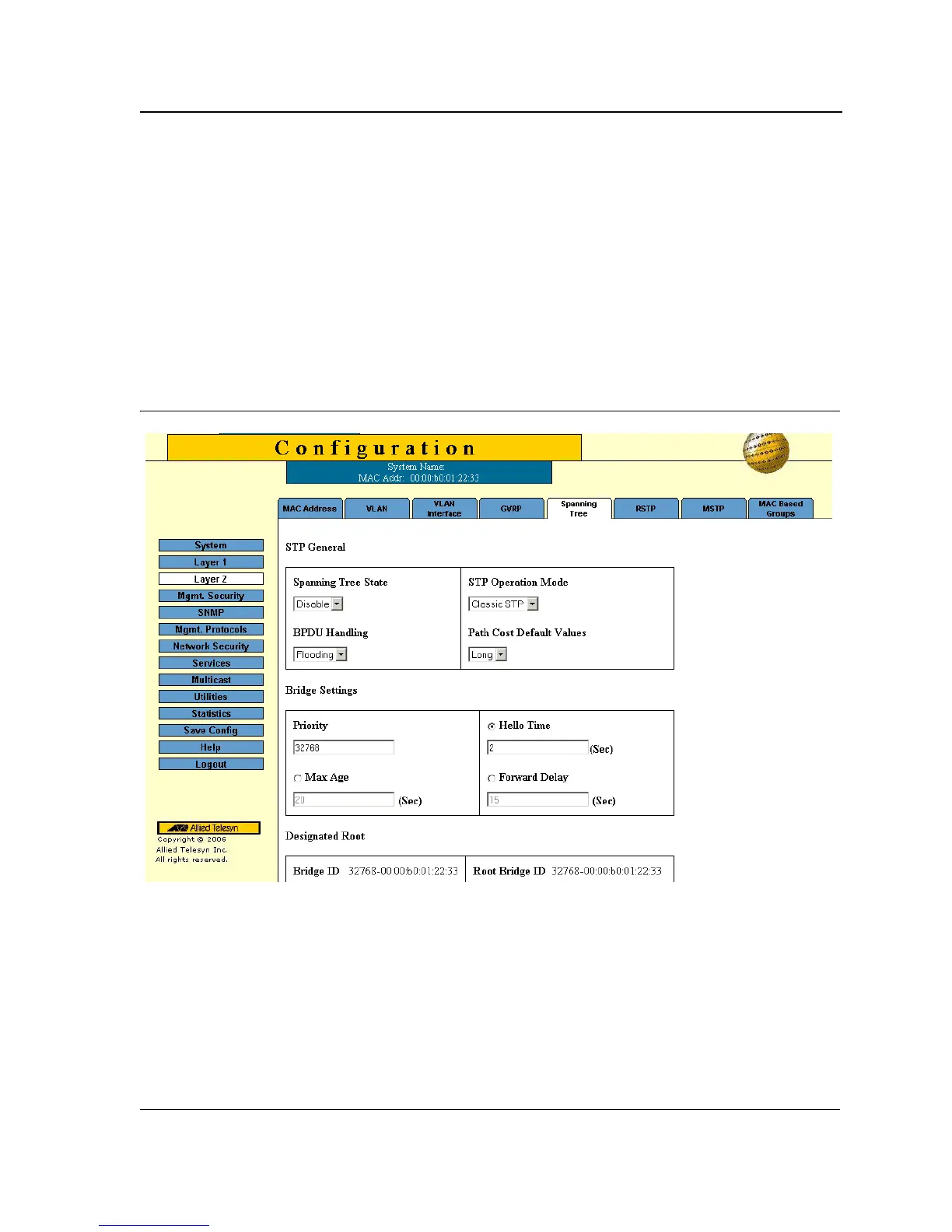

Figure 54: Spanning Tree Page
The STP General section of the Spanning Tree Page contains the following fields:
• Spanning Tree State — Indicates whether STP is enabled on the device. The possible field values are:
– Enable — Enables STP on the device.
– Disable — Disables STP on the device.
• STP Operation Mode — Specifies the STP mode that is enabled on the device.
The possible field values are:
– Classic STP — Enables Classic STP on the device. This is the default value.
– Rapid STP — Enables Rapid STP on the device.
To Next Page
