Viewing Optical Transceivers
The Optical Transceivers Page allows network managers to perform tests on Fiber Optic cables. Optical
transceiver diagnostics can be performed only when the link is present.
To view transceiver diagnostics:
1. Click Utilities > Optical Transceivers. The Optical Transceivers Page opens:

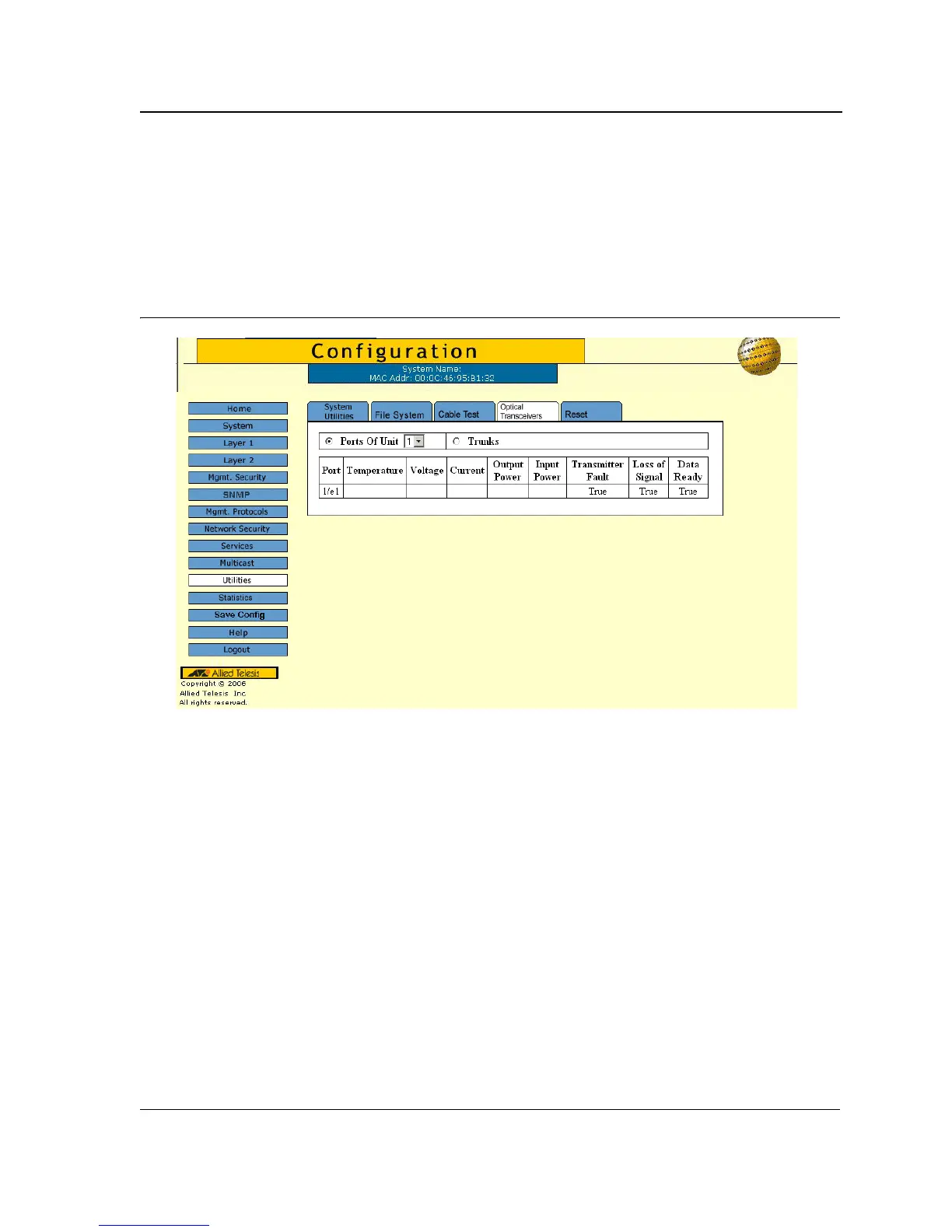

Figure 95: Optical Transceivers Page
The Optical Transceivers Page contains the following fields:
• Ports of Unit — Indicates the unit port IP on which the cable is tested.
• Trunks — Indicates the LAG on which the cable is tested.
• Port — Displays the port IP address on which the cable is tested.
• Temperature — Displays the temperature (
o
C) at which the cable is operating.
• Voltage — Displays the voltage at which the cable is operating.
• Current — Displays the current at which the cable is operating.
• Output Power — Indicates the rate at which the output power is transmitted.
• Input Power — Indicates the rate at which the input power is transmitted.
• Transmitter Fault — Indicates if a fault occurred during transmission.
• Loss of Signal — Indicates if a signal loss occurred in the cable.
• Data Ready — Indicates the transceiver has achieved power up and data is ready.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
