Defining Port Settings
The Port Settings Page contains fields for defining port parameters.
To define port general settings:
1. Click Layer 1 > Port Settings. The Port Settings Page opens:

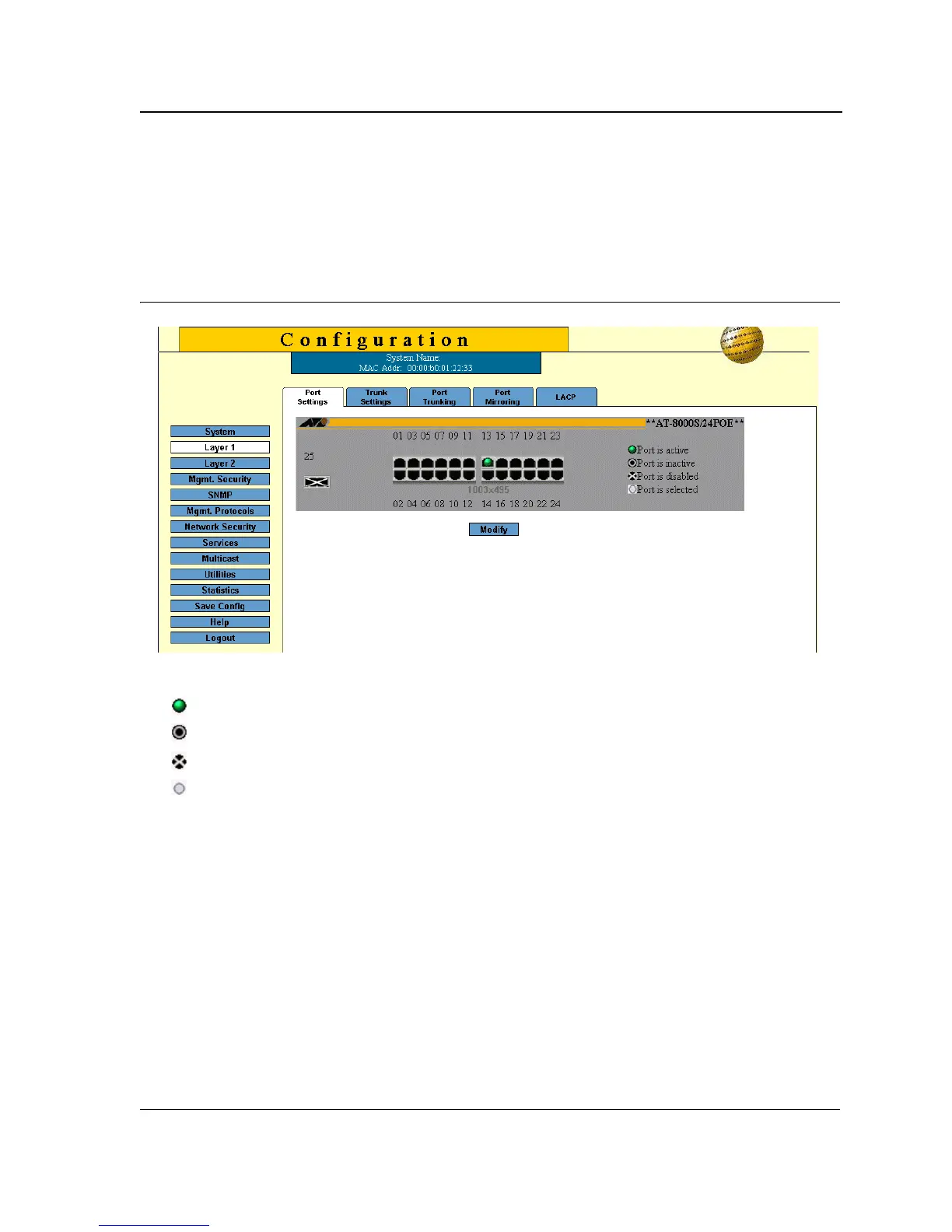

Figure 33: Port Settings Page
The Port Settings Page contains the Zoom View of the device ports. The possible port settings are:
2. Select the port(s). Clicking a port toggles it through the possible settings.
3. Click Modify. The Modify Port Settings Page opens:
Port is active — Indicates the port is linked.
Port is inactive — Indicates the port is not linked.
Port is disabled — Indicates that the port is disabled.
Port is selected — Indicates that the port is selected for modification.
