Allied Telesis AT-8000S Series User Manual

Configuring Interfaces
Configuring VLANs
Page 75
Defining VLAN Properties
The VLAN Page provides information and global parameters for configuring and working with VLANs.
To configure a VLAN:

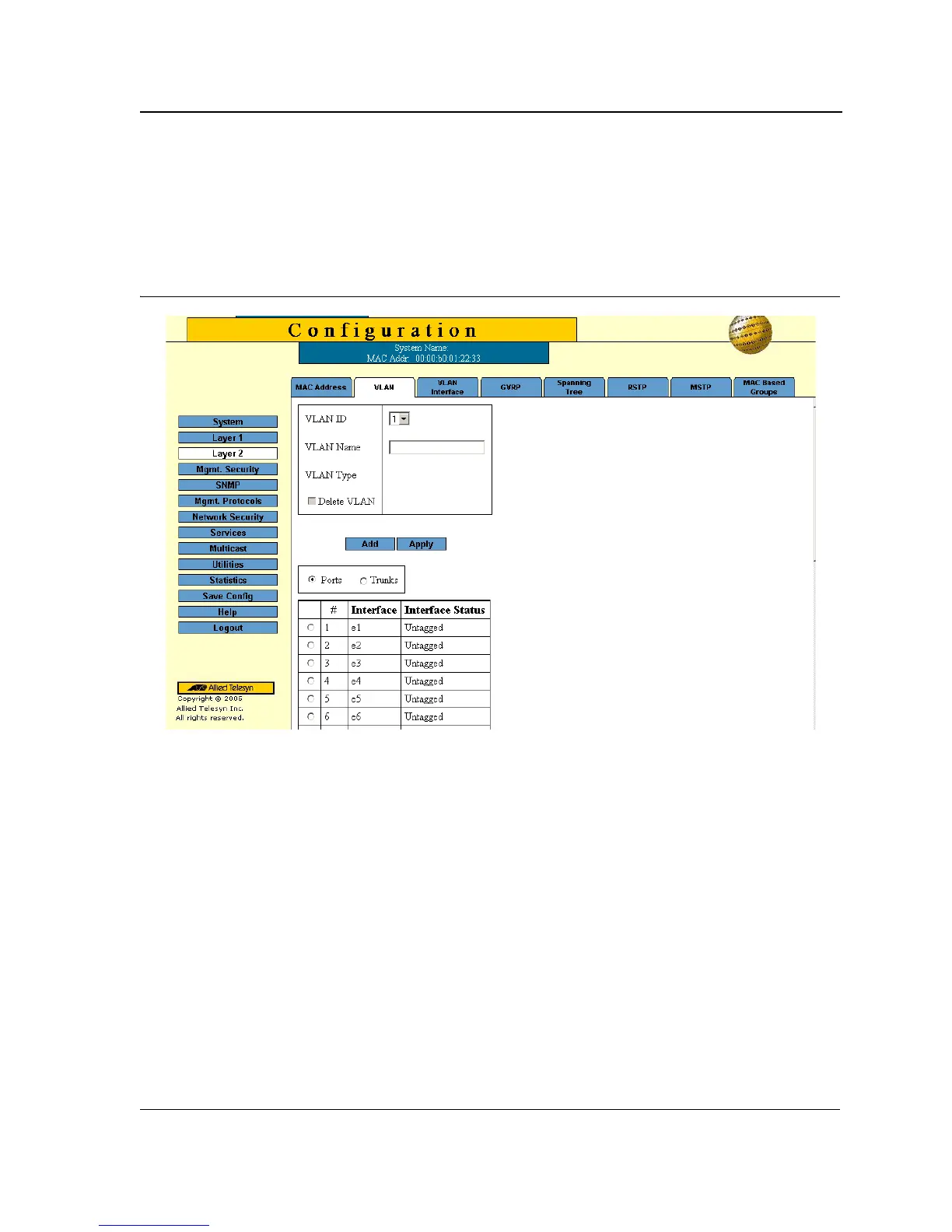

1. Click Layer 2 > VLAN. The VLAN Page opens:
Figure 45: VLAN Page
The VLAN Page contains the following fields:
• Select VLAN ID — Contains a drop-down list of the currently configured VLAN IDs.
• Show All — Displays all currently configured VLANs.
• VLAN ID — Displays the VLAN ID.
• VLAN Name — Displays the user-defined VLAN name. This is a required field.
• VLAN Type — Displays the VLAN type. The possible field values are:
– Dynamic — Indicates the VLAN was dynamically created through GARP.
– Static — Indicates the VLAN is user-defined.
– Default — Indicates the VLAN is the default VLAN.
• Authentication — Indicates whether unauthorized users can access a Guest VLAN. The possible field
values are:
– Enable — Enables unauthorized users to use the Guest VLAN.
– Disable — Disables unauthorized users from using the Guest VLAN.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
