Allied Telesis AT-8000S Series User Manual

Page 50
Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide
For example, a network administrator can use Guest VLANs to deny network access via port-based
authentication, but grant Internet access to unauthorized users. The possible field values are:
– Enable — Enables Guest VLANs.
– Disable — Disables Guest VLANs.
• Guest VLAN ID — Lists the currently defined VLANs.
2. Click Enable Port Access.
3. Select the Authentication Method.
4. Define the VLAN fields
5. Click Apply. The 802.1x access is configured globally and device information is updated.
To modify port based authentication settings:
1. Click Settings. The Port Authentication Settings Page opens:

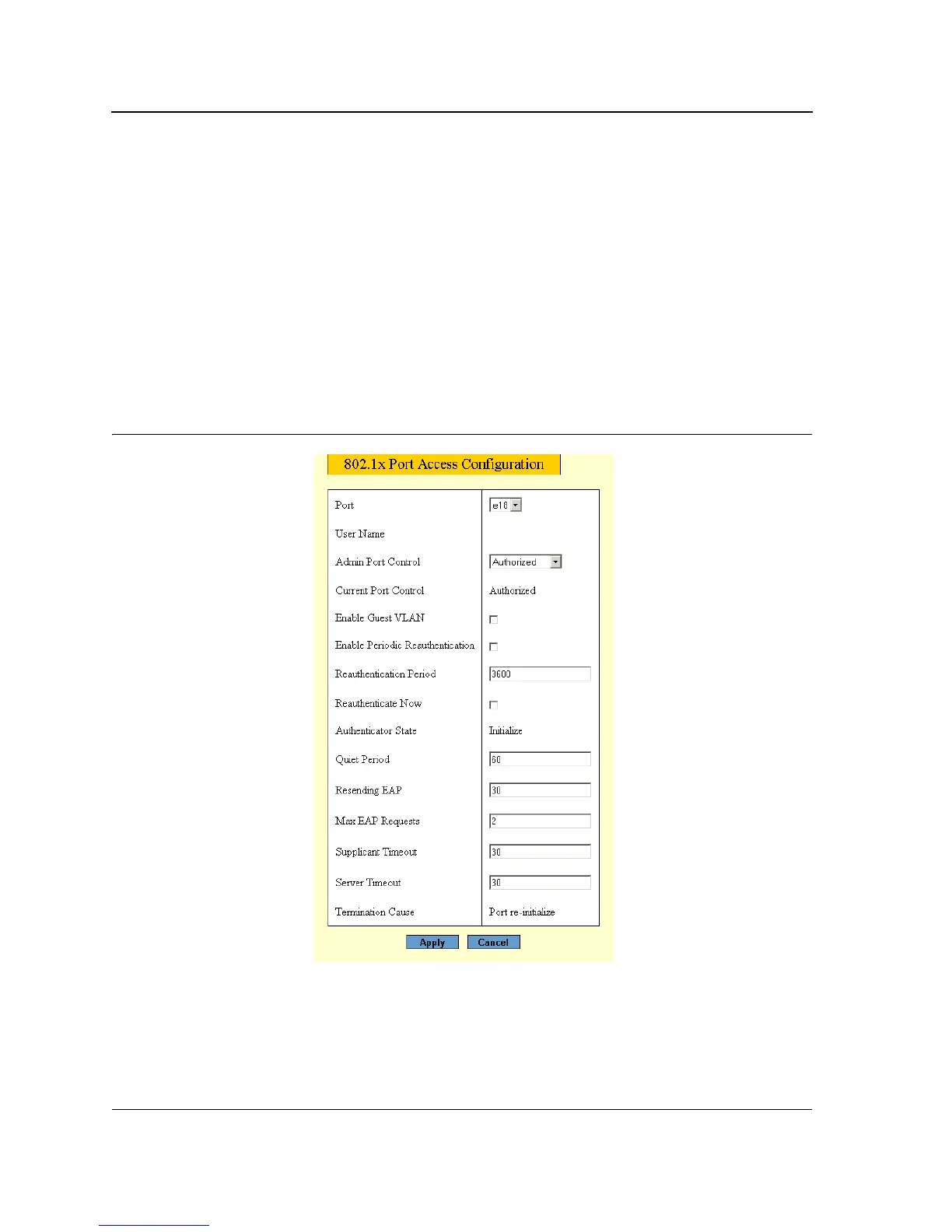

Figure 30: Port Authentication Settings Page
The Port Authentication Settings Page contains the following port authentication parameters:
• Port — Displays a list of interfaces on which port-based authentication is enabled.
• User Name — Displays the supplicant user name.
• Current Port Control — Displays the current port authorization state. The possible field values are:

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
