– General — Indicates the port belongs to VLANs, and each VLAN is user-defined as tagged or untagged
(full IEEE802.1q mode).
– Access — Indicates a port belongs to a single untagged VLAN. When a port is in Access mode, the
packet types which are accepted on the port cannot be designated. Ingress filtering cannot be enabled or
disabled on an access port.
– Trunk — Indicates the port belongs to VLANs in which all ports are tagged, except for one port that can
be untagged.
• Frame Type — Specifies the packet type accepted on the port. The possible field values are:
– Admit Tag Only — Only tagged packets are accepted on the port.
– Admit All — Both tagged and untagged packets are accepted on the port.
• Current Reserved VLAN — Indicates that the VLAN selected by the user is reserved, if not in use by the
system.
2. Click Modify. The Modify Interface Configuration Page opens:

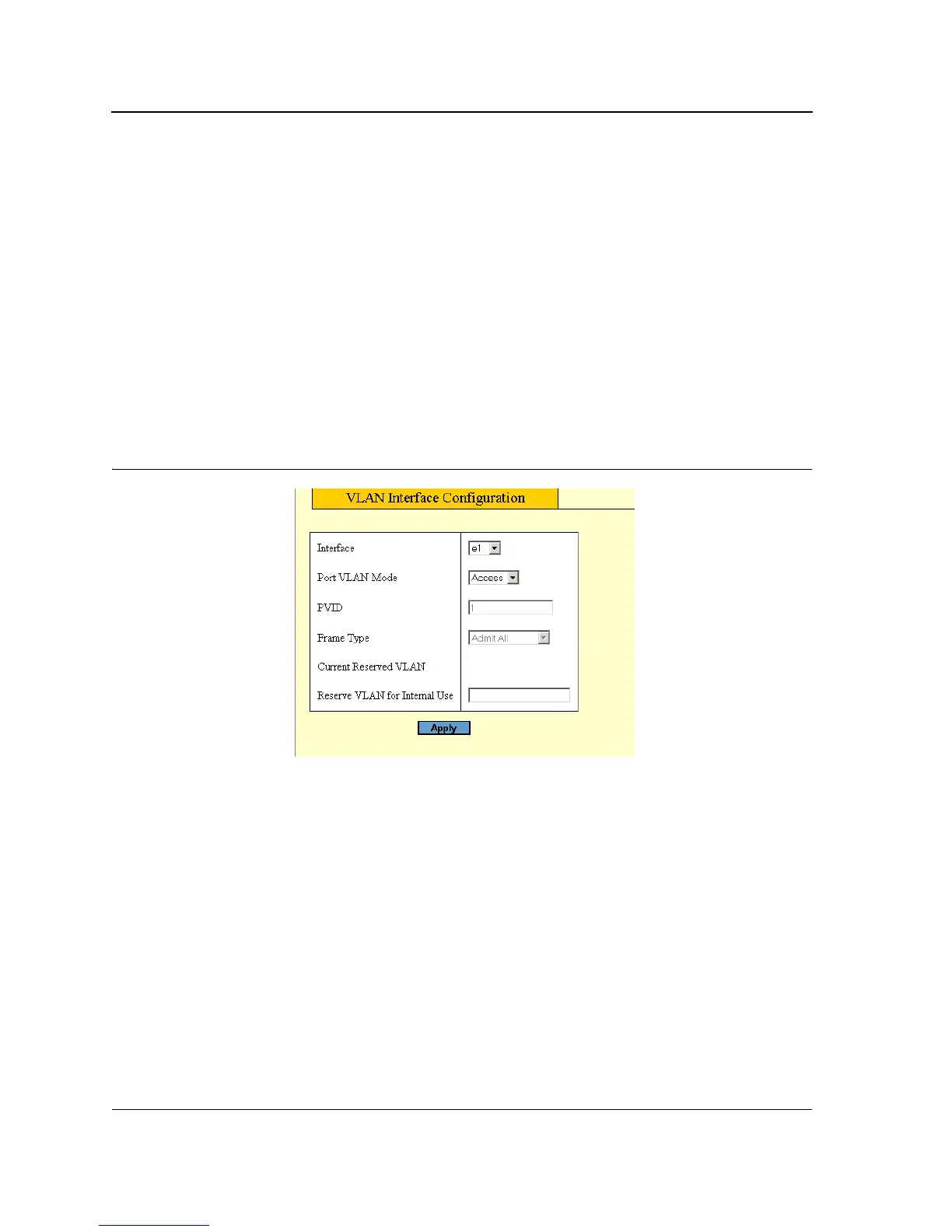

Figure 47: Modify Interface Configuration Page
3. Define the fields.
4. Click Apply. The VLAN interface configuration is saved and the device is updated.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
