7. Have another person hold the switch at the selected wall location while
you secure it to the wall with the M4x32mm screws provided. Refer to
Figure 79.

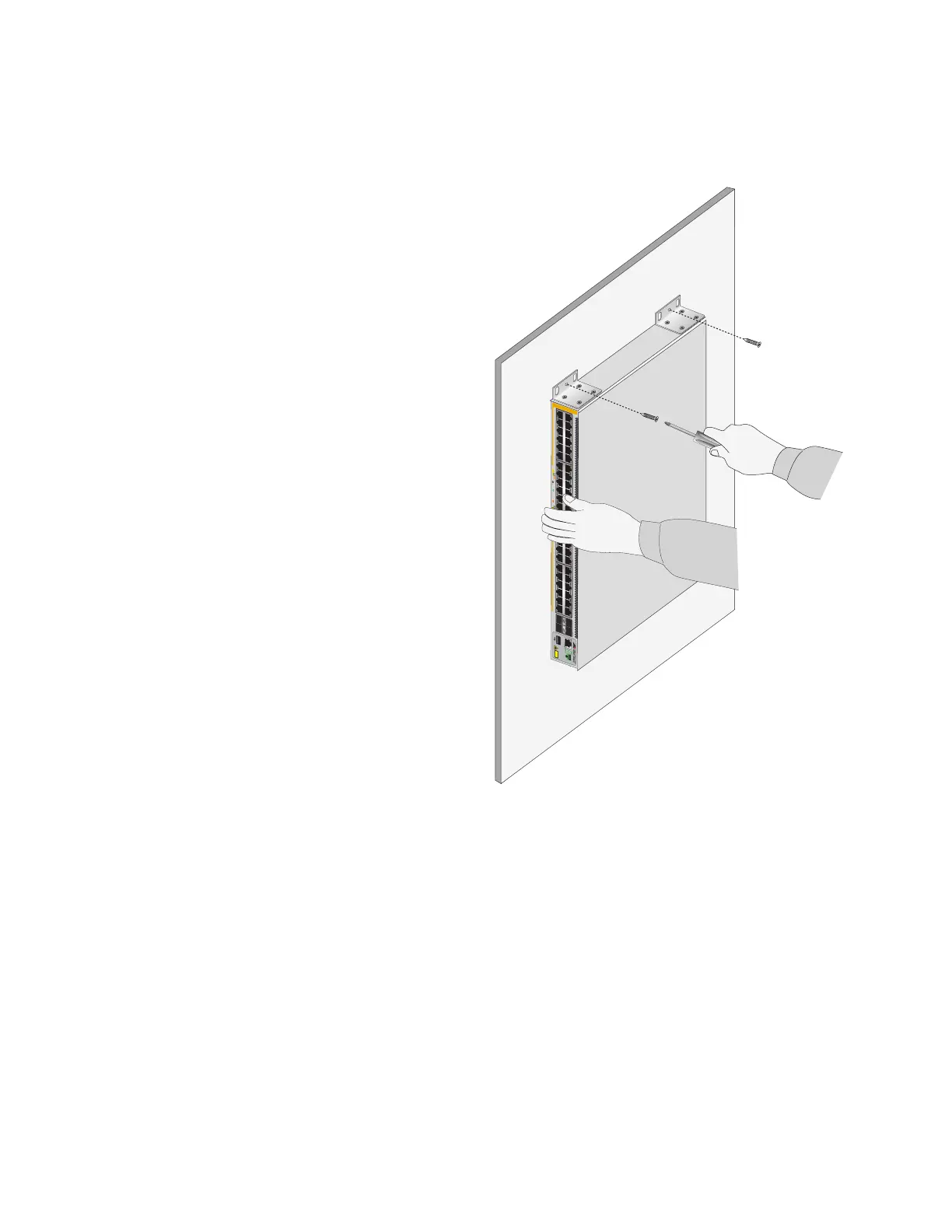

Figure 79. Installing the Switch on a Concrete Wall
8. After installing all the switches of the stack, do one of the following:
To build the stack with the default stacking ports, go to Chapter 7,
“Building the Trunk with the Default 10Gbps Stacking Ports” on
page 141.
To build a stack of x530L-10GHXm switches using 5Gbps ports for
the trunk, refer to Chapter 8, “Building the Stack Trunk with 5Gbps
Multi-Speed Ports” on page 161.
