5.2 Control station on the ground.
The ground control station is located on the base carriage. It contains the electronic control unit that
manages all the functions of the machine and has the function of:
- Turn the machine on and off;
- Select the enabled control station (on the ground or on the platform);
- Move the extensible structure to bring the platform back to the ground in case of emergency or
for maintenance operations;
- Connect the cable control console to operate the winch (optional for some models).
Warning: It is forbidden to operate from the ground controls in normal working conditions with personnel
on the platform. The ground control station is used exclusively for emergency recovery operations,
maintenance, or for fairs or exhibitions (without operators on board the platform).
The master key must always be available to the recovery worker who remains on the ground during normal
use of the machine, ready to intervene in an emergency.
At the end of the work, turn off the machine by turning the main key to position "0" and remove the key
itself in order to avoid unauthorized use of the machine.
Access to the electronic control unit is reserved for specialized personnel for maintenance and / or repair
operations. Access the electronic control unit only when the machine is disconnected from any external
power supplies.

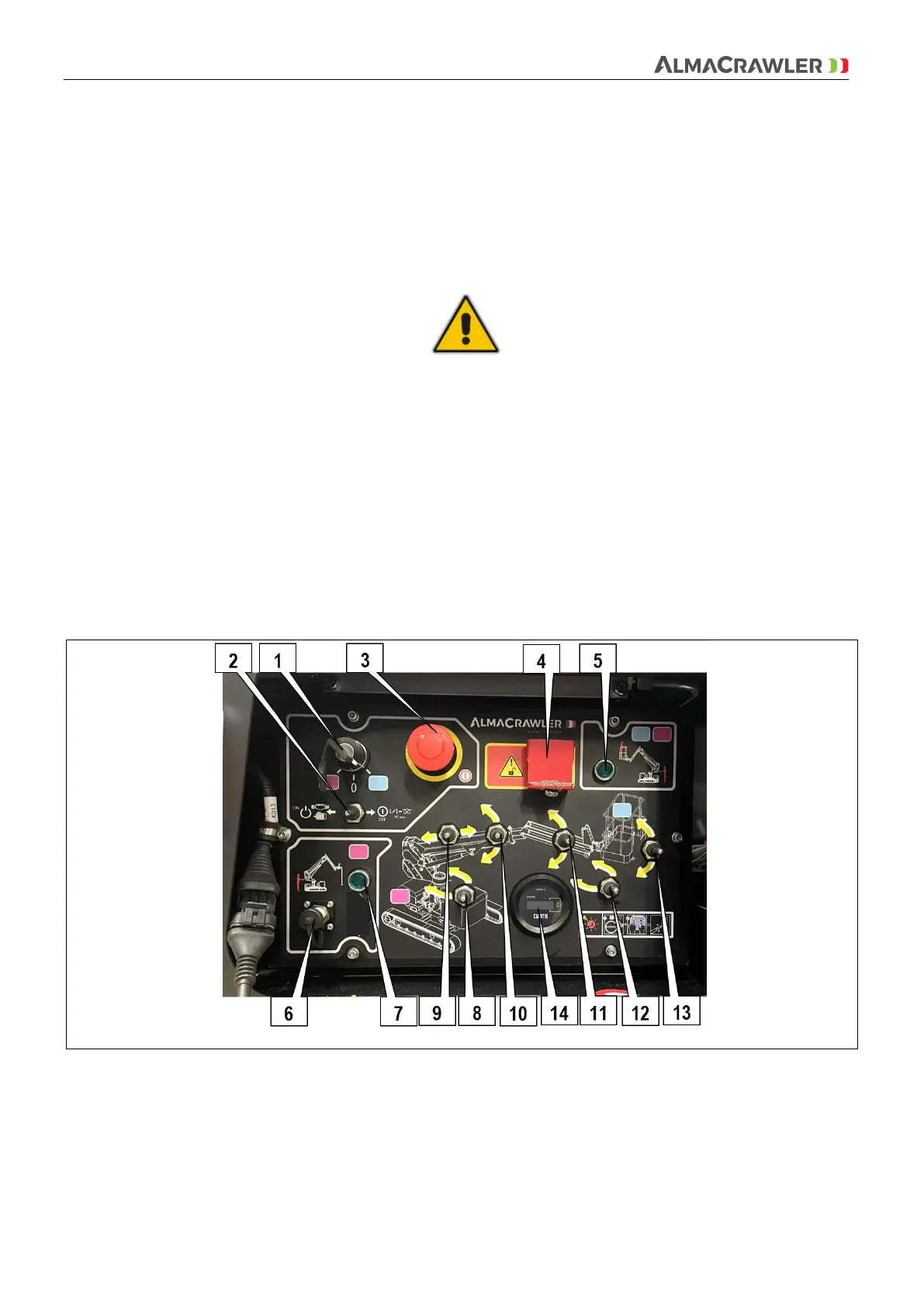

1. MAIN KEY SWITCH / CONTROL POSITION SELECTOR
2. ON / OFF / PREHEAT SELECTOR THERMAL AND ELECTRIC MOTORS / "ENABLE" FUNCTION
3. EMERGENCY STOP BUTTON
4. EMERGENCY OVERRIDE BUTTON WITH LEAD PROTECTION
5. PLATFORM PRESENCE LIGHT
6. CONNECTOR FOR USE WITH WINCH KIT (OPTIONAL)
7. WINCH PRESENCE LIGHT (OPTIONAL)
