8.2.18.3.2 TRACTION battery charging (ELC versions).
To recharge the TRACTION battery, the battery charger must be connected to an electrical network
equipped with all the protections in accordance with current safety standards, and which has the
following characteristics (depending on the country in which the machine is put into service):
- Power supply voltage 115-230V AC ± 10% single phase;
- Frequency 50 ÷ 60 Hz;
- Ground line connected;
- Efficient magneto-thermal and differential switch device;
It is also necessary to keep in mind:
- Do not use cables or extensions longer than 5 meters;
- Do not use coiled cables or extensions;
- Use a cable with an appropriate section (minimum 3x2.5 mm²);
8.2.18.3.2.1 SPE 40A-48V charger

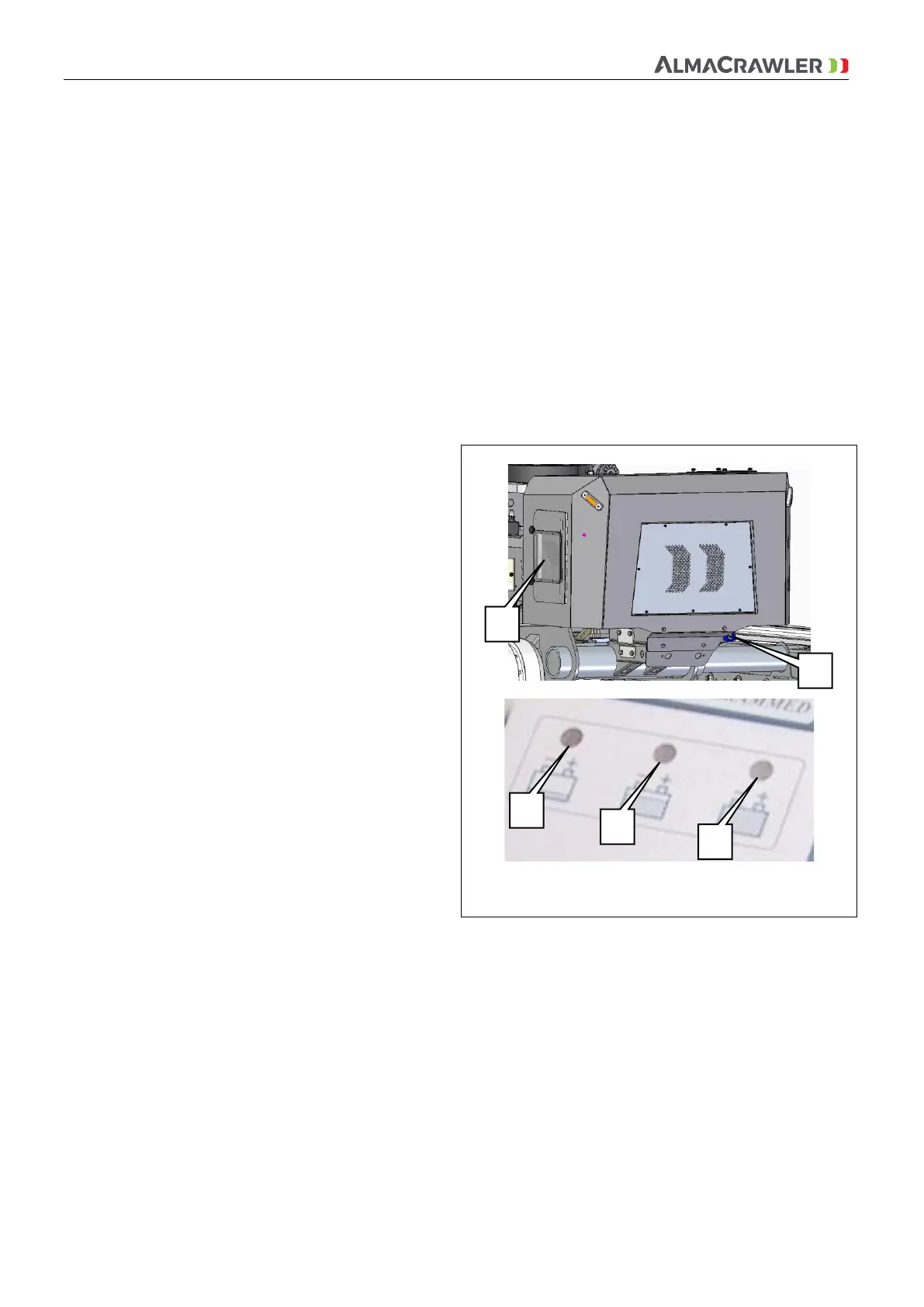

To proceed with recharging, connect the plug (A)
to a cable connected to the mains as described
above, checking that recharging begins, by
turning on the red LED (C) visible from the hatch
(B).
When the yellow LED (D) turns on, the recharge
begins its final phase.
The lighting of the green LED (E) indicates that
recharging is complete.
