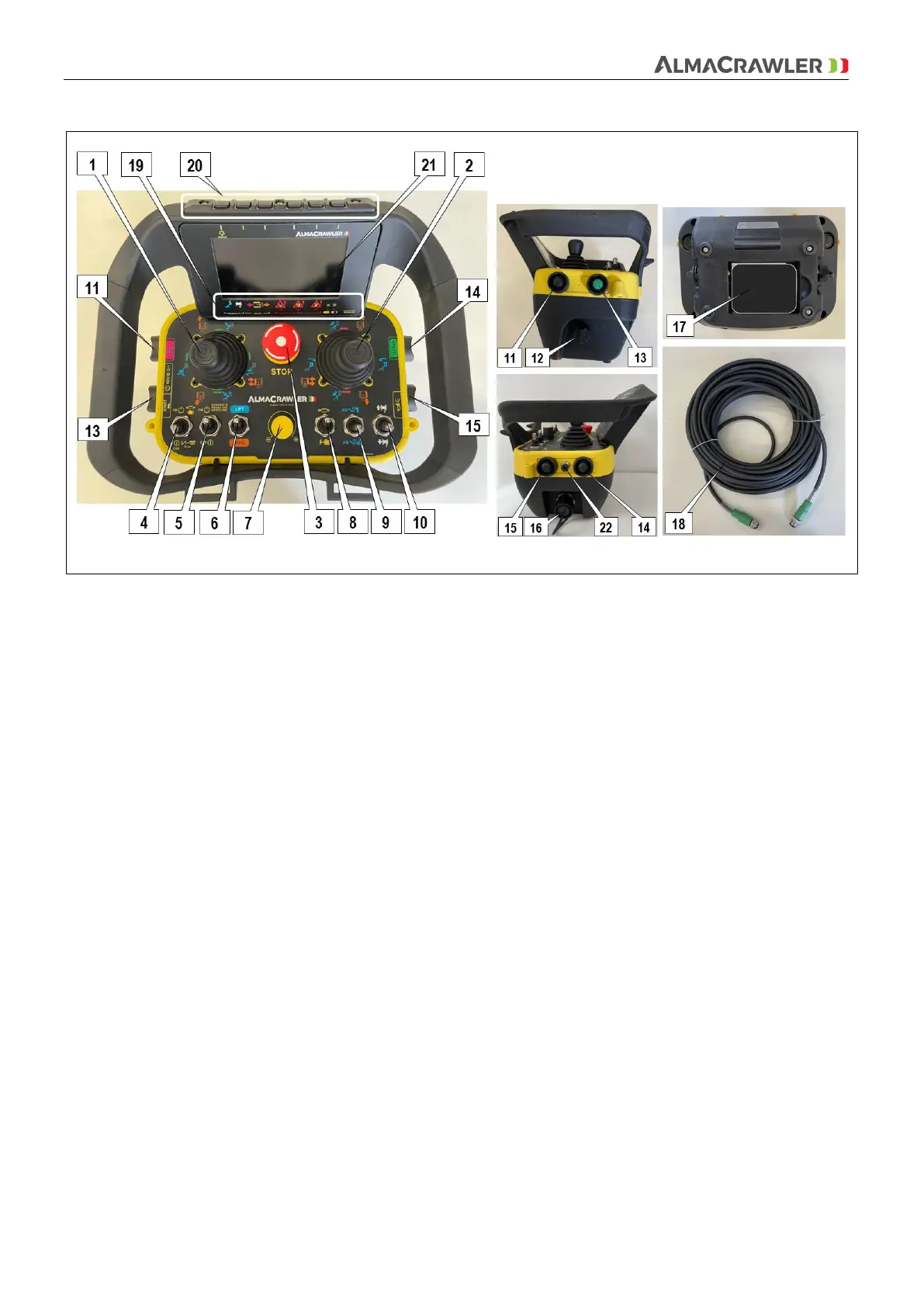

1. LEFT MULTIFUNCTION JOYSTICK:
a. LEFT CRAWLER DRIVE / LEFT TRACK (ORANGE)
b. ARM / TURRET ROTATION (LIGHT BLUE)
c. MANUAL (GREEN)
2. RIGHT MULTIFUNCTION JOYSTICK:
a. RIGHT CRAWLER DRIVE / RIGHT TRACK (ORANGE)
b. FAST DRIVE (PURPLE)
c. TELESCOPIC / PLATFORM ROTATION (BLUE)
3. EMERGENCY STOP BUTTON
4. ON / OFF SELECTOR/ PREHEAT MOTORS THERMAL AND ELECTRIC
5. DYNAMIC AND PROACTIVE LEVELLING SELECTOR
6. "LIFT" / "DRIVE" SELECTOR
7. SPEED SELECTOR POTENTIOMETER
8. THERMAL / ELECTRIC POWER SELECTOR
9. JIB CONTROL SWITCH
10. WINCH CONTROL SWITCH (OPTIONAL)
11. "FAST DRIVE AND BOOSTER" ENABLING BUTTON
12. SAFETY KEY - ONLY FOR RADIO CONTROL VERSION
13. "START" BUTTON
14. "MANUAL" FUNCTION ACTIVATION BUTTON
15. HORN BUTTON
16. CONNECTOR
17. BATTERY - ONLY FOR RADIO CONTROL VERSION
18. CABLE - ONLY FOR RADIO CONTROL VERSION
19. SIGNAL LIGHTS (PUSH-BUTTON PANEL WITH GRAPHIC DISPLAY)
20. SERVICE BUTTONS (PUSH-BUTTON PANEL WITH GRAPHIC DISPLAY)
21. GRAPHIC DISPLAY
