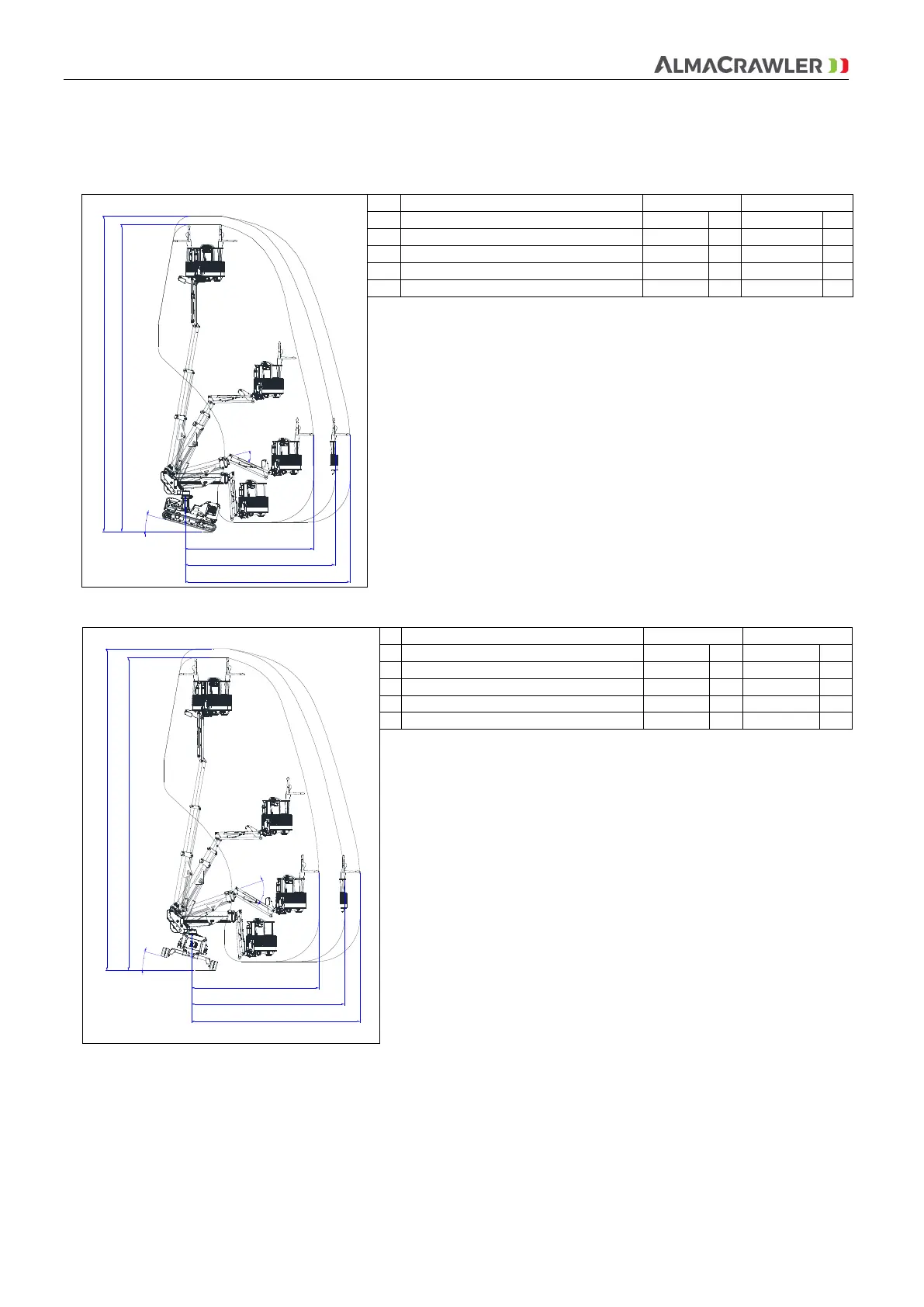

2.2.4 JIBBI 1250 RT working diagrams.
2.2.4.1 JIBBI 1250 RT working diagrams. Maximum height and maximum outreach.
Translation inhibited.
Metric
Imperial
A
Maximum working height - 140 kg
12.4
m
40' 8''
ft
B
Maximum working height - 230 kg
12.1
m
39' 8''
ft
C
Maximum working outreach - 230 kg
5.0
m
16' 5''
ft
D
Maximum working outreach - 140 kg
5.9
m
19' 4''
ft
E
Maximum working outreach - 80 kg
6.5
m
21' 4''
ft
Metric
Imperial
A
Maximum working height - 140 kg
12.4
m
40' 8''
ft
B
Maximum working height - 230 kg
12.1
m
39' 8''
ft
C
Maximum working outreach - 230 kg
4.9
m
16' 0''
ft
D
Maximum working outreach - 140 kg
5.9
m
19' 4''
ft
E
Maximum working outreach - 80 kg
6.5
m
21' 4''
ft
E
B
A
40°
15°
C
D
50°
E
B
A
15°
C
D
