EXAMPLE: JIBBI 1270 EVO
P1 = 3.685 kg
P2 = 2,900 kg
M = 230 kg
i1 = 183 cm
i2 = 383 cm
i3 = 46 cm
c1 = 195 cm
c2 = 25 cm
A1 = c1 × i2 = 195 × 383 = 74,685 cm²
A2 = c2 × i1 = 25 × 183 = 4,575 cm²
A3 = c2 × i3 = 25 × 46 = 1,150 cm²
p1 = (P1 + M) / A1 = (3,685 + 230) / 74,685 = 0.0524 kg / cm² = 524
kg / m²
p2 = (P1 + M) / 2 / A2 = (3,685 + 230) / 2 / 4,575 = 0.43 kg / cm²
p3 = P2 / A3 = 2,900 / 1,150 = 2.52 kg / cm²

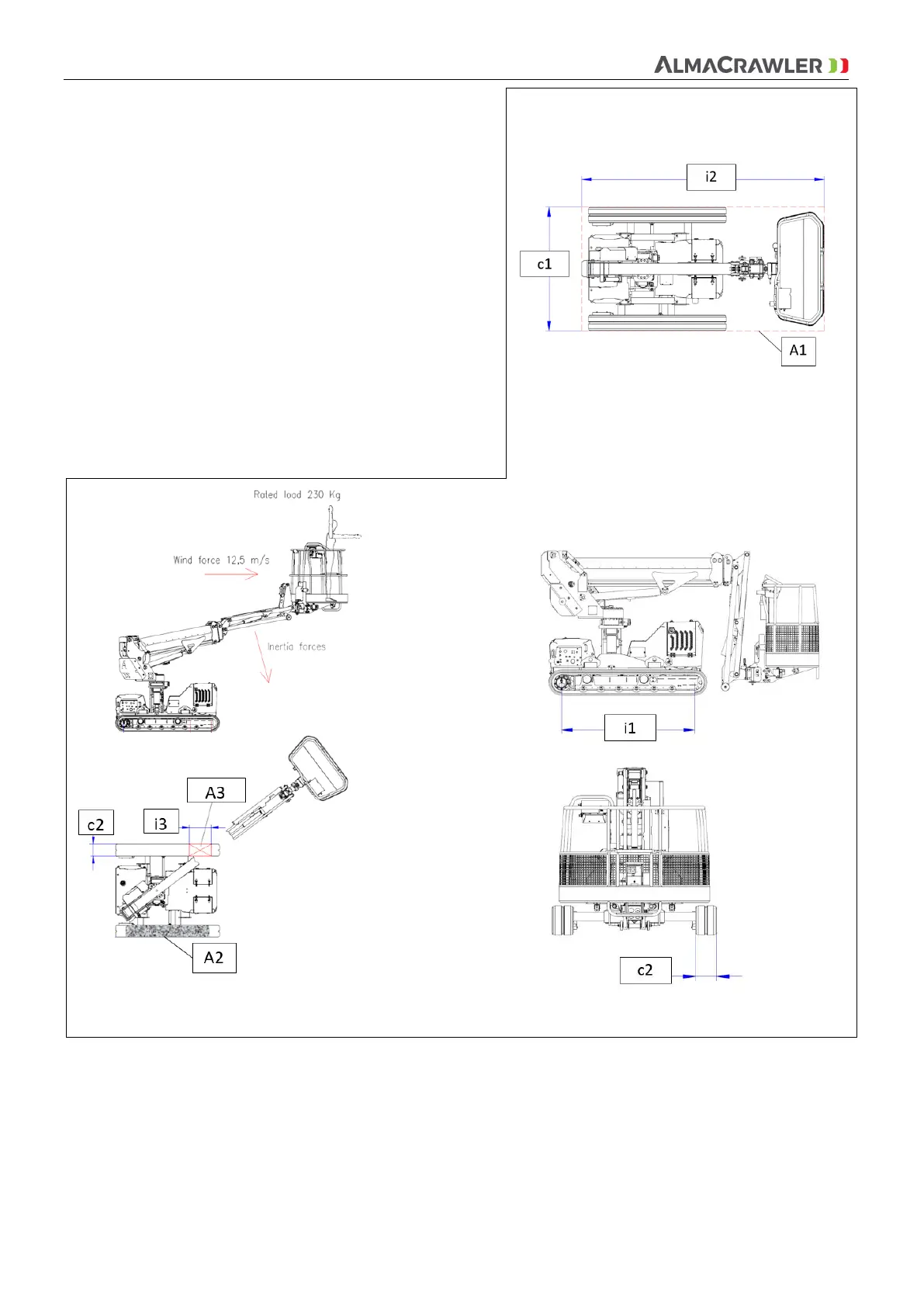

Figure 7
