4. How to Operate Screens
4-5

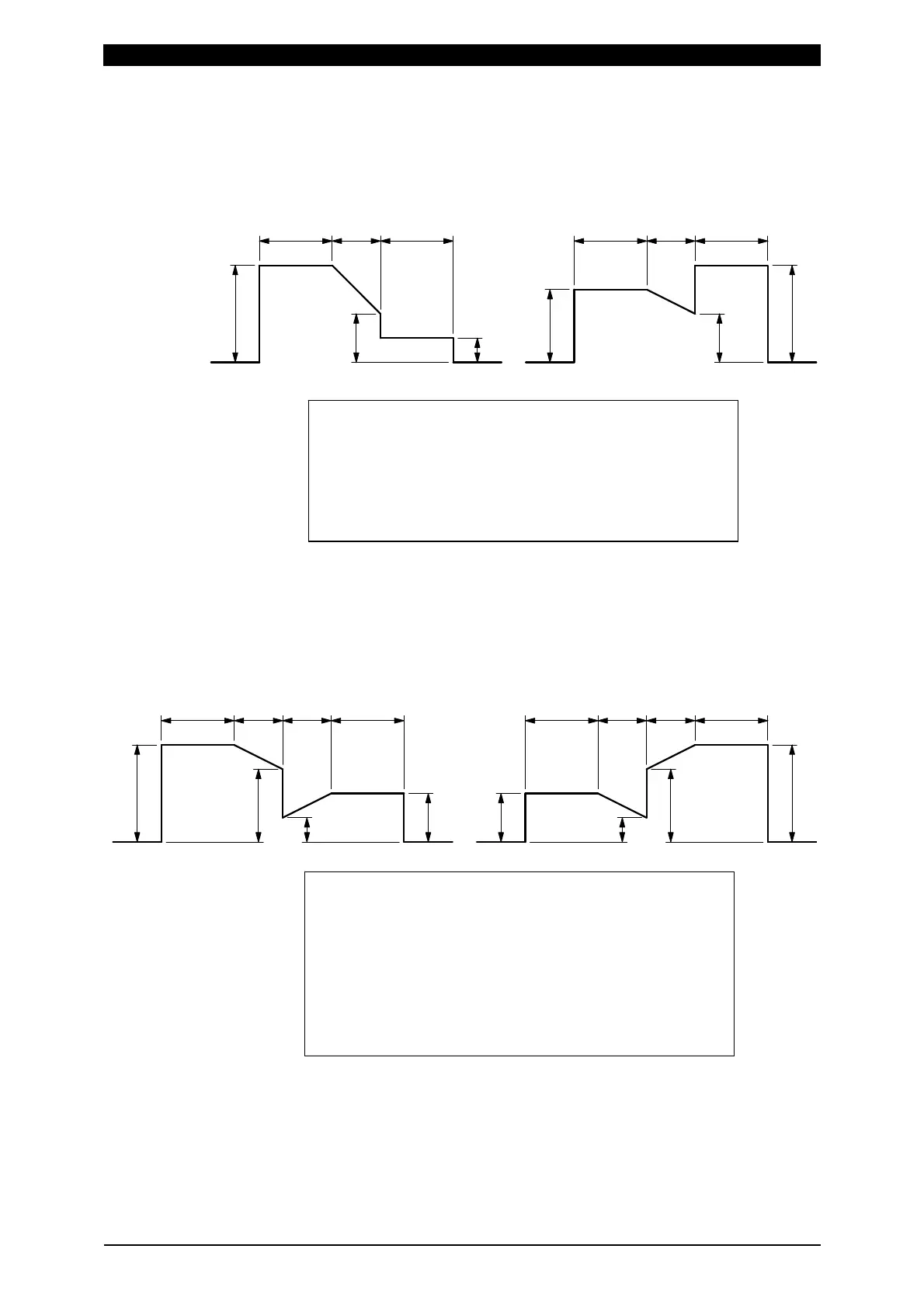

 When the downslope time is set for the previous stage in the
multi-stage welding.
The downslope time is set for the previous stage, and the DL HEAT
setting of E and the HEAT setting of F are different.
A
D
B
F
C
E
F
D
CA B
E
 When the slope times are set for the previous and subsequent stages
in the multi-stage welding.
The downslope time is set for the previous stage, the upslope time is
set for the subsequent stage, and the DL HEAT setting of F and the UF
HEAT setting of G are different.
A B C
E
H
G
F
D A
E
F
H
DB C
G
(Note) Set 1 (ms/CYC) or more for at least one of WELD1, WELD2 and WELD3.
Also, set the total time of UP and DOWN to be shorter than WELD. If not,
E-10 (Schedule setting error) will be displayed.
A: WELD1 time or WELD2 time
B: DOWN1 time or DOWN2 time
C: WELD2 time or WELD3 time
D: WELD1 HEAT or WELD2 HEAT
E: DL1 HEAT or DL2 HEAT
F: WELD2 HEAT or WELD3 HEAT
A: WELD1 time or WELD2 time
B: DOWN1 time or DOWN2 time
C: UP2 time or UP3 time
D: WELD2 time or WELD3 time
E: WELD1 HEAT or WELD2 HEAT
F: DL1 HEAT or DL2 HEAT
G: UF2 HEAT or UF3 HEAT
H: WELD2 HEAT or WELD3 HEAT
