2.3 Operating Controls and Indicators
2.3.1 Cable-connected remote control

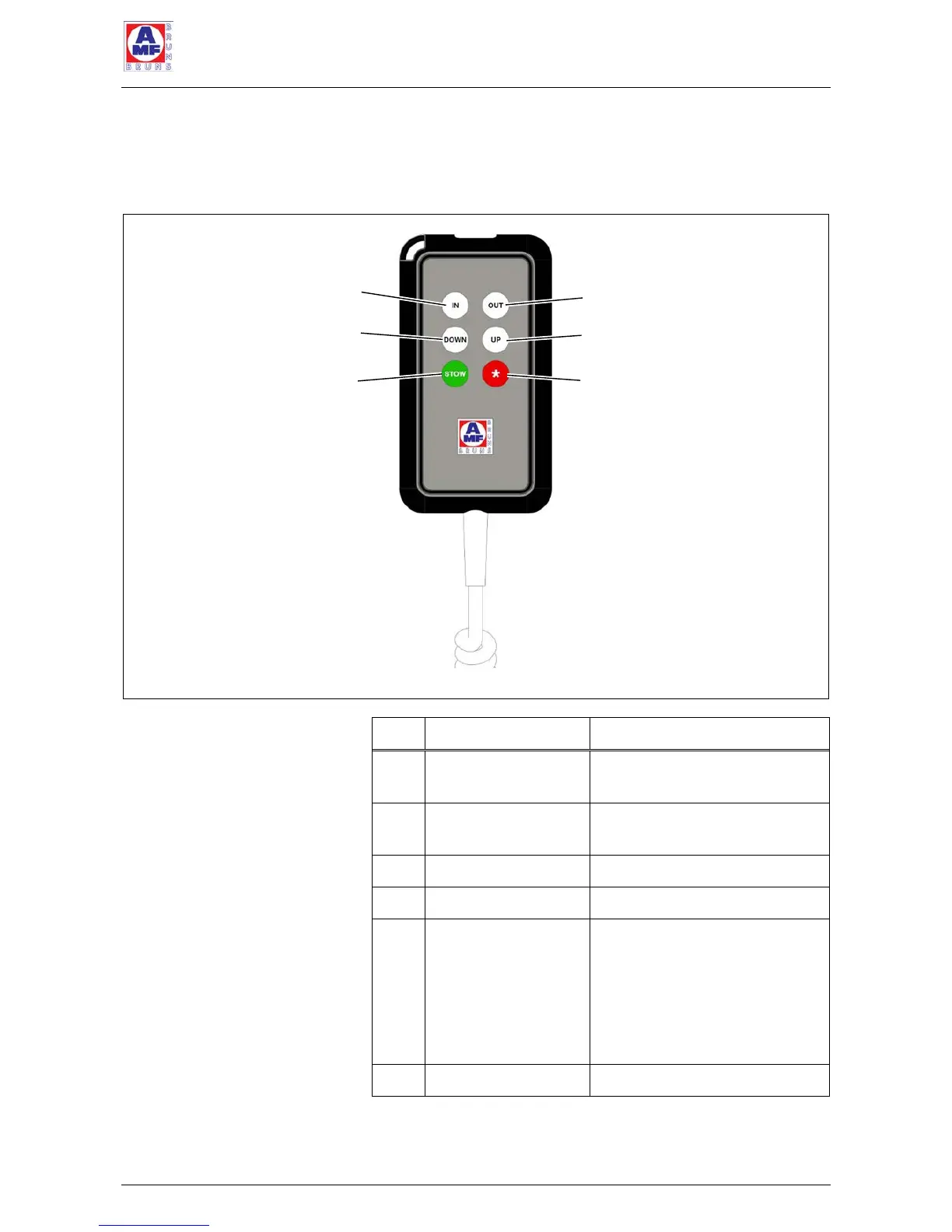

Figure 15: Cable-connected remote control
Item
Designation
Function
1
"Retract" button
Retracts the platform into
the cassette.
2
"Extend" button
Extends the platform from
the cassette.
3
“Lower” button
Lowers the platform.
4
“Raise” button
Raises the platform.
5
"Retract Position"
button
Brings the platform to the
position from which it can be
retracted into the cassette.
The platform must be higher
than the cassette for this
button to be effective.
6
-
No function.
3
2
1
5
4
6
