12.3 Hydraulic Circuit Diagram K90
ACTIVE

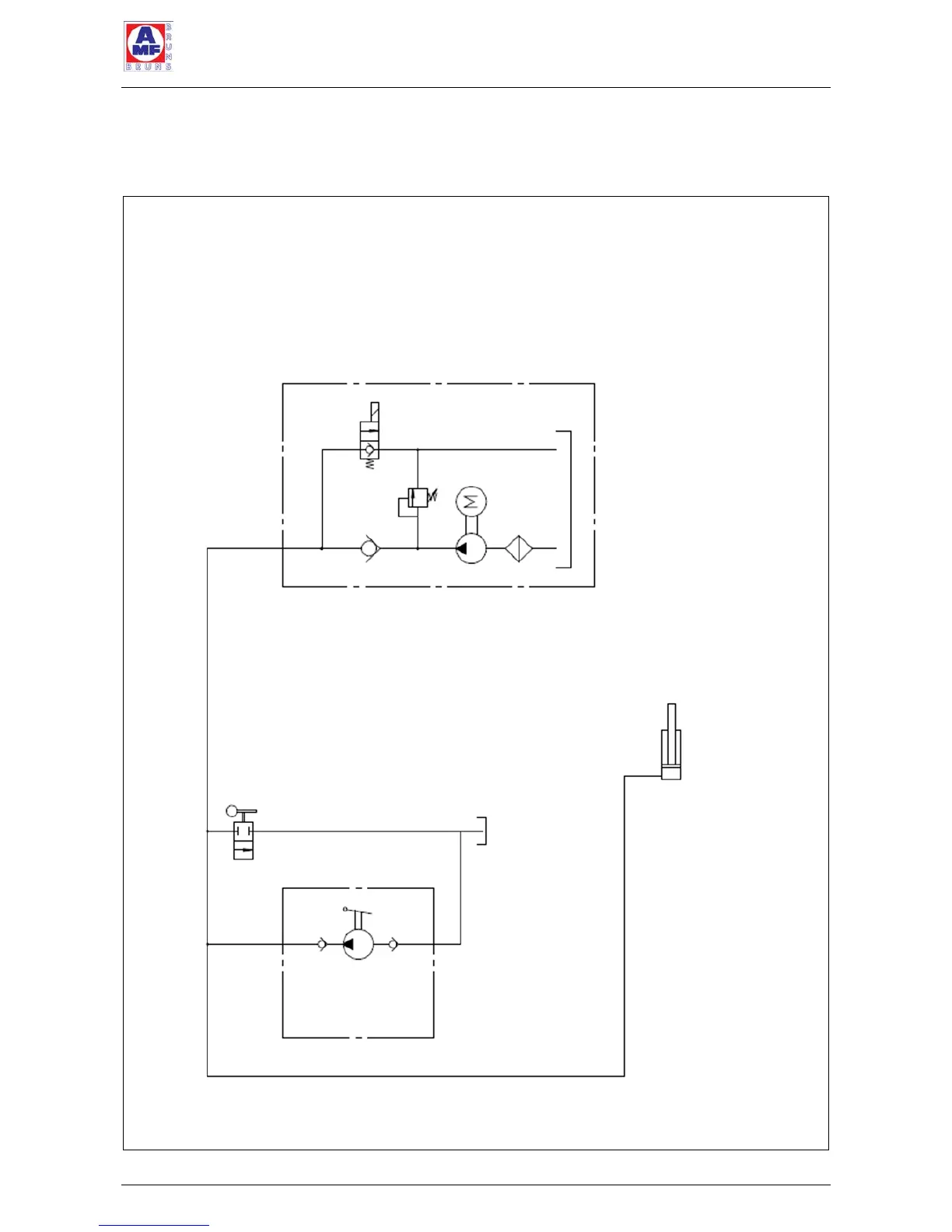

Figure 62: Hydraulic Circuit Diagram K90 ACTIVE
Haldex aggregate Type PA 12003-00 12V 05ccm set to 150 bar HE 1000 0.35kW 12V
Ball-cock BK HL 06 VZ shown in closed position
V=2ccm/stroke Manual pump Fluitronics Type: LT-30K43.0-K
Tank
Hydraulic lifting cylinder incl. flow control valve SFC1.G14.0A.00
