AMF-BRUNS K90 ACTIVE - Electrical Circuit Diagram K90

Electrical Circuit Diagrams
Page 90 of 100 Back-in-Box-Lift K70 / K90 / K90 ACTIVE
11.4 Electrical Circuit Diagram K90

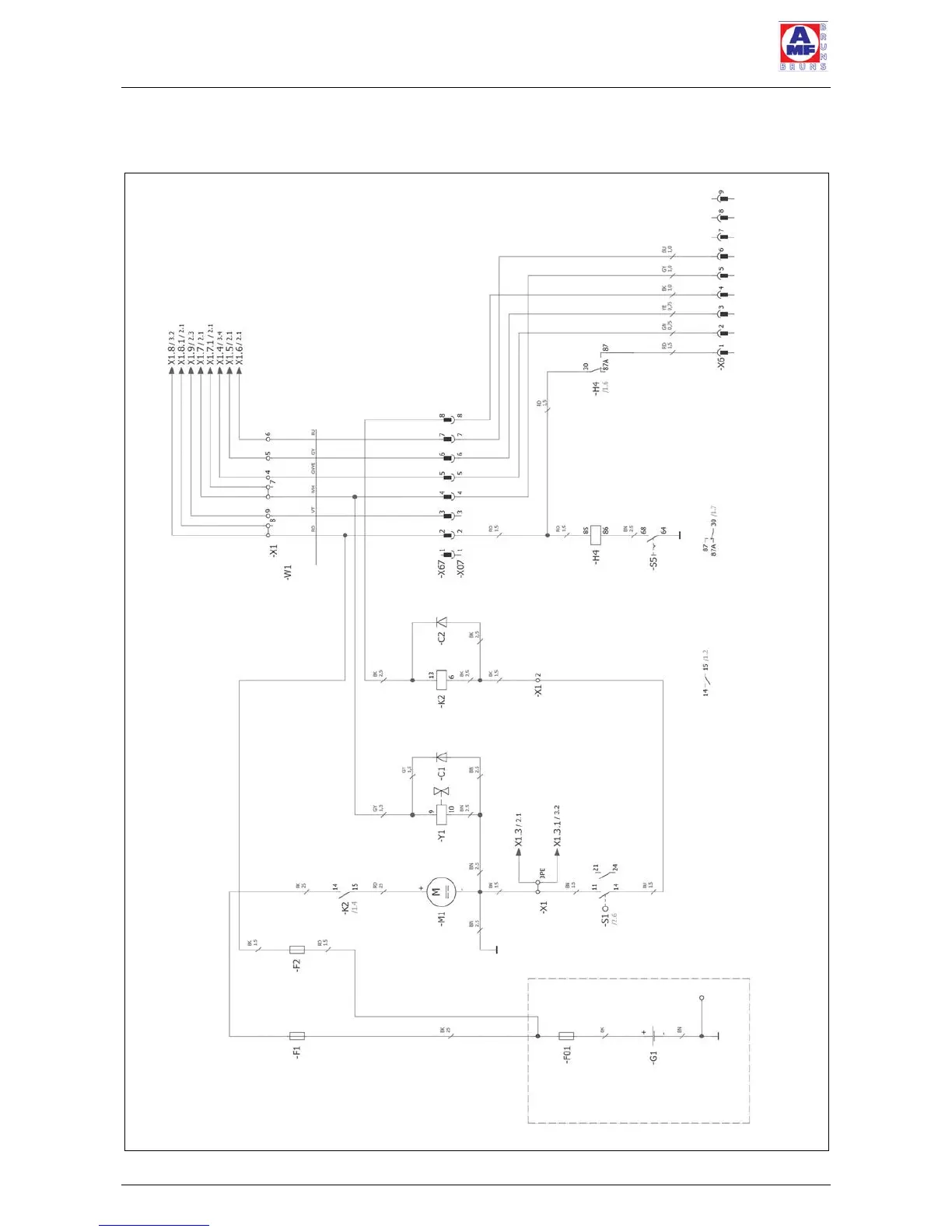

Figure 56: Electrical Circuit Diagram K90 (1)
To manually operated switch S6/S7 DWG 10002662
Door open: Door contact switch made Door closed: Door contact switch open DWG 10009331
9-pin
built-in socket
Door contact
switch
Branch connection
Earth
8-pin
plug receptacle
ÖLFLEX CLASSIC 100 G
2940 mm
8x1.5
Micro-switch
Solenoid
MZD2
Earth
pump housing
Hydraulic
aggregate
Lowering
valve
Contactor
Branch connection
Branch connection
Branch connection
Branch connection
Earth
Power supply
from the battery
DWG 10004013
Fuse
40A
100A
Fuse
Vehicle fuse
Vehicle battery
12V
Transfer point
+ vehicle
Transfer point
