Hydraulic Line Diagrams
Back-in-Box-Lift K70 / K90 / K90 ACTIVE Page 95 of 100
12 Hydraulic Line Diagrams
12.1 Hydraulic Circuit Diagram K70

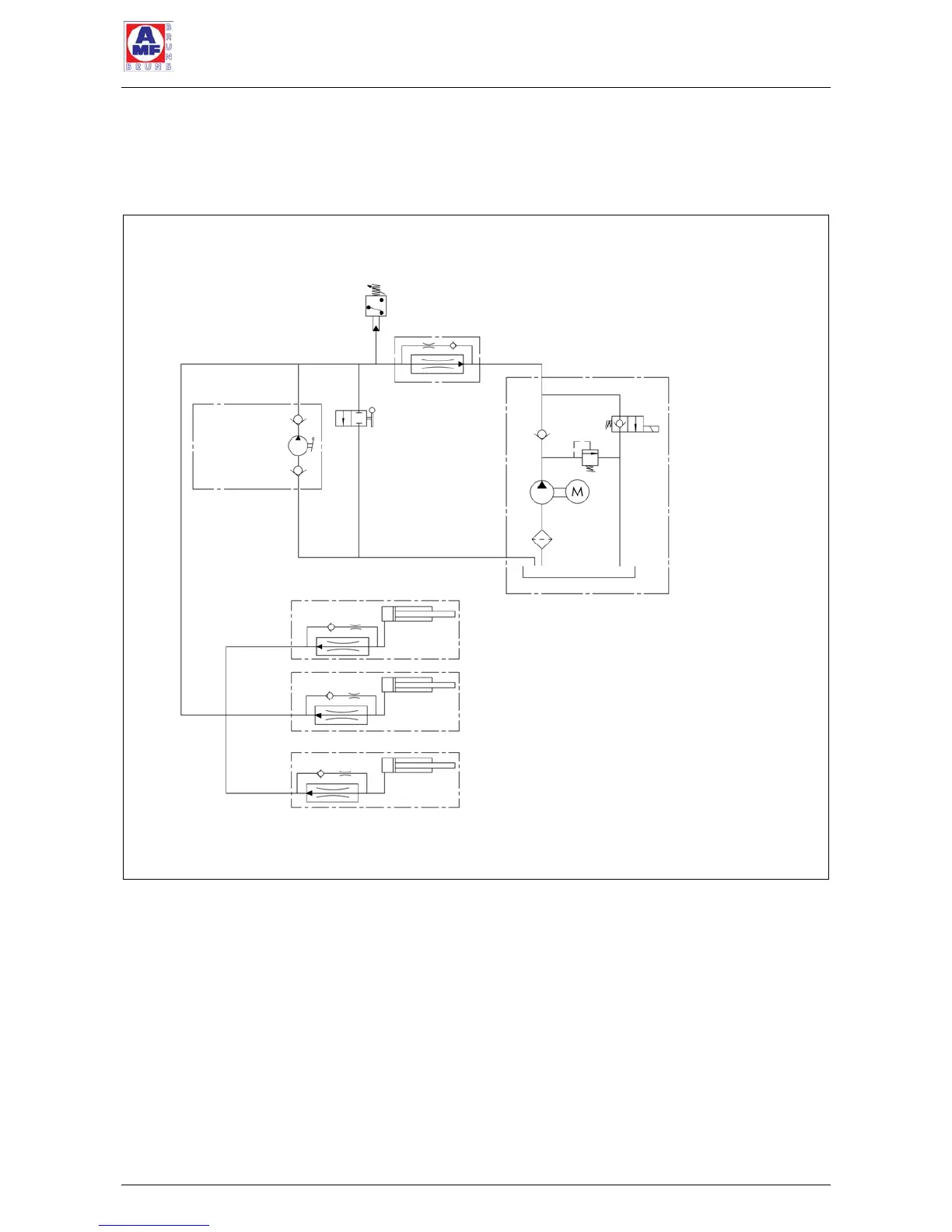

Figure 60: Hydraulic Circuit Diagram K70
Pressure switch
opens at p > 0.1 – 1 bar
Flow control valve
1 l/min G ¼“
load independent
Ball-cock
Hand-operated
pump
V = 2 cm³ /
stroke
Hydraulic cylinder
Hydraulic cylinder
Hydraulic cylinder
Hydraulic aggregate
set to 190 bar
0.35 kW 12 V
