AMF-BRUNS K90 ACTIVE - Electrical Circuit Diagram K90 ACTIVE

Electrical Circuit Diagrams
Back-in-Box-Lift K70 / K90 / K90 ACTIVE Page 93 of 100
11.5 Electrical Circuit Diagram K90 ACTIVE

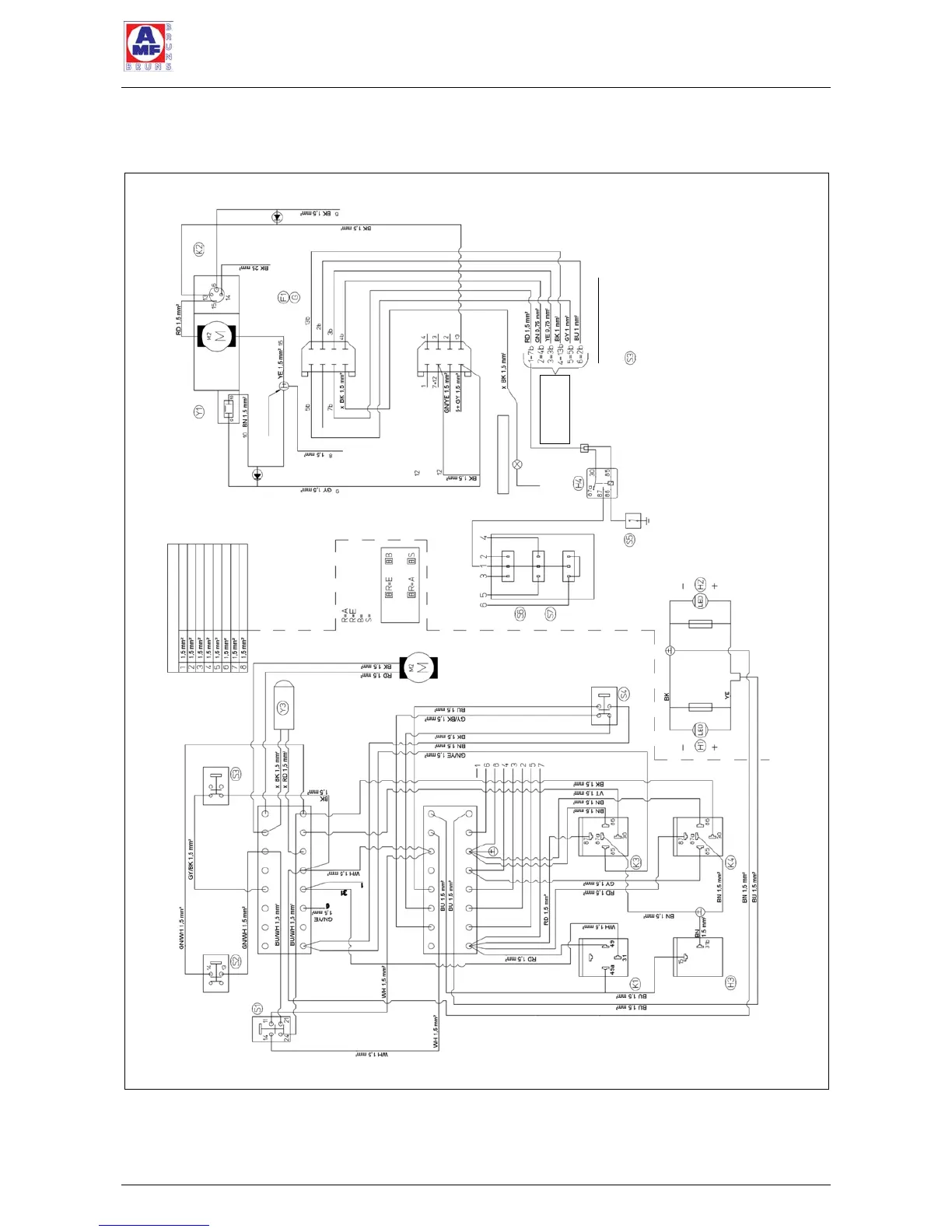

Figure 59: Electrical Circuit Diagram K90 ACTIVE
A cable
harness to the
manual switches
Branch connection
Door open: Door contact switch closed Door closed: Door contact switch open
Door contact switch
Retract Extend
Raise Lower
Mid-position
Manual switches
Internal carriage cable harness
Indicator lamp
Mid-position
Retract
Extend
Lower
Raise
Current
Earth
Raise Enable Solenoid Kissling switch PB1101310987
Retract Solenoid XCKP2121P16
Blinker Indicator lamp XCMN2102L1
Distributor 2
Solenoid
Distributor 1
Blinker transmitter
Changeover relay Retract
Changeover relay Extend
Buzzer
Blinker BN 1.5 mm² connected to No. 8 at a connection point
marked with x 2x1.5 mm² double-sheathed can contain BK/RD or BK/GY
Extend relay
Retract relay
Blinker
Buzzer
Blocking diode
Mid-position Retract Enable XCMN2102L1
Lowering valve
Hydraulic aggregate
Contactor
Earth on the pump housing
via Main fuse 100A to the battery Control fuse 40A
via battery fuse ATTENTION: Use the same fuse!
Cable indicator lamp
1x1.5 double-sheathed
to the cable indicatorlamp: Switched earth (-) comes from the lift: Lift retracted = no – Lift extends = - switched
on the pump
Spade connectors male
White cable
Spade connectors female
