4. LAPEL SYSTEM – OPTIONAL ACCESSORY TO ACL MECHANISM
Lapel system provides the operator with greater freedom when selecting the buttonhole dimensions. The operator
can sew a buttonhole with eye cut and a buttonhole without eye cut during one sewing cycle and does not need to
change the cutting knife. Another advantage of this device is the possibility to program the length and position of cuts.
Lapel system can be tted to the S311 AF and LTT models with integrated ACL system. There are three versions
ACL-LP1, ACL-LP2 and ACL-LPE which differ in the range of cut.
LAPEL SYSTEM
Lenght of cut ACL-LP1 ACL-LP2 ACL-LPE
Lenght of cut in buttonhole with eye 13-26 mm 13-30 mm 13-30 mm
Lenght of cut in lapel buttonhole 08-21 mm 12-25 mm 6-25 mm
Knife
3,2x5,0 (26 mm)
19.0087.0.442
3,2x5,0 (30 mm)
19.0087.0.443
3,2x5,0 (30 mm)
19.0087.0.443
Cutting block
26 mm
19.0064.5.959
30 mm
19.0064.5.964
Standard ACL
19.0064.5.958
Pneumatic kit 12.0008.3.546
Connecting cables
06.1900.0.015
06.1900.0.016
Air tube 12.0008.3.431

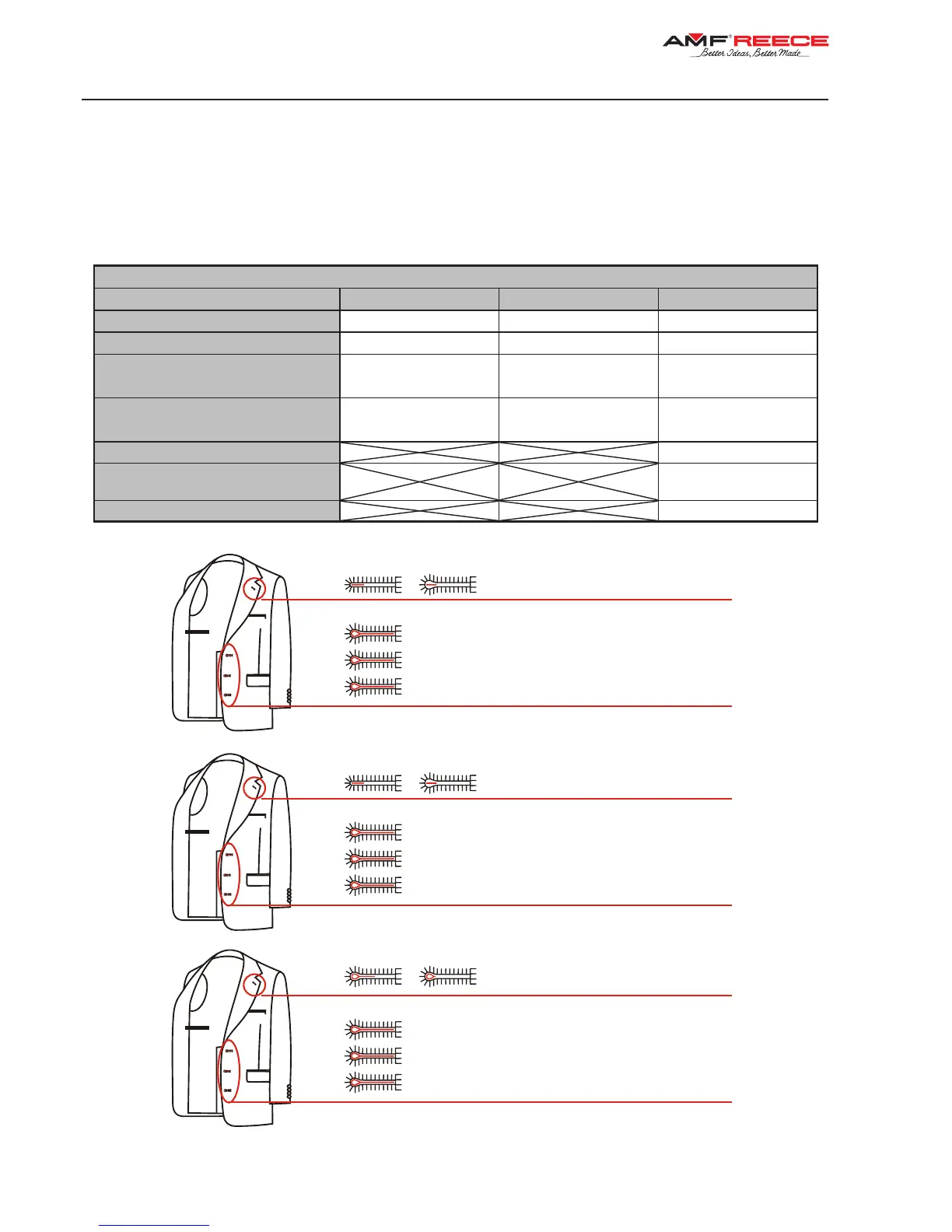

ACL-LP1 ON - 8-21 mm lenght of cut
straight parts (partial cut)
ACL-LP1 OFF - 13-26 mm lenght of cut
- whole buttonhole with eye
ACL-LP2 ON - 12-25 mm lenght of cut
straight parts (partial cut)
ACL-LP2 OFF - 13-30 mm lenght of cut
- whole buttonhole with eye
ACL-LPE ON - 6-30 mm lenght of cut
straight parts (partial cut)
ACL-LPE OFF - 13-30 mm lenght of cut
- whole buttonhole with eye
