AMF S-311 - Thread Stand Installation

S-311
1-19
Released:01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
B - MACHINE ASSEMBLY
6. THREAD STAND INSTALLATION

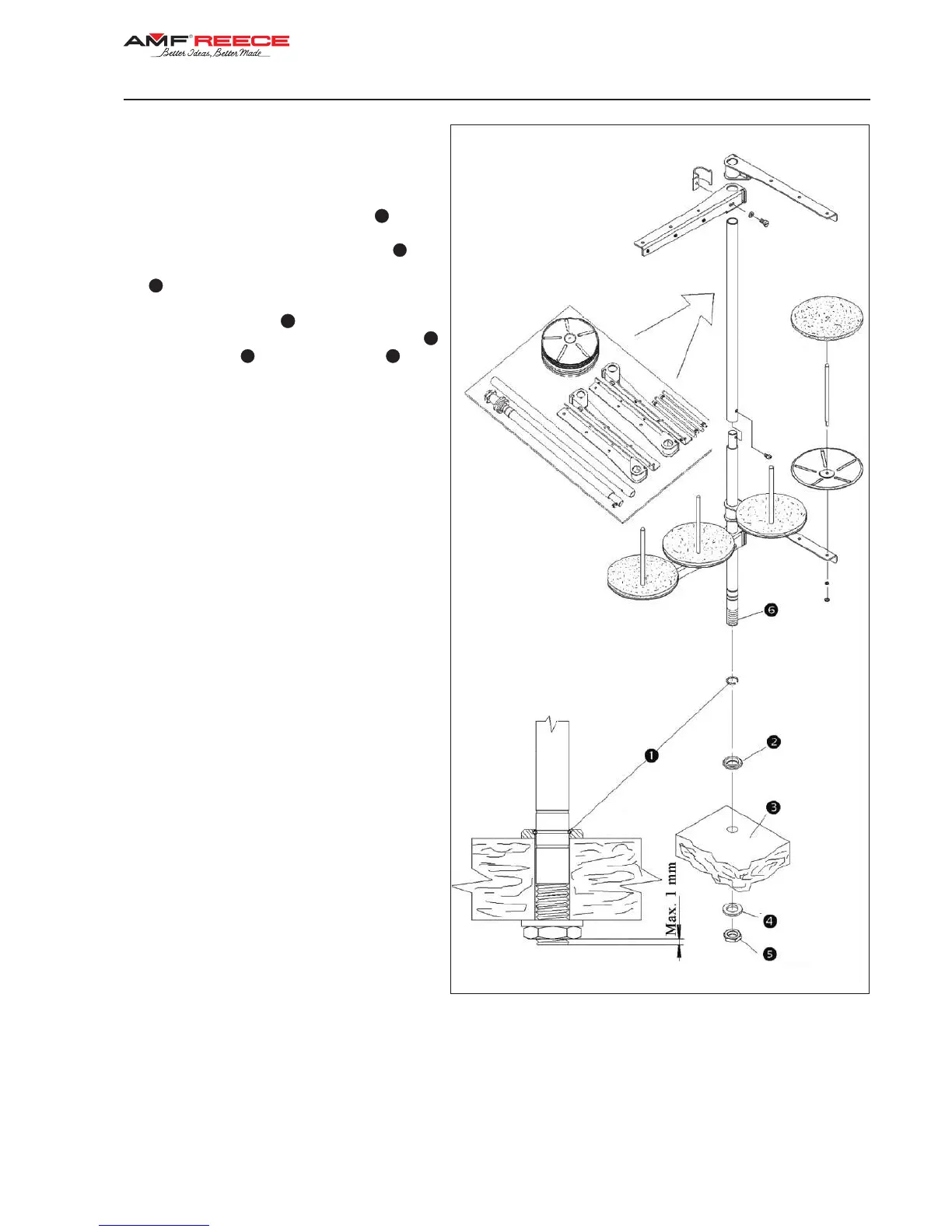

6.1. Put the thread stand together according to
the drawing.
6.2. Position of the locking ring
1
allows
assembly of the thread stand for various thickness
of the table top. Threaded end of the post
6
must
not extend more that 1 mm through the locking
nut
5
.
6.3. Insert the washer
2
and the post into the
hole provided in the right rear of the table top
3
.
Insert the washer
4
and tighten the nut
5
.
Picture 6.1
