AMF S-311 - 3. BEDPLATE HOME POSITION ADJUSTMENT

141 mm
132,5 ± 0.2 mm
S-311
1-43
Released:01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
E - STANDARD MACHINE ADJUSTMENT

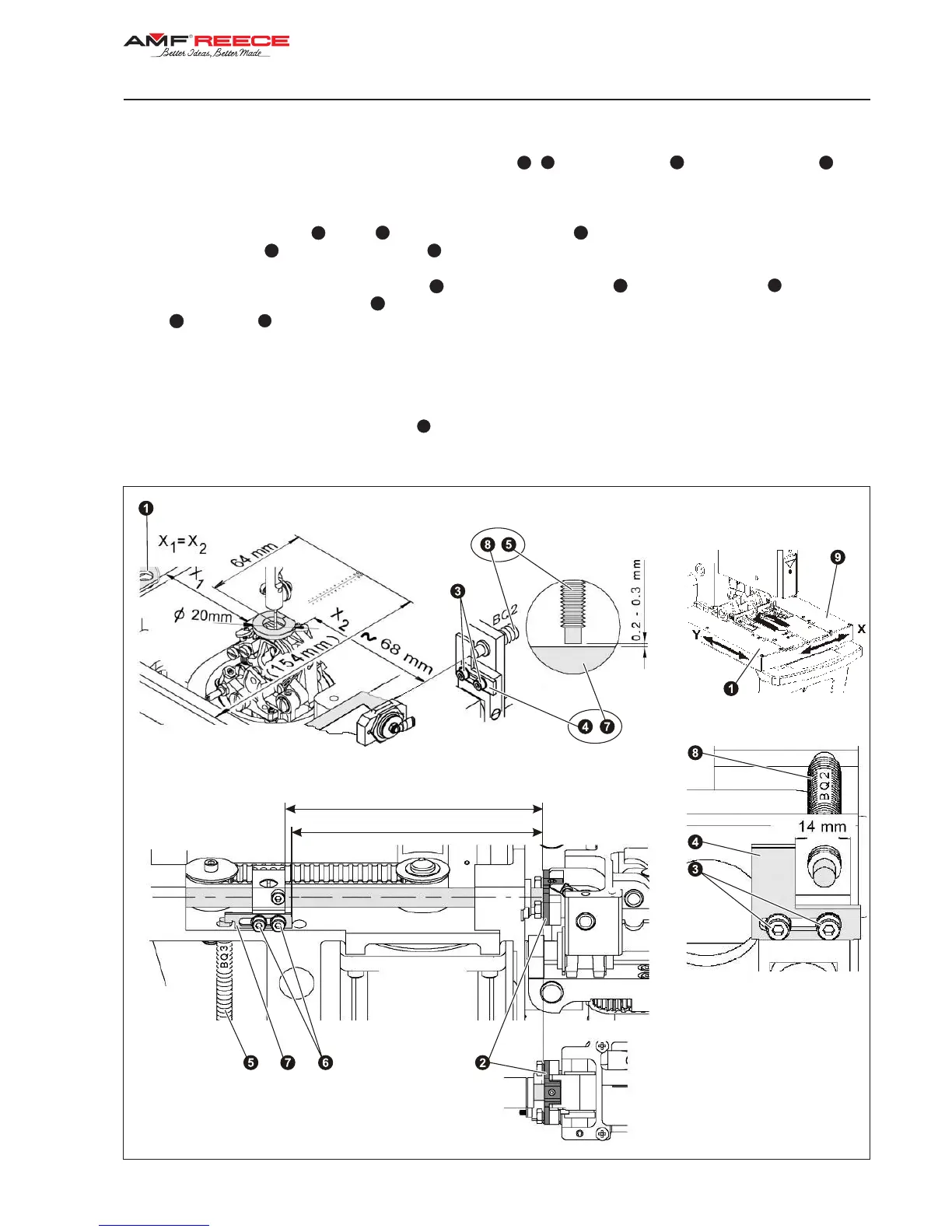

3. THE BEDPLATE HOME POSITION ADJUSTMENT
The bedplate home position is given by position of the plates
4
,
7
and sensor BQ2
8
for axes X and BQ3
5
for Y.
Sensor plate screws are painted from the manufacturer, and only a service technician from AMF REECE can perform
this operation during the guarantee period .
3.1. Adjust the sensor plate
4
(BQ2)
8
after loosening the screws,
3
to approximately 14 mm. Remove the right
cover of the bedplate
9
to access to the plate
4
.
3.2. After removing the left cover of the table
1
adjust the sensor (BQ3)
5
. Loosen the screws
6
to obtain the
132,5 ± 0.2 mm from the shaft holder
2
to the plate edge - see picture. Belt holder is set to 141 mm from the shaft
holder
2
. The plate
7
should be 32mm long.
3.3. The clearance between the sensor and plate must be 0.2 - 0.3mm. More clearance causes improper sensor
function.
3.4. Adjust the position of the sensor plate
7
if the dimension from inner puncture in the eye top and the centre
needle is not 64mm. Approximately 154mm from the adge of the bedplate, see section E8).
