C - MACHINE INSTALLATION
2. KIT ACL-LPE INSTALATION

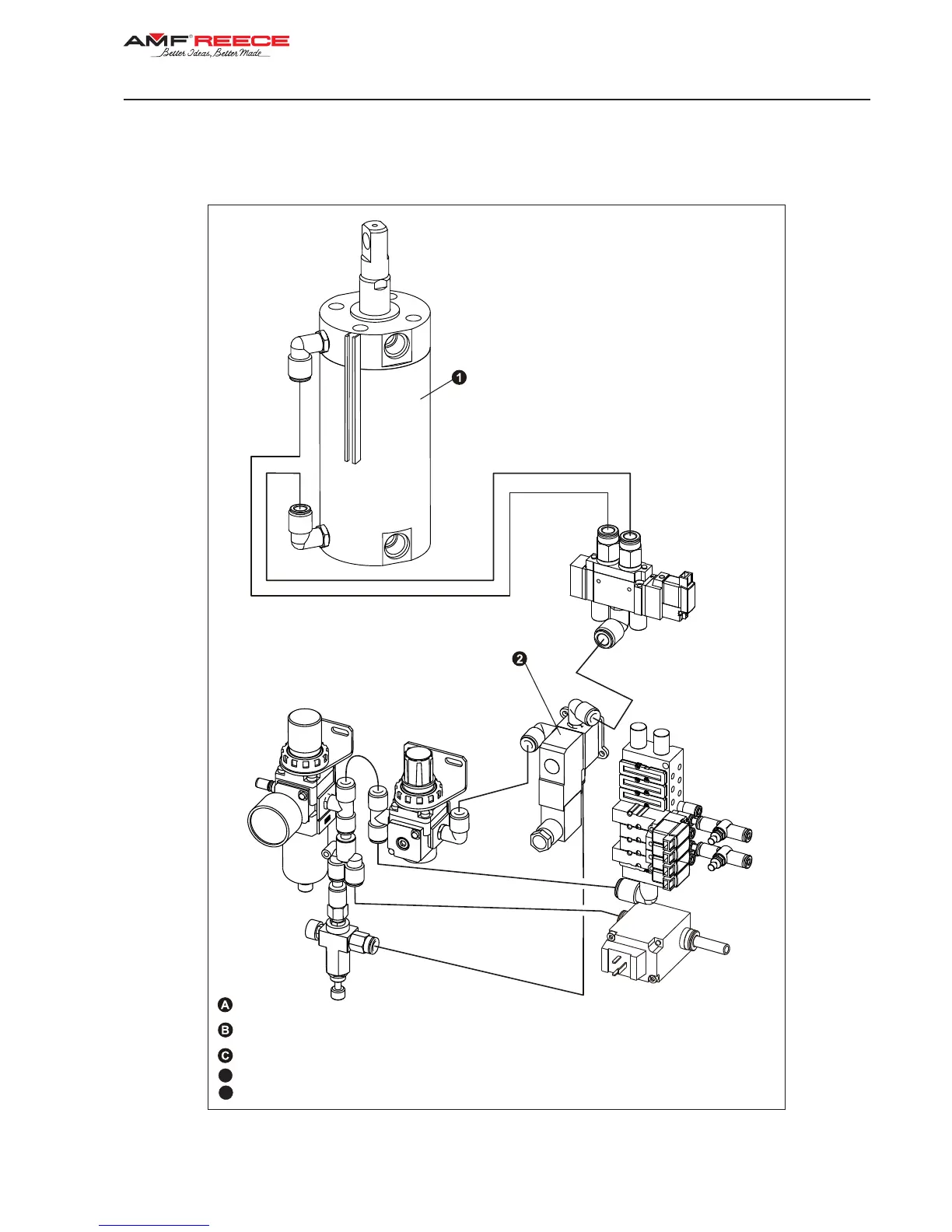

To connect the pneumatic folow the instruction in this schema.
Main regulator
Auxiliary cutting regulator
Auxiliary LPE cutting regulator
1
Cutting
2
Switch valve for cutting
