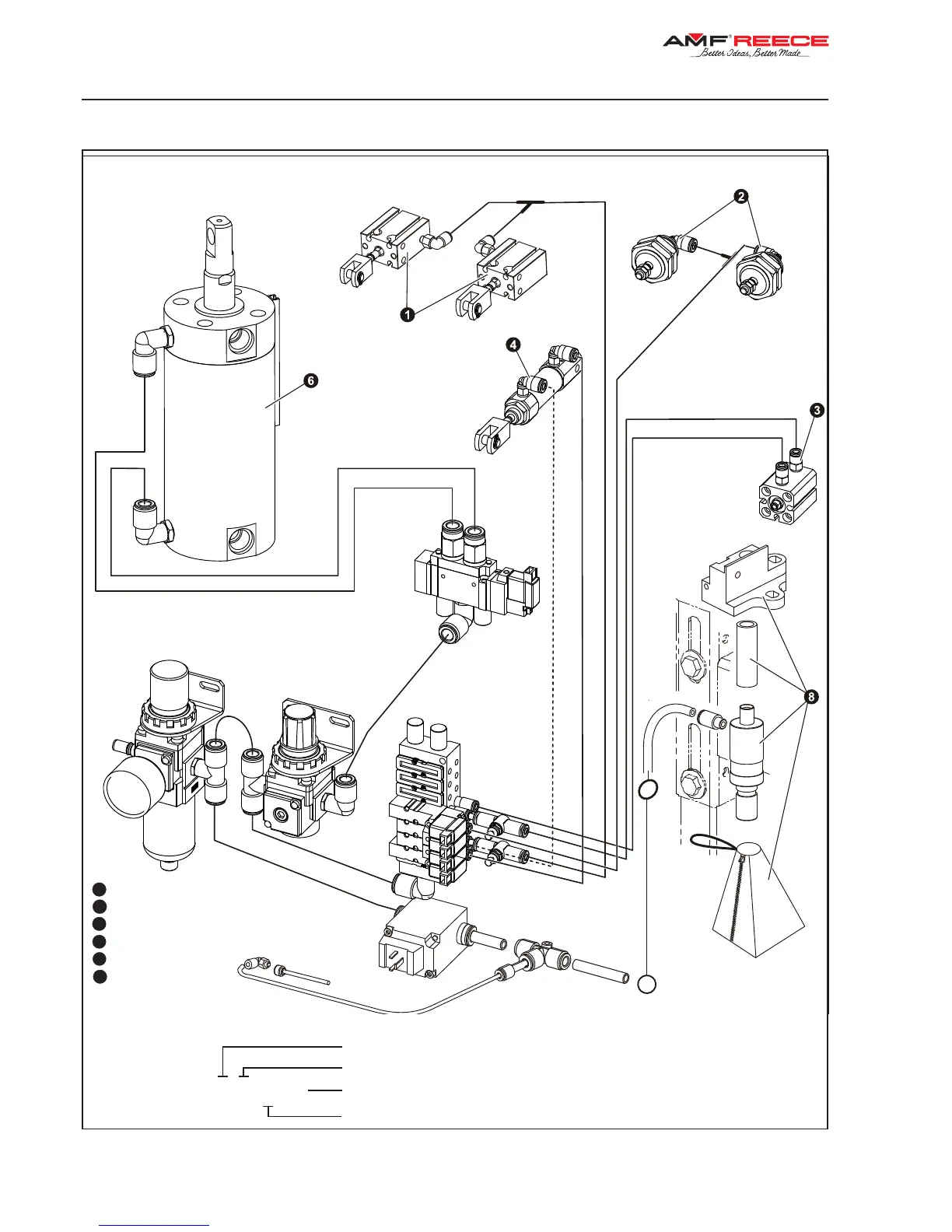

AMF S-311 - AF - Pneumatic System Connection

J X X X
A
A
J6A
J6B
J1B
J4B
J4A
J3B
J2B
J3A
J0A
J8A2
J8A1
4 bar
6 bar
4
1
3
2
6
J0A
8
S-311
1-14
Released:01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
B - MACHINE ASSEMBLY
S-311 AF - PNEUMATIC SYSTEM CONNECTION
Tubes
identication
air distribution
0, 1, 2 — X => distribution from a regulator
0,1,2—Xpneumaticcylinderidentication(therstnumberis0butisnotmarked)
A ; B; C
1
clamp feet up/down
2
clamp feet spreading
3
upper thread draw-off
4
upper thread trimming
6
cutting
8
suction
