AMF S-311 - 5. SEWING MECHANISM HEIGHT CONTROL

0,1 — 0,15 mm
(10 mm)
B A
33,5 -0,2 mm
S-311
1-45
Released:01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
E - STANDARD MACHINE ADJUSTMENT

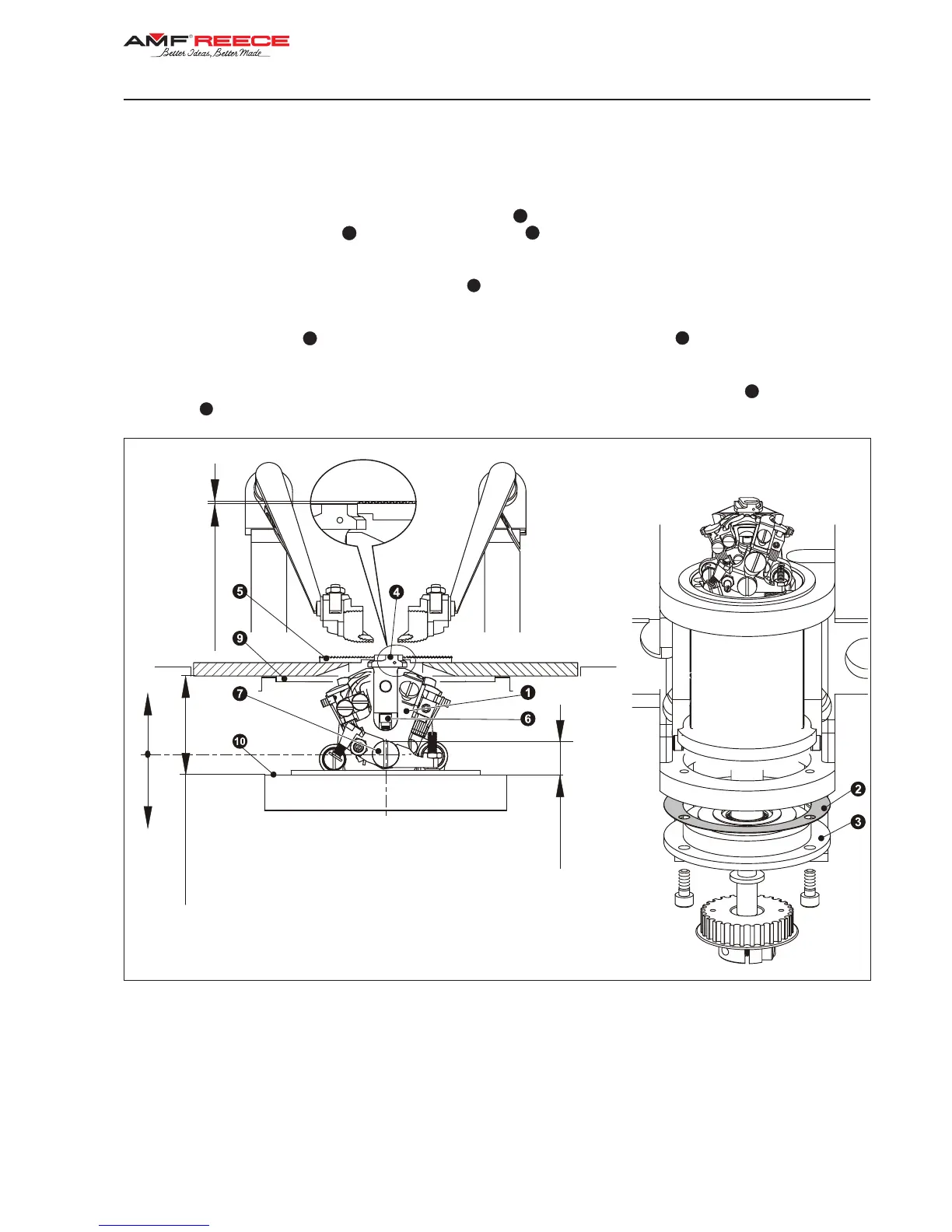

5. THE SEWING MECHANISM HEIGHT CONTROL
Before any other adjustment, we recommend to check, if the height of the sewing mechanism of the loopers, spreaders
and stitching plate is adjusted properly.
5.1. The height 6,5 mm of the sewing mechanism support
1
, from the surface for the anvil can be readjusted by
inserting or removing the washer
2
underthebearingange
3
. The support is decreased, if the washer is added
- in B direction, if the washer is removed, the support is increased - in A direction. The washers are supplied with the
thickness 0,1 (19.0019.6.405) or 0,2 mm (19.0019.6.404). The adjustment can be checked with the sliding gauge - 10
mm from the top edge of anvil base to Ø of the bung
7
.
5.2. After inserting the stitching plate, it is necessary to check the distances between the top edges and the top
surface of the clamp plates
5
. This distance is adjusted at the factory with the screw
6
under the stitching plate for
0,1 — 0,15 mm. The screwis secured with the LOCTITE 243.
5.3. Forabovementioneddistances,thefactoryprovidestheheightofthettingplatessurface
9
from the surface
to the anvil
10
in lange 33,5 -0,2 mm.
