14. ELECTRONIC SYSTEM ERROR MESSAGES

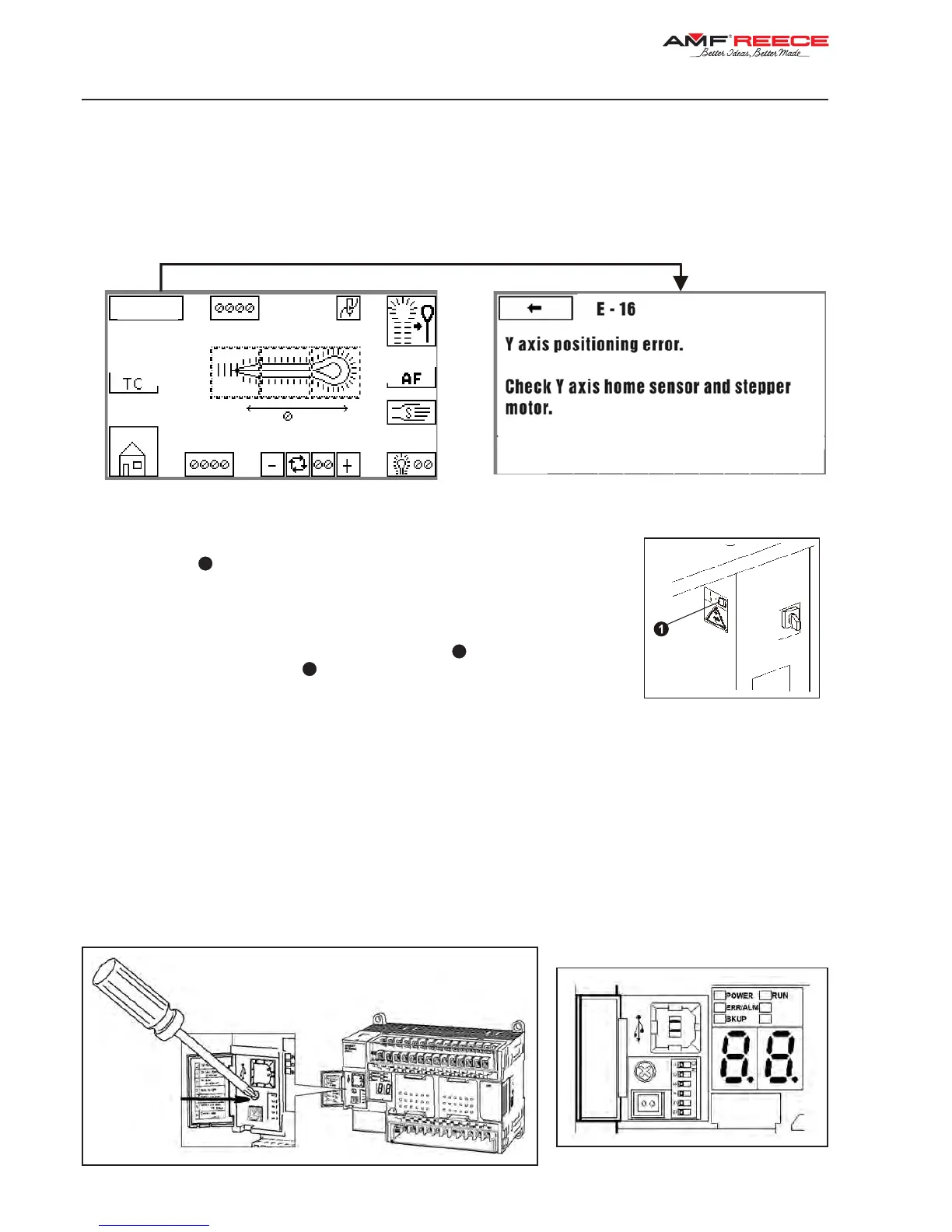

If an error message appears on the display, press it 1 The screen 2 with a description and a correction of an error
message appears on the display (see Troubleshooting).
15. MANUAL CUT MODE
The green button
1
outside of the control box, activates cutting independent
oftheprogram.Itmaybeusedtogetherwithpressingthefootpedaltotherstposition,
so the clamps hold the fabric to check if the cut is clean.
Progress:Insert thefabric under theclamp feet,switch thefoot pedal intothe rst
position, hold this pedal in this position and press button
1
. Cutting lever will cut the
fabric everytime, when the button
1
is pressed. Then release the foot pedal.
16. PLC ADJUSTMENT BY MACHINE TYPE
When changing PLC in the machine, it is necessary to adjust the potentiometer position by machine type we are
using. To adjust to required position, use the cross screwdriver. This adjustment is made on turned on machine in the
machine control box. It is necessary this operation is made by qualied person only!
Machine type adjustment:
AF, CT, LTT, RDE adjust to 28 (range 0-50)
AF+I a CT +I adjust to 78 (range 51-A0)
AF/ACL, LTT/ACL adjust to C8 (range A1-FF)
