D - OPERATING THE MACHINE FUNCTIONS

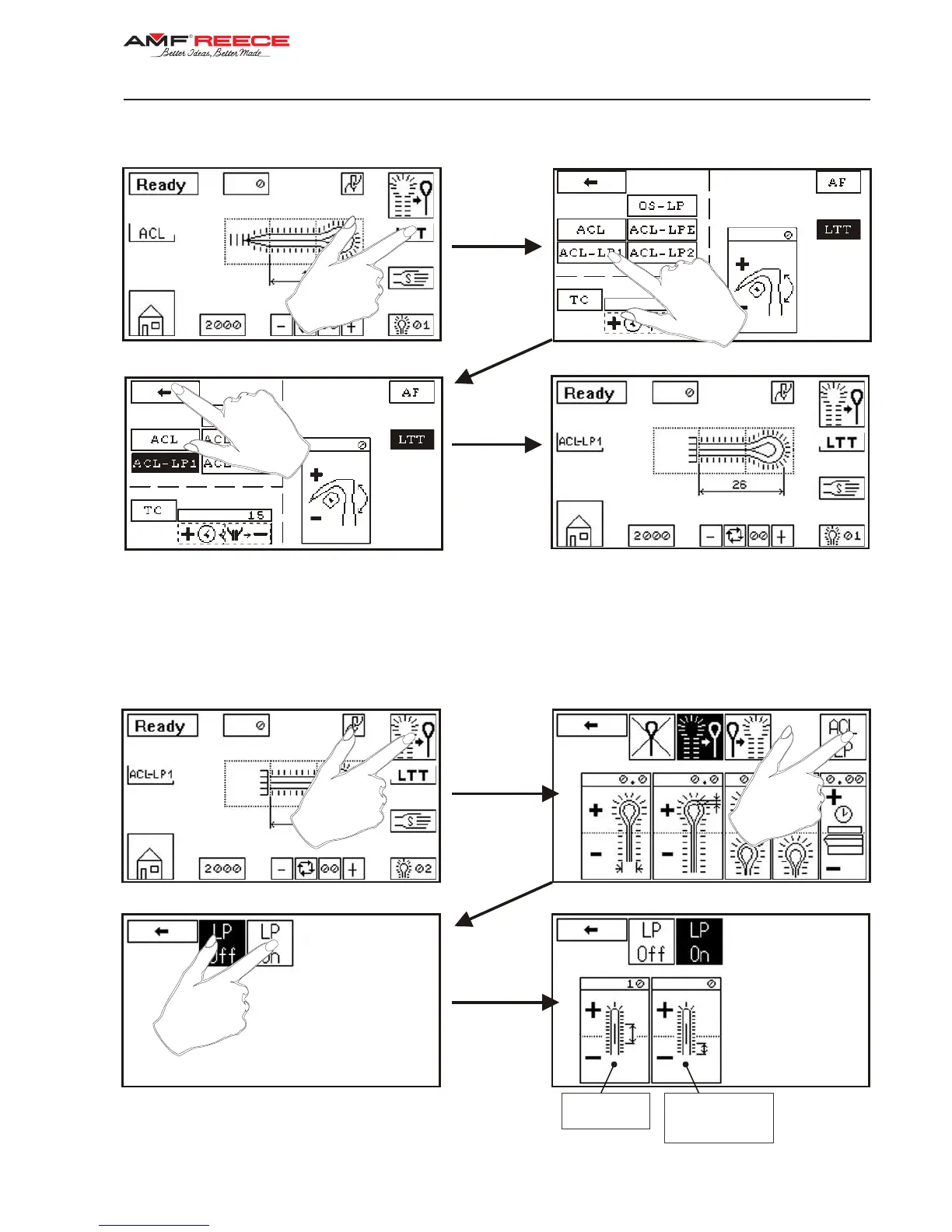

4.1. SETTING UP THE MACHINE FOR ACL LP1 (ACL-LP2, ACL-LPE) VERSION
Once the ACL-LP1 system is activated, a buttonhole with eye cut along the whole sewing appears on the display. The
length of cut is set up automatically according to the selected model; in this case 13-26 mm. this type of buttonhole is
used on jacket front. If you want to modify the buttonhole parameters, follow instructions in chapters on pages 1-29
1-40 in the S311 standard manual.
Back to
main screen
Key to set up
length of cut
Key to set up
distance of cut
from sewing start
S-311 main sceen
S-311 main sceen
S-311 main screen
Activation of ACL-LP system
Setting up cutting parameters in ACL system
Activation of ACL-LP system
4.2. SETTING UP THE LAPEL BUTTONHOLE FOR ACL-LP1 (ACL-LP2, ACL-LPE) VERSION
