B - MACHINE ASSEMBLY
3. CONNECTION OF THE MACHINE HEAD WITH THE CONTROL BOX

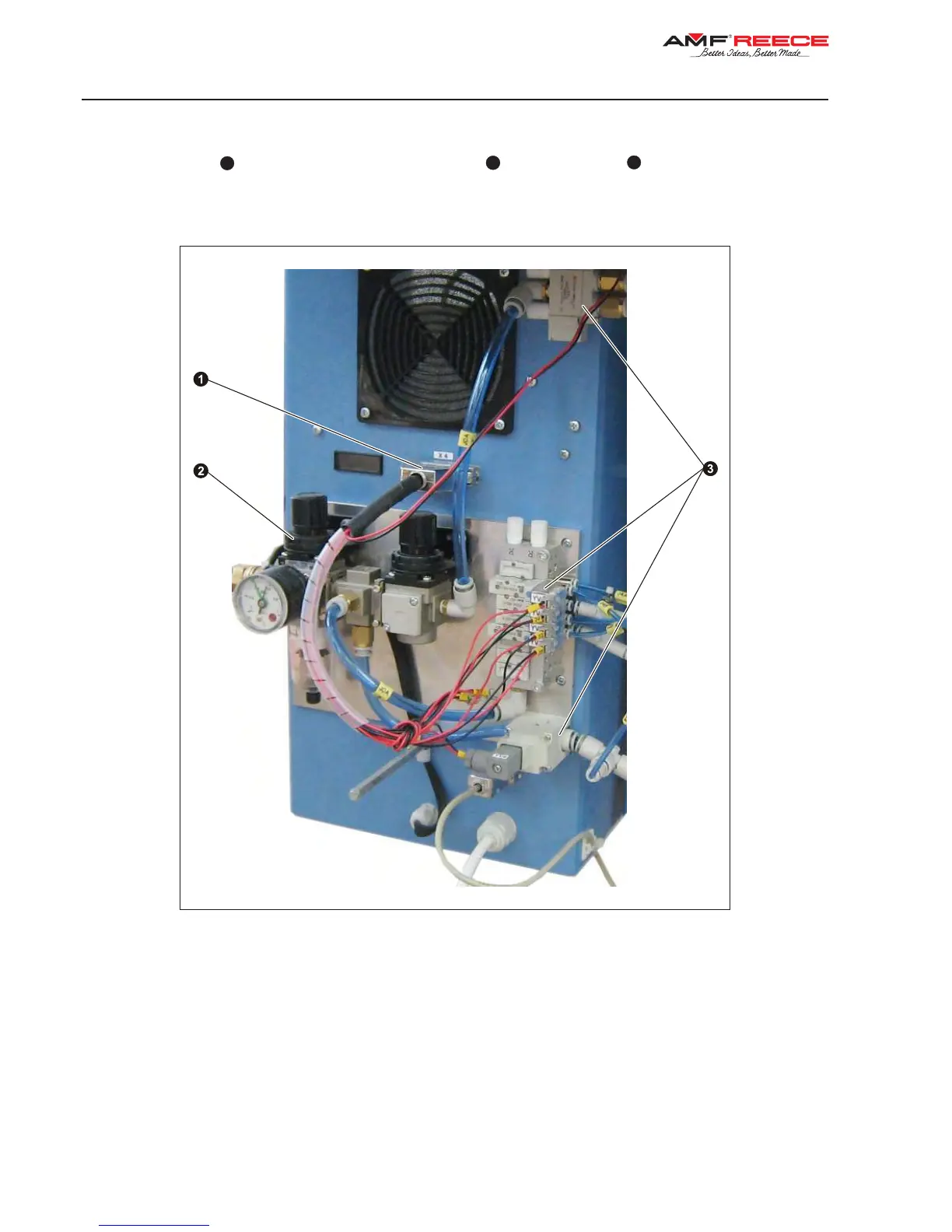

3.1. The control box
1
contains the control system, regulator
2
and valve terminal
3
for controlling the pneumatic
cylinders.
3.2. The machine is connected from the plant. If disassembled, connect the machine as follows:
- blue pneumatic tubes J1A/B — J9A/B connect with equally marked electromagnetic valves.
- cables for stepping motors marked X, Y, R connected with equally marked cables.
- remaining cable is used for sensor and switches connection with box.
