AMF S-311 - 9. NEEDLE BAR HEIGHT SETTING






9,5 mm
S-311
1-51
Released:01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
E - STANDARD MACHINE ADJUSTMENT

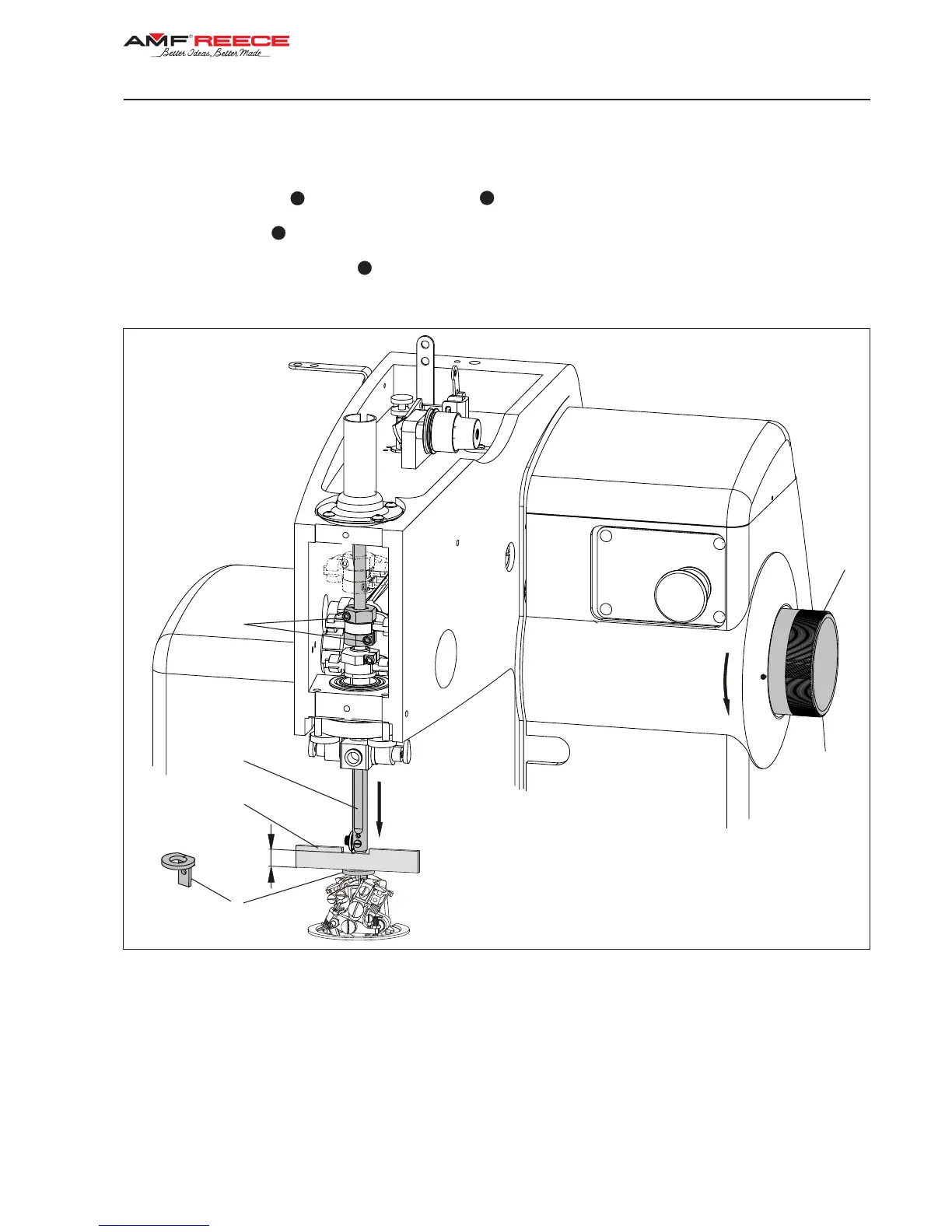

9. SETTING THE NEEDLE BAR HEIGHT
9.1. Remove the machine head front cover.
9.2. Turn the handwheel
1
and adjust the needle bar
2
to the lowest position.
9.3. Insert the gauge
5
, height 9,5 mm, between the needle bar and bedplate.
9.4. If incorrect, loosen the screws
3
and move the needle bar up or down to obtain correct distance. Tighten the
screws.
adjustable throat plate
