AMF S-311 - 20. THREAD TENSION AND DRAW OFF SETTINGS

1J A
+
-
+
-







+
-
+
-

S-311
1-65
Released:01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
E - STANDARD MACHINE ADJUSTMENT
Recomended thread tension: upper thread
lower thread
thread draw off spring
0,8 N cotton
0,5 N cotton
0,3 N cotton
1,0 N PES
0,8 N PES
0,5 N PES

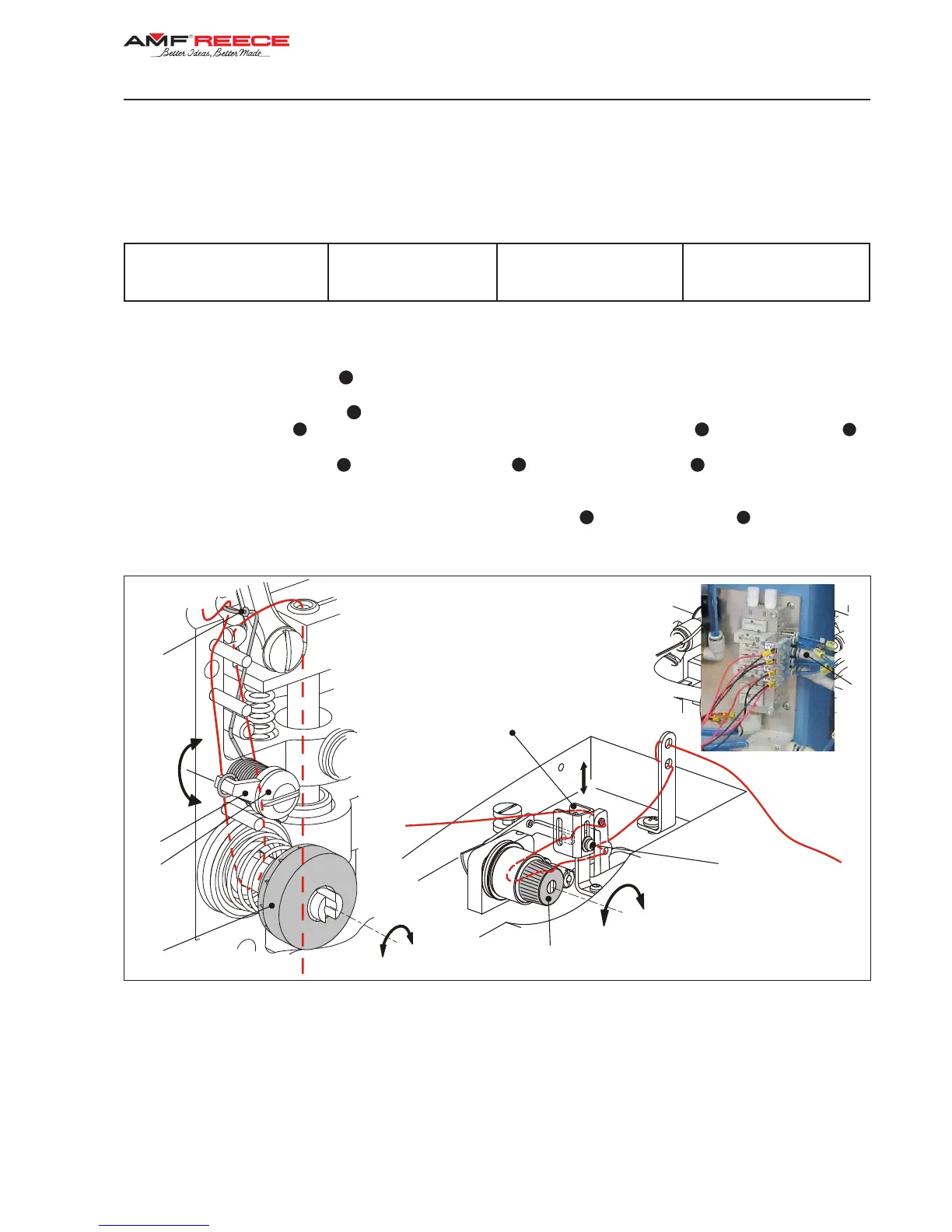

20. SETTING THE THREAD TENSION AND THREAD DRAW OFF
Athreadtensionchangemaybeneededifthethreadandfabricchange.Thethreadtensioninuencestheappearance
of the buttonhole. It is necessary to use quality threads with little elasticity. Check to be certain all parts that the thread
passes through are smooth and polished with no burrs or sharp edges.
When using lower quality thread it is necessary to exchange the spring with the spare one, which is in the drawer of
the machine.
20.1. By turning the tension knob
1
clockwise, the top thread tension increases, anti-clockwise decreases.
20.2. By turning the tension knob
2
clockwise, the bottom thread tension increases, anti-clockwise decreases.
After loosening the screw
6
, it is possible to adjust the preloading of the take-up spring
8
by turning the lever
7
.
20.3. Increase the stud pressure
4
by loosening the screw
3
and moving the bracket
5
. The ends of the threads
will be extended during the trimming.
20.4. Thread tension size is possible to adjust after loosing the screw
8
moving thread guide
7
up (increasing) or
down (reducing).
