AMF S-311 - C - Machine Installation; Optical Sensor Instalation

1 2 3 4 5 6 7 8 9 10
PLC
BU
BK
NB
X1
11 12 13
1.07
S-311+ ACL
1-10 ACL
C - MACHINE INSTALLATION
Released: 01/2014
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606

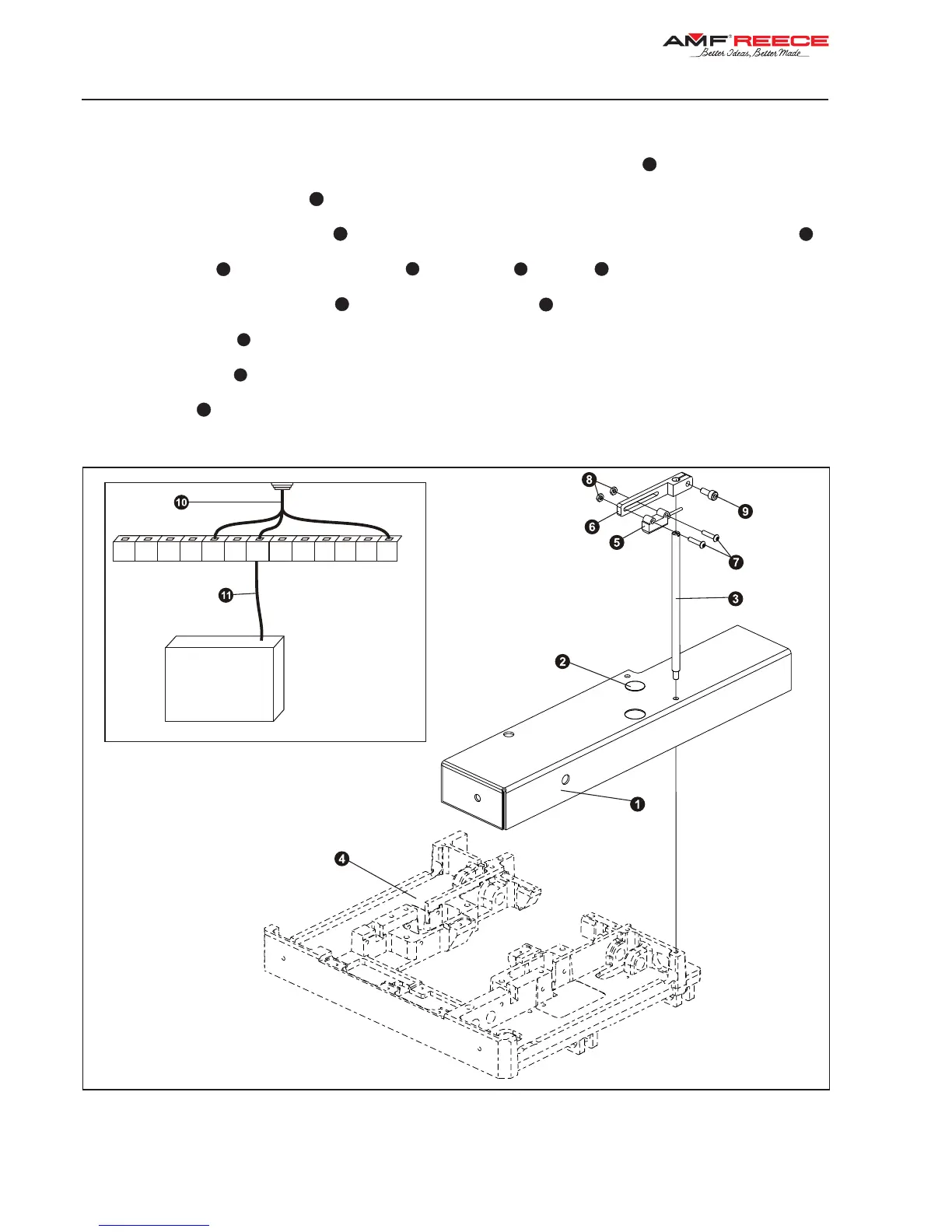

1. OPTICAL SENSOR INSTALATION
1. Dismantle the right cover of the machine bedplate and replace it with the new cover
1
supplied in the kit.
2. Place and seal the reective foil
2
into the hole already made in the bedplate.
3. Put the vertical holder of the sensor
3
through the opening in the cover and t it onto the machine bedplate
4
.
4. Mount the sensor
5
onto the horizontal holder
6
using screws
7
and nuts
8
.
5. Place the kit onto the vertical holder
3
and secure it with the screw
9
.
6. Put the sensor cable
10
through the gap in the cover of the machine sewing head.
7. Fit the leading wires
10
into the clamps provided in the switch board.
8. Connect cable
11
trought distribution frame and PLC entry 1.07.
