AMF S-311 - Scheme of the Lubrication Distribution

L
5
L
4
L
3
L
2
L
1
S-311
1-69
Released:01/2013
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
F - MACHINE MAINTENANCE
3. SCHEME OF THE LUBRICATION DISTRIBUTION
Themachineisequippedwithneedleandballbearings,whichincombinationwithtwolubricationcircuitssignicantly
decrease required maintenance.
Circuit I for lubrication of the arm has oil in reservoir of the barrel. The lubrication of lower unit is made by oil in frame
recess - circuit II. In case of replacement of any branch of distribution it is possible to order the tube sets and wicks.

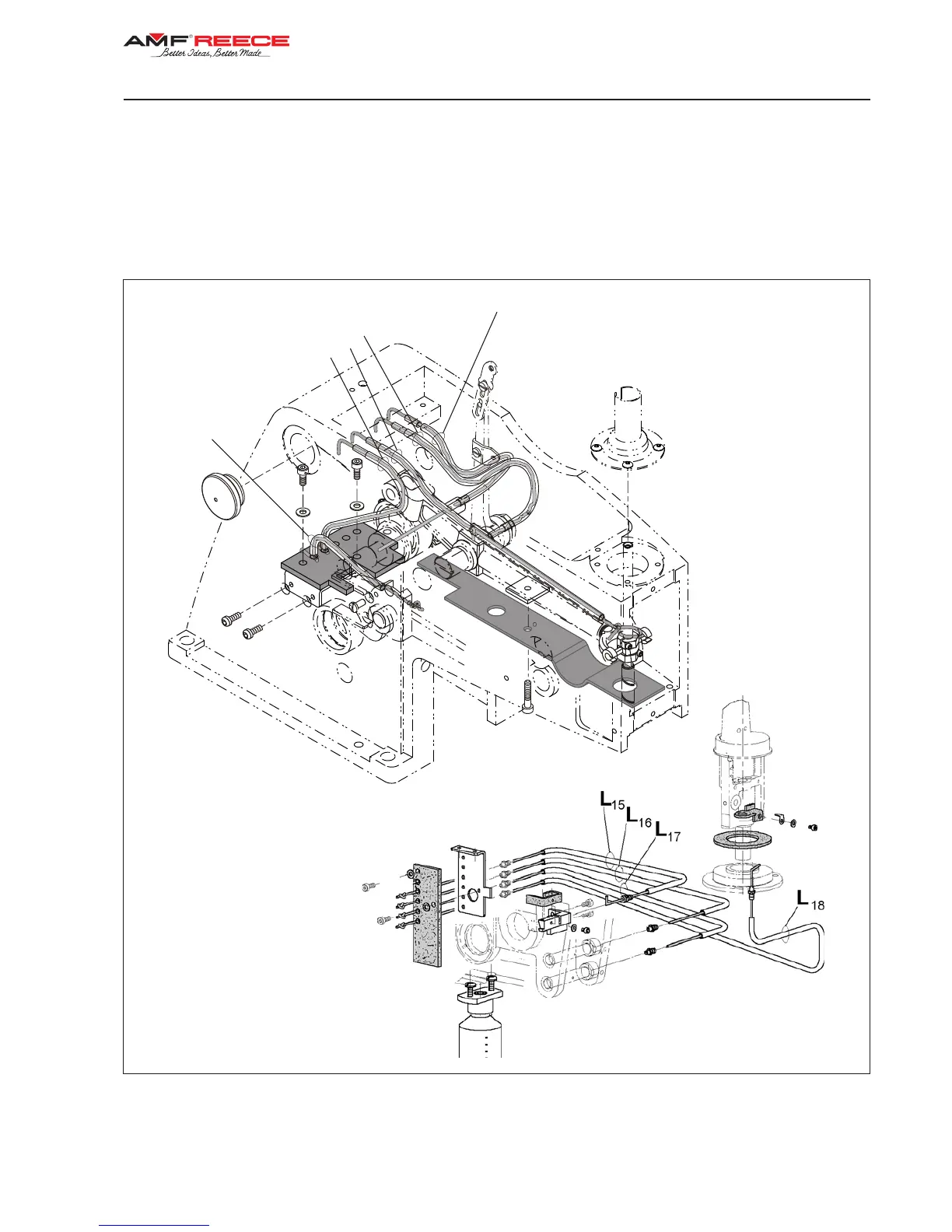

Replace according to the illustration below:
Circuit I
Circuit II
