E - STANDARD MACHINE ADJUSTMENT
6. MECHANISM ADJUSTMENT FOR MATERIAL CLAMPING
WARNING! Before doing any adjustments, disconnect the
air supply and deate the test of compressed air in the
machine.

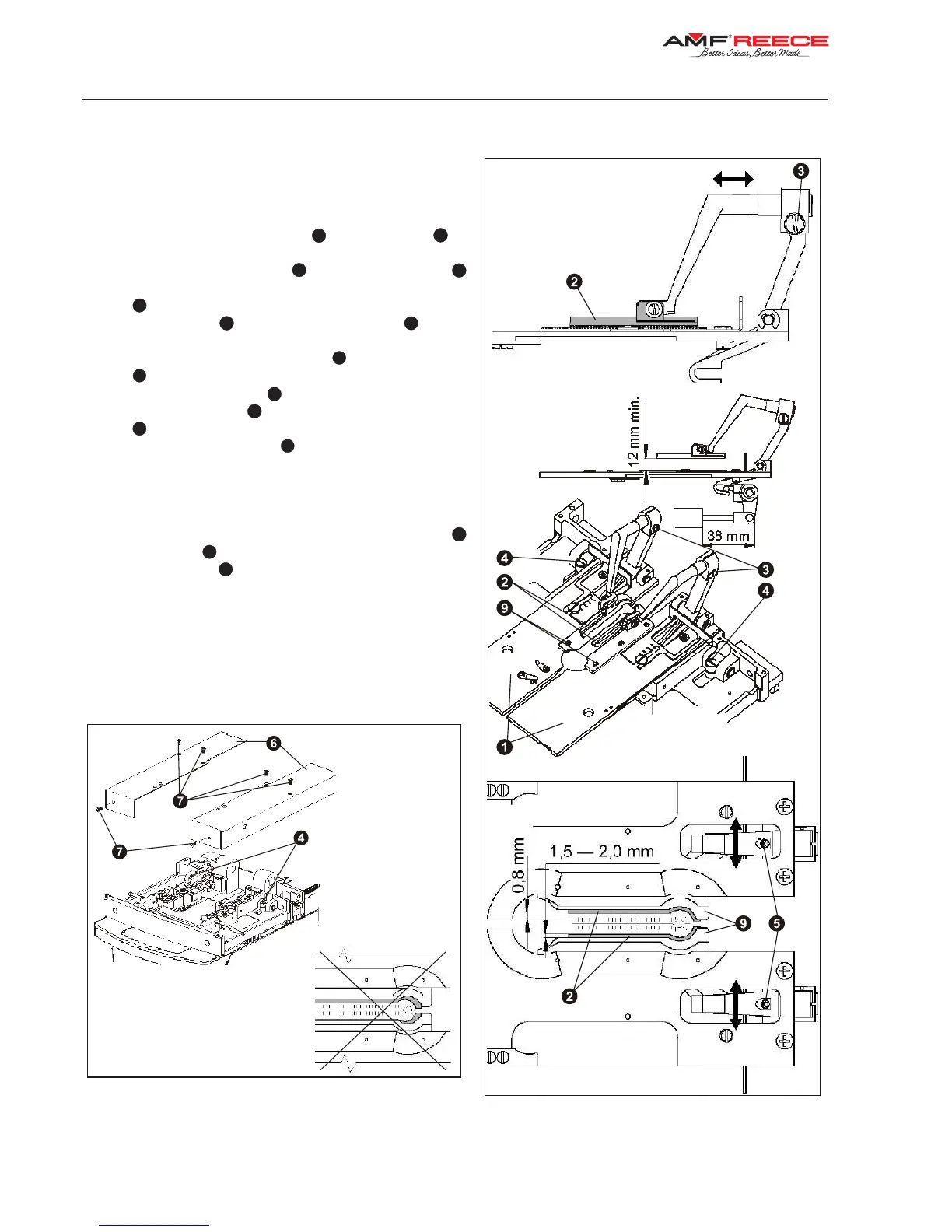

The basic clamp plates adjustment
1
with clamp feet
2
is
possible to modify after removing from the machine.
6.1. After loosening the screws
3
adjust the clamp feet
2
from front to rear (in the Y axis) and after loosening the
screws
5
from left to right (in the X axis)
6.2. The adjust feet
2
clamp against the plates
9
for 1,2
- 2,0mm overlap.
6.3. Remove the side table covers
6
by removing the
screws
7
.
6.4. Insert the clamp plates
1
into the machine.
6.5. Adjust the plates lift
2
for 12mm and after loosing the
screws
4
tighten them again.
6.6. Put the side table covers
6
on and screw them.
6.7. Check the proper adjustment when sewing.
Recommended space between the clamp foot and needle
during the outer penetration is 1 mm. If the bite size is
changed, ensure this space by covering the clamp feet
2
over clamp plate
9
- measure A to values. Adjust after
loosening the screw
5
and shifting the clamp plate arm to
the correct needed clearance.
Asymmetrical clamp
plates adjustment.
