1. OPERATION
1.1. With the machine in the home position, before sewing,
the manufacturer recommends 3 minutes for warm up.
1.2. Be certain that the machine is threaded c o r r e c t l y
see section C3, and required buttonhole appears on the

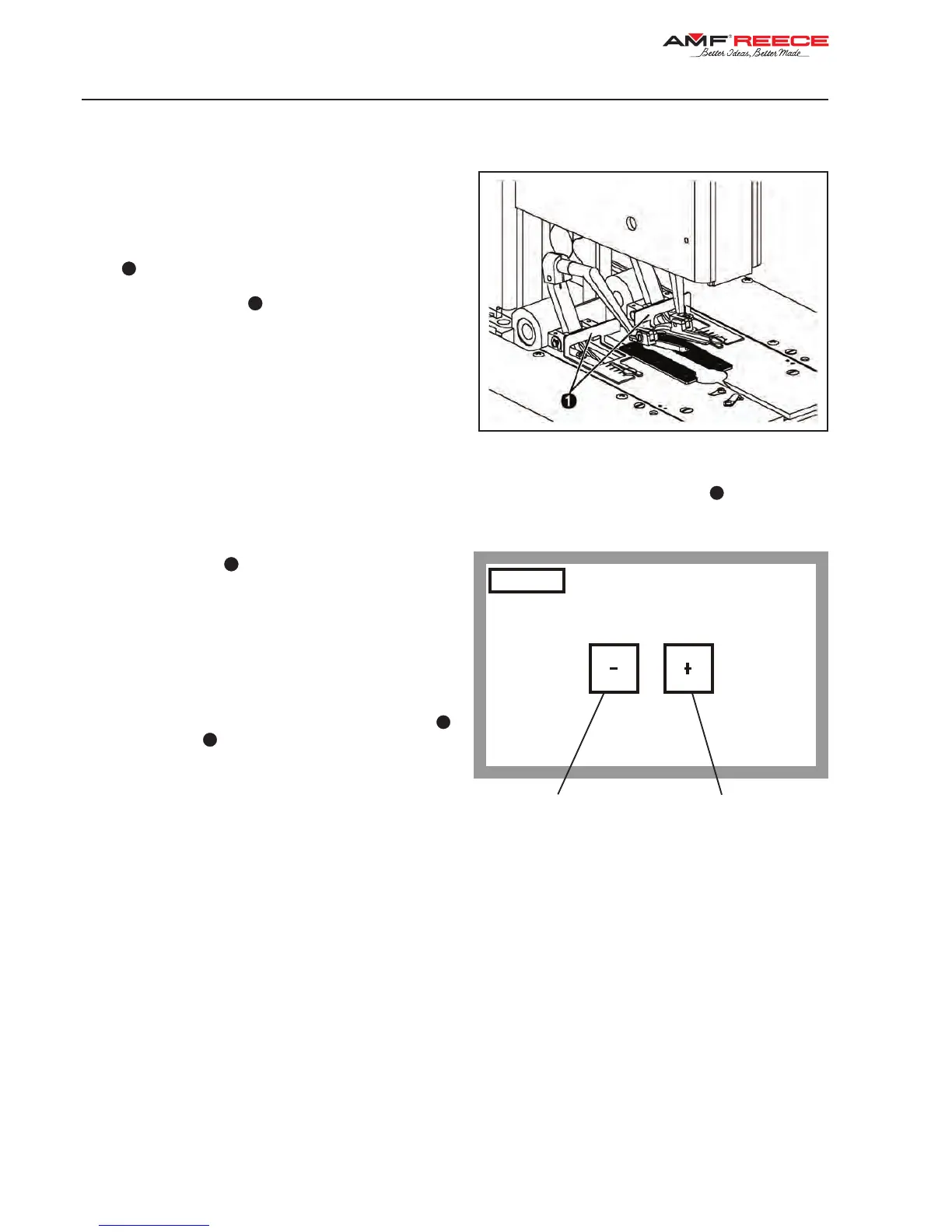

display. Insert the fabric under the clamp feet. Use the rear
stops
1
to position the buttonhole.
1.3. When the foot pedal
2
ispressedtotherstposition,
the fabric is clamped by the clamp feet. (When the pedal is
released, the clamp feet rise.)
1.4. When the foot pedal is pressed to the its second
position, the sewing is started. When the buttonhole is
sewn, fabric is cut and the upper thread is trimmed, clamp
feet rise and machine returns to its home position.
1.5. When the clamp feet are up, it is possible to move the fabric for sewing the next buttonhole.
1.6. Immediate stopping in any place of the cycle is possible by the EMERGENCY STOP button
3
on the machine
head.IftheEMERGENCYSTOPisreleased,themachinestops(theawE01,seemanualsection-troubleshooting).
1.7. If the foot pedal
2
is pressed before the buttonhole
isnished,sewingcycleisinterrupted,theclampfeetwill
not rise and the needle will go to the top position. The
folowingscreenwillbedisplayed:sewingcycleisnished
by pressing the pedal again.
NOTICE! Sewing cyccle continues after pressing the
pedal!
1.8. Whenyourworkisnished,switchofftheswitch
4
,
pull out the plug
5
from the socket and close the air
supplyand close the air supply.
2 stitches backard
movement
2 stitches forward
movement
