4. MACHINE LUBRICATION
4.1. It is necessary to remove preserve oils and lubricate the places shown below before the machine is switched
onforthersttimeorafteralongidleperiod.UseESSOTERESSO32orsimilarquality.

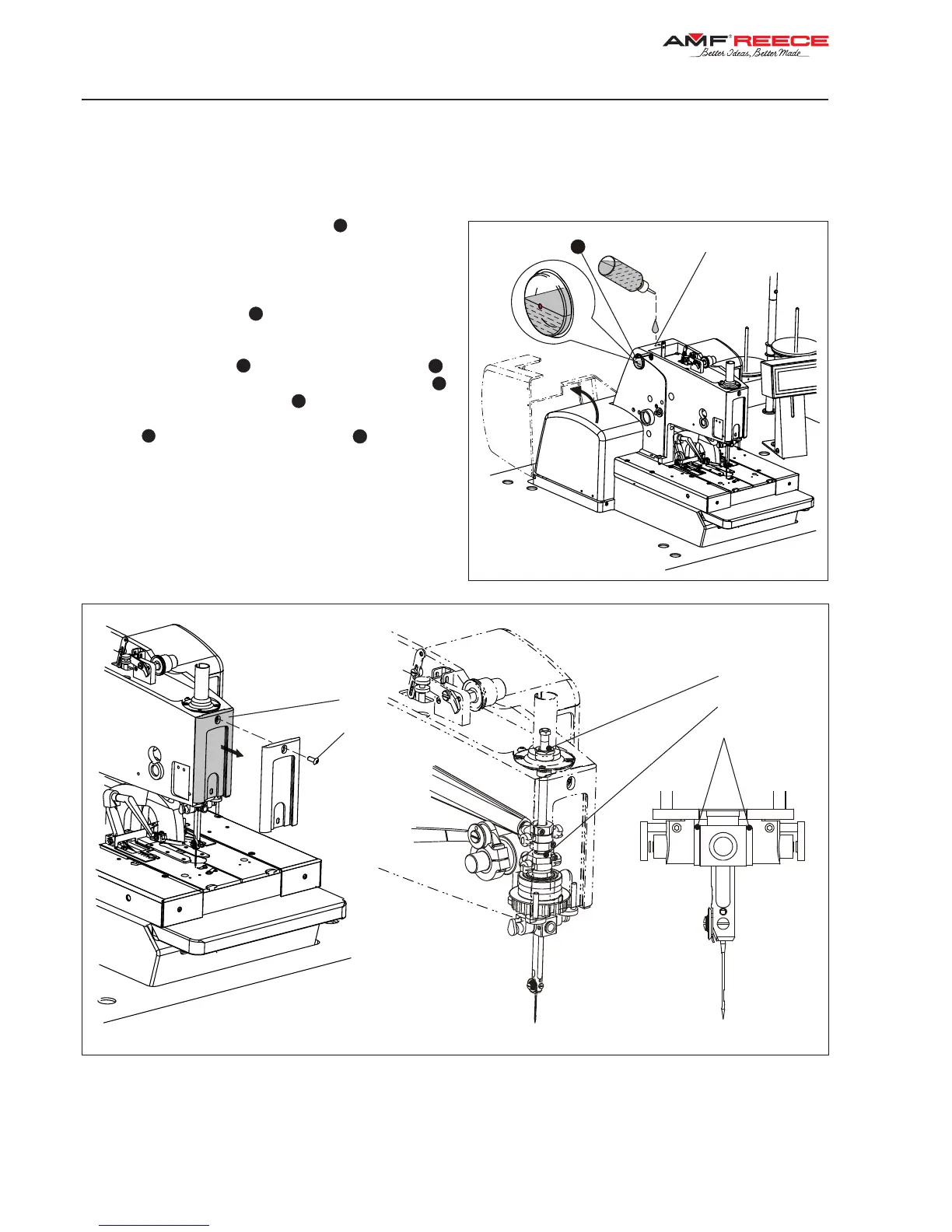

4.2. The amount of oil in the reservior
15
is indicated by
the red mark. Too much oil may cause its overowing
from the base area.
4.3. Thereservoirislledbyapproximately10 cm3 of
oilthroughllingopening
1
.
4.4. The lubrication of the needle bar is performed after
unscrewing the screw
3
and removing the cover
2
.
Few drops of oil drop on needle bar above the bearing
4
, on the centre of the needle bar
5
to the area where the
spiral lubricating groove is and to the space between the
washers
6
and surface. Install the cover
2
.
