S-311
1-71
Released:01/2013
E-mail: service@amfreece.cz; webside: amfreece.com
Phone: +420 582 309 146; Fax: +420 582 360 606
F - MACHINE MAINTENANCE

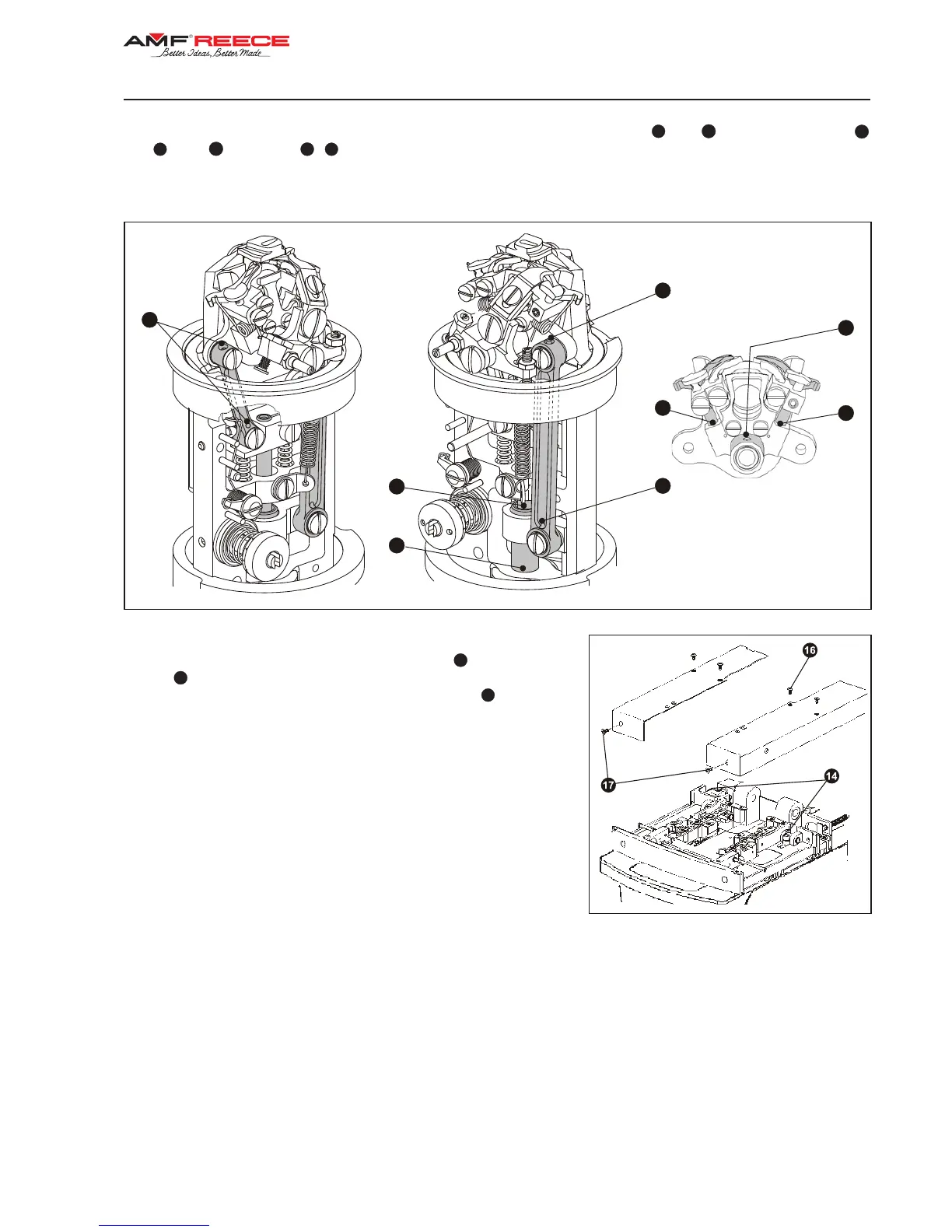

4.5. Remove the feet plate according to the part E2, point 2 and oil the bushing
7
and
8
, rod of the spreader
9
and
10
, stud
11
and shafts
12
,
13
by one or two drops of oil to the marked places on the drawing shown and on the
machine are those places marked by red dors. To access to the shafts, tilt the machine head after opening the rear
cover and after turning the race by hand according to the section E2 point 2,3.
4.6. Remove the side covers, unscrew the screws
16
and loosen the
screws
17
. Apply several drops of oil on the side edges of the clamp
feet closing levers and to the marked lubrication holes
14
.
4.7. After lubrication it is important to sew a minimum 10 buttonholes
on scrap fabric to dispel any excess oil. Wipe all visible excess oil
from the mechanism in the work area.
4.8. Reassembleallremovedparts,xthefeetplatesagain.
4.9. To lubricate the adjustable cutting length steel, remove the
clamp plates and apply one drop of oil on the screw and on the screw
bearing.
