ADAV4601 System Design Document Confidential Information
Rev.1 August 2009 Analog Devices Page 60
Editing a Cell Previously Defined
Clicking a register, updates the “Cells in current Register” list. It is possible to edit a cell by double-clicking. This will
call the wizard associated to the cell type. The wizard will load the values that the cell had last time it was modified.
For more information about the wizards, refer to The Cell Wizards section.

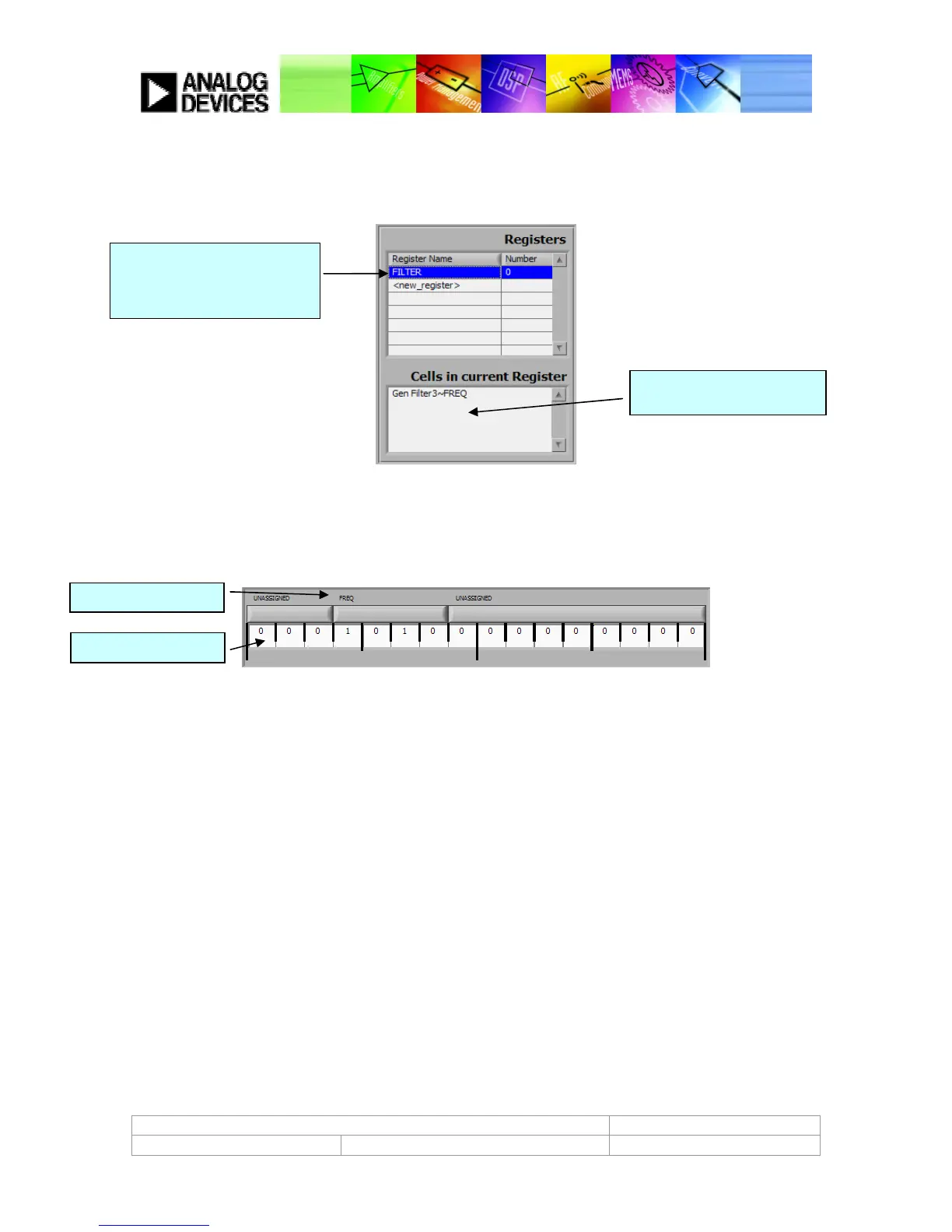

Figure 57: Editing a cell in a register
Register Information
This window displays the current status of a register. It displays the register fields, and the default bit values. A field
named “UNASSIGNED” means the field is unused. Click a register in the Register list and it will display it
automatically.
Figure 58: Register information window
1) Click the register to edit, the
cells present in that register will
load on the window
2) Double Click on the cell to
2) Default bit values
To Next Page
