EVALUATION BOARD DESCRIPTION
The Evaluation board allows the flexible testing of the ADAV4601 audio processor. Both analog and digital I/O can
be handled. The various connectors are listed below.
Table 1 Evaluation Board Connectors
Connector Name Function
J2 7.5V DC Power supply
J3 96-way connector
J6 PWM Outputs
J7 AUXOUT4 Left and Right
J8 AUXIN1 Left and Right
J10 Headphone 1 Output
J12 3 Way Jumper, ADAV4601 Clock Select
J13 AUXOUT1 Left and Right
J18 USB Mini Connector
J20 AUXOUT3 Left and Right
7.5V Power
Supply
SPDIF Out
96 Way Connector
SPDIF In USB
PWM Out
Headphone 1
AUXOUT 3
AUXOUT 4
AUXOUT 1
AUXIN 1
DUT
Mute Switch
Reset Switch
7.5V Power
Supply
SPDIF Out
96 Way Connector
SPDIF In USB
PWM Out
Headphone 1
AUXOUT 3
AUXOUT 4
AUXOUT 1
AUXIN 1
DUT
Mute Switch
Reset Switch

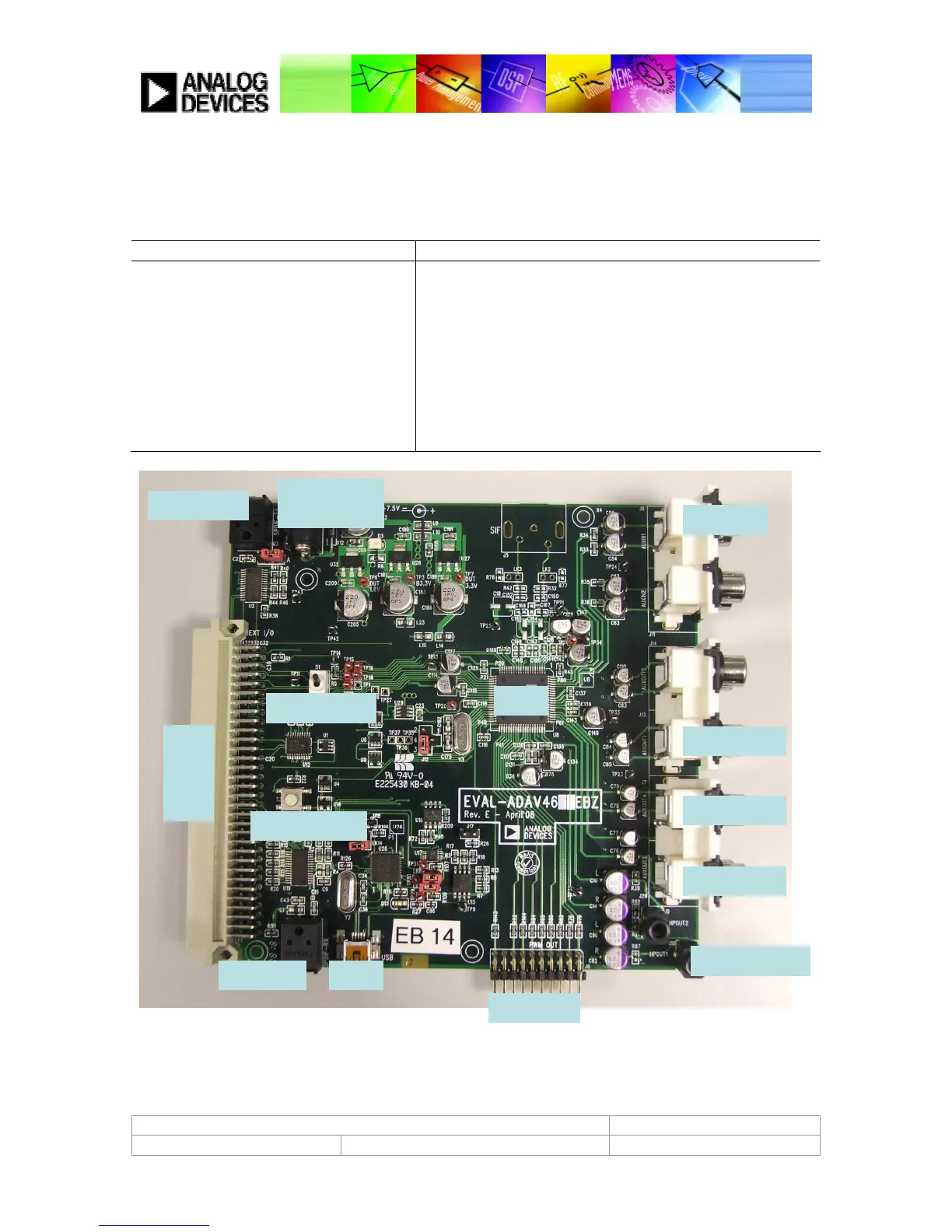

Figure 2: ADAV4601 Rev E Evaluation Board
