Edit Register
From this command the user can edit an already created register. This allows the user to change the register
number, and to shift the register fields within the register. Select one of the registers, and click Edit, which will
launch the register editing window.
To change the register number, enter the new one in the Register Number field. To shift a field, click over it, and
then click over the MSB of the desired destination position. Shifting fields may be useful before adding new fields to
predefined registers.

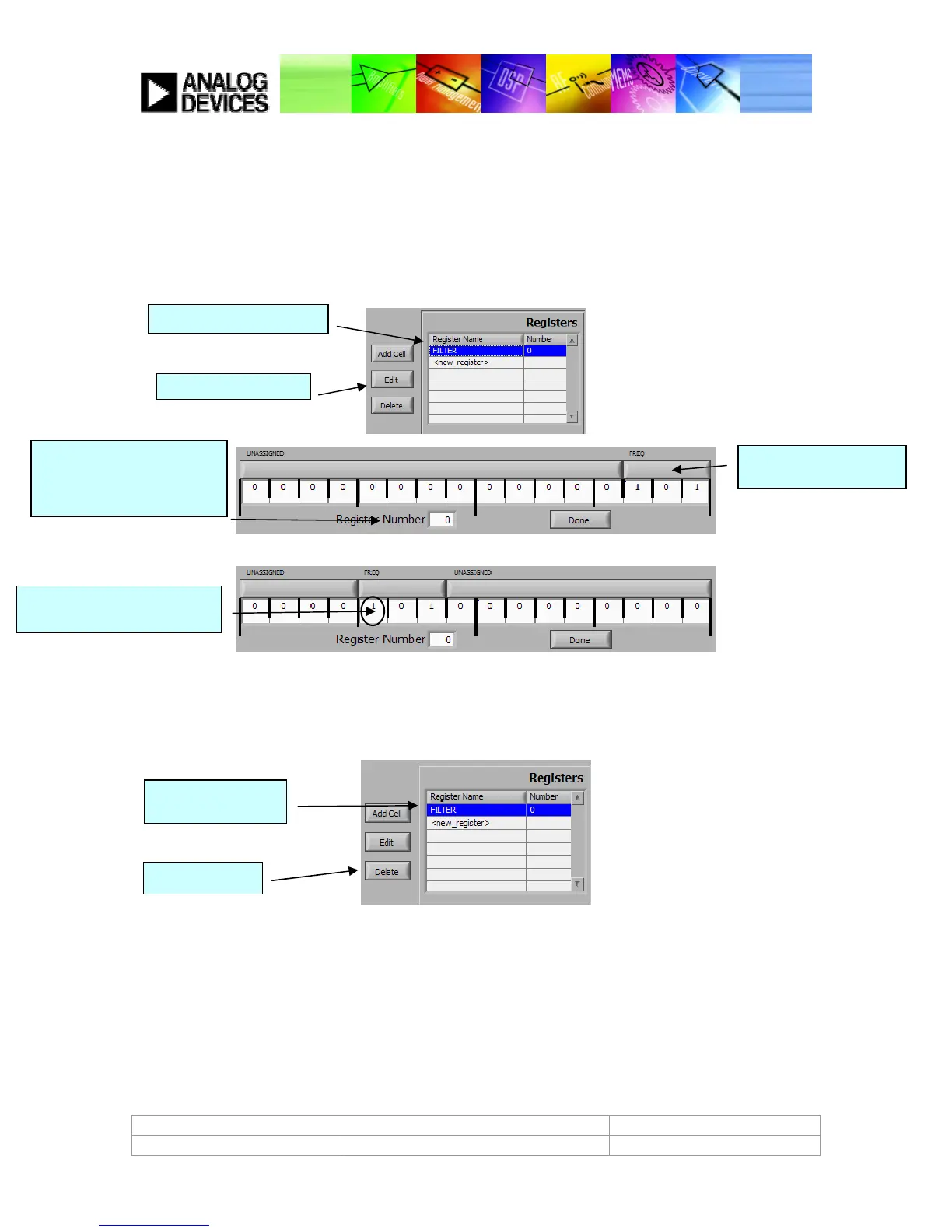

Figure 55: Editing a register
Delete Register
Delete the selected register from the register map. The GUI will ask for confirmation before deleting any register.
Figure 56: Deleting a register
Registers List and Cells in Current Register
These interactive windows control the register map, and the cells that each register controls. Clicking over Registers
list will change the selected register. Each register has a register name, and a register number. The numbers are
automatically assigned (lowest available), and can be changed as described in the last section.
1) Click the Register to edit
2) Click Edit
3) Change the Register
Number, if required. Changes
the location on the register
map
4) Click the field to be
shifted
5) Click over the top bit where
the field will be moved to
1) Click the register
to be deleted
2) Click Delete
